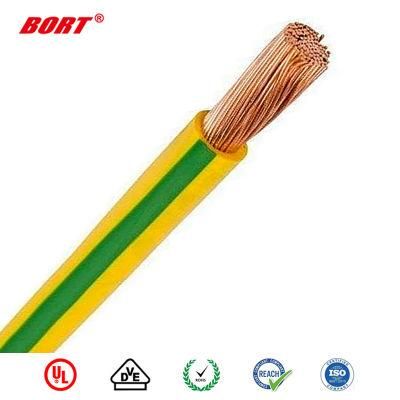

Cables Electrical Copper Cable Txl Sxl Gxl Auto Cable American Automotive Wire
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Electric Wire
- Conductor Material：Copper
- Sheath Material：XLPE
- Insulation Material：XLPE
Base Info
- Model NO.：GXL
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Bort
- Conductor：Stranded, Tinned or Bare Copper Conductor Sample
- Sample：Conventional Sample Free Conductor
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packag
- Company Type：Manufacturer
- Factory Directly：Big Discount with Large Order
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Service：OEM ,ODM
- Transport Package：Rolls
- Specification：610m
- Trademark：BORT
- Origin：China
- HS Code：85444929
- Production Capacity：300, 000km, Year
Description
ConductorFinished product DIELECTRIC
STRENGTH AWG Cross Sectional Area NO.of Cond Dia. Insulation Thick. Outside Thick. mm2 No./mm mm mm mm (VAC1min) 20 0.5 7/0.31 0.93 0.59 2.10 1000.00 18 0.8 16/0.254 1.17 0.62 2.40 1000.00 16 1 26/0.254 1.49 0.61 2.70 1000.00 14 2 19/0.36 1.8 0.68 3.00 1000.00 12 3 19/0.45 2.25 0.88 3.60 1000.00 10 5 19/0.57 2.85 1.08 4.60 1000.00
STRENGTH
