Factory Price LAN Cable FTP CAT6 23AWG

Hangzhou Risun Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid
  • Application：LAN Cable
  • Conductor Material：Cu,CCA
  • Sheath Material：PVC,PE,LSZH
  • Insulation Material：HDPE

Base Info

  • Model NO.：ftp cat6
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, RoHS, ETL,CPR,SGS
  • Brand：Risun or OEM
  • UV, Jelly, Fr：Available
  • Shield：Al,Pet Foil
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Specification：ETL, CE, RoHS, SG, ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation

67%



Technical Performance:



           Attenuation         RL    Next        PS Next         (Mhz)           (dB/100M)        (dB)     (dB)      (dB/100m)            1               2.0         23    74.3          71.8            4               3.8         23    65.3          61.2           10               6.0         23    59.3            53           16               7.6         23    56.2          48.4           20               8.5         23    54.8          46.5         31.2              10.7         23    51.9          41.3         62.5              15.1         23    47.4          31.5         100              19.1         23    44.3          24.1         125              21.3         21    42.8          20.5        155.5              23.8         21    41.4          16.6         175

              25.3

         21    40.7          13.9         200                27         21    39.8          10.8         250              32.6         19    38.3             5

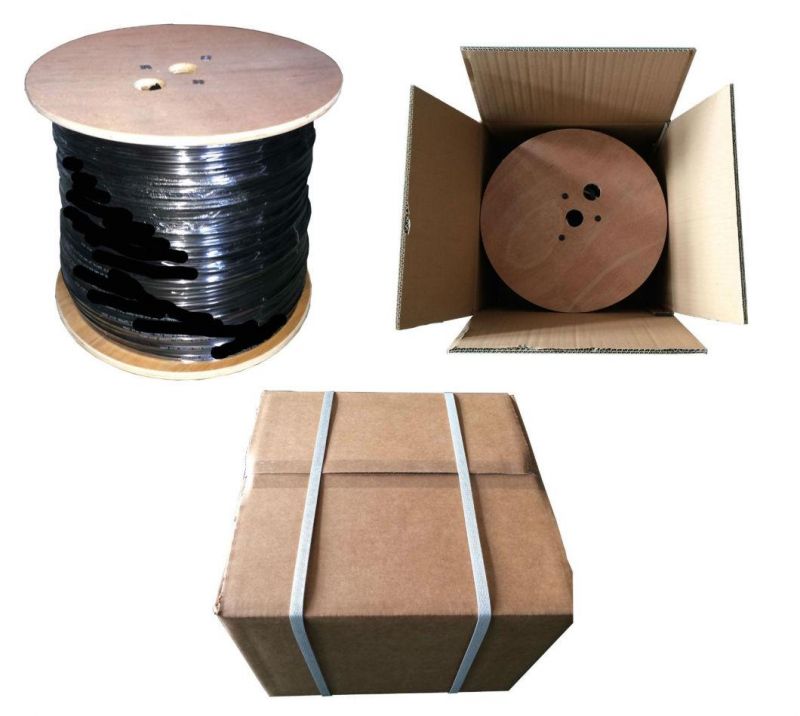

Packing:
Network Cable FTP CAT6 with ETL Ce RoHS ISO 9001

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

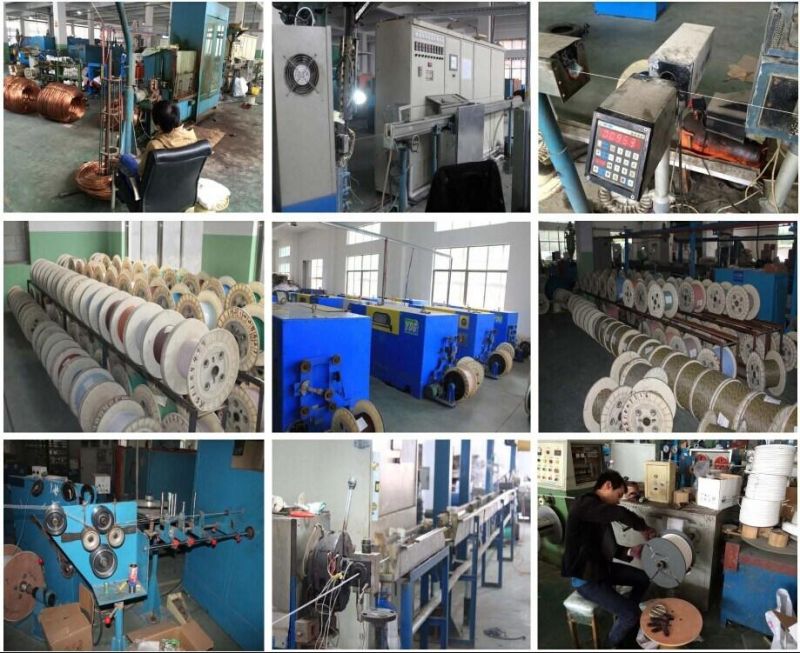

Production line:



Network Cable FTP CAT6 with ETL Ce RoHS ISO 9001

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN



Our Tenet: If we can not be the best, we be the most suitable.
