• Model NO.：N2XOH
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Cable N2xoh
• Brand：Hongda Cable
• Rated Voltage：0.6,1kv
• Conductor Shape：Compact Stranded
• Individual Sheath：Halogen Free Thermoplastic Compound-UV
• Insulating Material：XLPE

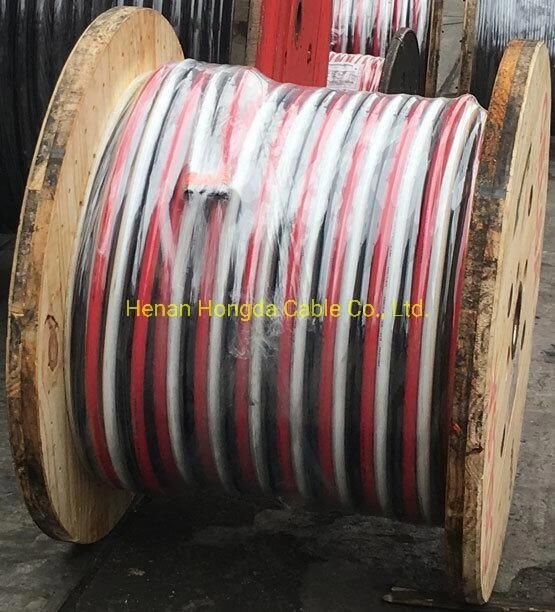

• Transport Package：500m,1000m Per Drum
• Specification：2.5 to 630mm2
• Trademark：Hongda,OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：400km,Month

Conductor materialSoft copper, Class 2 IEC 60228Insulating materialXLPEIndividual sheathHalogen free thermoplastic compound - UVHalogen freeIEC 60754-1

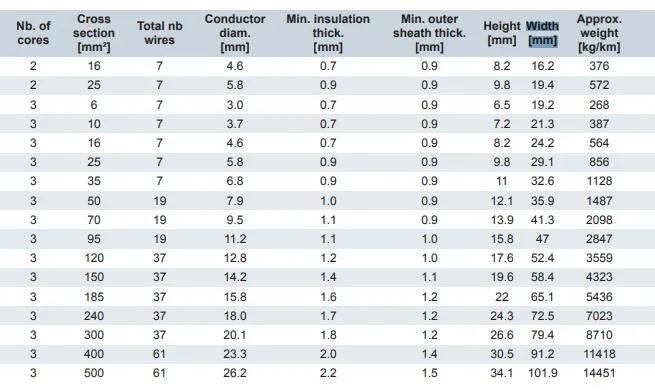

DIMENSIONAL CHARACTERISTICSNo. of coresCross section [mm²]Total no wiresConductor diam. [mm]Min. insulation thick. [mm]Min. outer sheath thick. [mm]Height [mm]Width [mm]Approx. weight [kg/km]21674.60.70.98.216.237622575.80.90.99.819.45723673.00.70.96.519.226831073.70.70.97.221.338731674.60.70.98.224.256432575.80.90.99.829.185633576.80.90.91132.61128350197.91.00.912.135.91487370199.51.10.913.941.320983951911.21.11.015.847284731203712.81.21.017.652.4355931503714.21.41.119.658.4432331853715.81.61.22265.1543632403718.01.71.224.372.5702333003720.11.81.226.679.4871034006123.32.01.430.591.21141835006126.22.21.534.1101.914451

ELECTRICAL CHARACTERISTICSDielectric strength3.5 kVTime of application Dielectric strength core to screen DC5 min.
USE CHARACTERISTICS
Maximum operating temperature 90 ° C
Emergency overload temperature 130 ° C
Maximum temperature of the conductor in short-circuit 250 ° C
