Multi-Conductor 7/0.20 mm 6 Core Screened PVC 300m Alarm Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Stranded
- Wire Core Material：Bare Copper Wire
Base Info
- Certification：CE, ISO, RoHS
- Pairs&Core：6 Cores
- Color：White
- Inner Conductor：24AWG
- Nom. Od：1.2mm
- Export Length：100m,Roll, 305m,Drum
- Screen：Al. Polyester Tape
- Outer Jacket Diameter：5.5mm
- Transport Package：Carton Box, Pallet
- Specification：6 Core 24 AWG Shielded Solid Conductor
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description

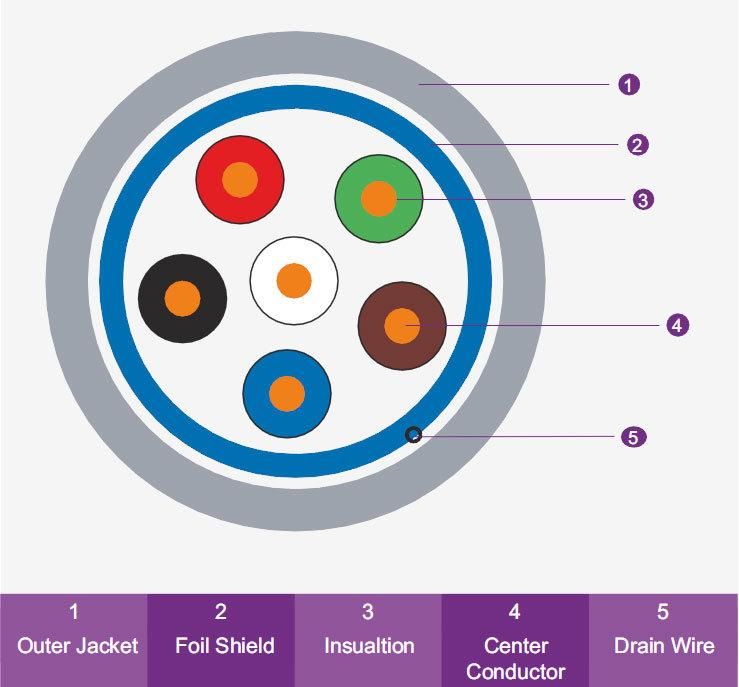

Construction& Physical Characteristics
| Characteristic | Value |
| No.of Conductor | 6 |
| Conductor Size | 24AWG 7*0.20mmTC |
| Insulation Diameter | 1.2mm |
| Drain Wire Size | 7*0.20 mmTC |
| Screen | Al. Polyester Tape |
| Outer Jacket Diameter | 5.5mm |
Mechanical Characteristics
| Operating Temp Range | -15 to 70°C |
| Max. Recommended Pulling Tension | 92N |
| Min Bend Radius (Install) | 55mm |
Electrical Characteristics
| Voltage Rating | ELV |
| Max. Conductor DC Resistance @ 20°C | 95.3Ω/km |
| Min. Insulation Resistance @ 20°C | 50MΩ.km |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Voltage Test: Core to sheath | 3.0 kV ac/1min |
Insulation Colour Code
| Individual Pair | Colour |
| Core 1 | Black |
| Core 2 | Red |
| Core 3 | White |
| Core 4 | Green |
| Core 5 | Brown |
| Core 6 | Blue |
Application:For use in the communications, industrial and security sectors, This product can be used to interconnect DTE equipment such as Printers, fax's, modems, and consoles. In the industrial environment, this product can be used to connect instruments and sensors to data loggers, PLC's and other control equipment. In the security market, this product can be used to connect motion sensors, entry sensors, card readers and door strikes to monitoring units. Not suitable for direct connection to mains equipment.
Company Introduction
Packing:
Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
