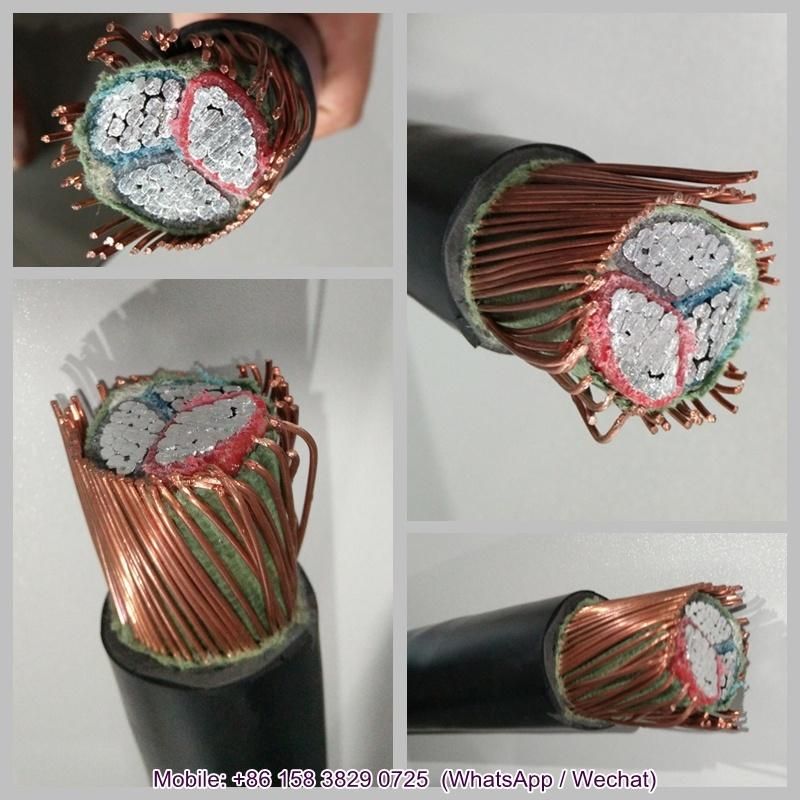

New Zealand 3 Core Copper Neutral Screen Cable AS/NZS 4961
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Neutral Screen Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Neutral Screen Cable
- Brand：Hongda
- Voltage Rating：600,1000V
- Neutral Screen：Plain Annealed Copper Wire
- Temperature Rating：90°c
- Insulation Colour：Red, White, Blue
- Sheath Colour：Black
- Transport Package：Steel & Wooden Drum or Customer Requirement
- Specification：AS,NZS 4961
- Trademark：Hongda, accept OEM
- Origin：China
- HS Code：8544492100
- Production Capacity：10km,Days
Description
- Number of cores
- Conductor cross-section
- Pilot wires
- Nominal overall diameter
- Nominal overall diameter
- Approximate weight
Available Sizes:
Single Core
- 70mm (Product Code: 1x70ALNS)
- 95mm (Product Code: 1x95ALNS)
- 120mm (Product Code: 1x120ALNS)
3 Core
- 35mm (Product Code: 3x35ALNS)
- 50mm (Product Code: 3x50ALNS)
- 70mm (Product Code: 3x70ALNS)
- 950mm (Product Code: 3x95ALNS)
- 120mm (Product Code: 3x120ALNS)
| Number of cores | Conductor cross-section (mm²) | Pilot wires | Nominal overall diameter (mm) | Approximate weight (kg/m) | Max. DC resistance of the conductor at 20°C (Ohm/km) | |
| AL NSCRN XL 3X120+10P | 3 | 120 | 10 mm² | 39.6 | 2.59 | 0.253 |
| AL NSCRN XL 3X185 +10P | 3 | 185 | 10 mm² | 48.5 | 3.79 | 0.164 |
| AL NSCRN XL 3X300 +10P | 3 | 300 | 10 mm² | 57.7 | 5.76 | 0.1 |
| AL NSCRN XL 3X35 | 3 | 35 | None | 28.1 | 1 | 0.868 |
| AL NSCRN XL 3X50 | 3 | 50 | None | 31 | 1.24 | 0.641 |
| AL NSCRN XL 3X70 | 3 | 70 | None | 32.3 | 1.56 | 0.443 |
| AL NSCRN XL 3X95 | 3 | 95 | None | 35.9 | 2.01 | 0.32 |
Other standard and specification can be produce depending on customer require.
PACKAGE AND SHIPPING:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size: As per cable length and container size
Shipping:
Port: Tianjin, Qingdao, Shanghai or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
