• Model NO.：Type K
• Certification：ISO9001, CE, RoHS
• Dia：0.3,0.5,0.8,1.0,1.2,1.6,2.0,2.5,3.2mmm
• Surface：Bright, Oxidized Thermocouple Wire
• Grade：I,II,III
• Tensile Strength：≥390
• Item：Chromel Alumel Thermocouple Wire
• Kp：Chromel
• Kn：Alumel
• Wire Shape：Round,Flat
• Us Name：Tc Wire , K14 Thermocouple Wire
• Brand Name：Type K
• Sample：Small Order Accepted
• OEM：Yes
• Stock：Syen
• Transport Package：Wooden Cases or Cartons
• Specification：Diameter 0.03mm-4mm
• Trademark：HUONA
• Origin：Shanghai
• HS Code：7505220000
• Production Capacity：20000m,Year

Basic Info.

Model NO. Type K Certification ISO9001, CE, RoHS Dia 0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm Surface Bright/ Oxidized Thermocouple Wire Grade I/II/III Tensile Strength ≥390 Item Chromel Alumel Thermocouple Wire Kp Chromel Kn Alumel Wire Shape Round/Flat Us Name Tc Wire / K14 Thermocouple Wire Brand Name Type K Sample Small Order Accepted OEM Yes Stock Syen Transport Package Wooden Cases or Cartons Specification Diameter 0.03mm-4mm Trademark HUONA Origin Shanghai HS Code 7505220000 Production Capacity 20000m/Year

Product Description

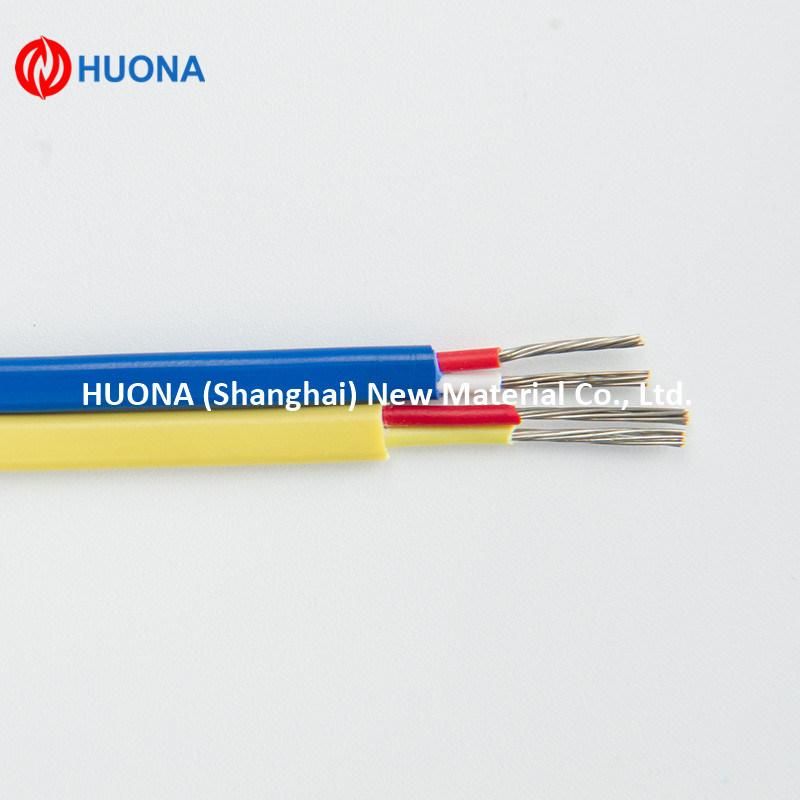

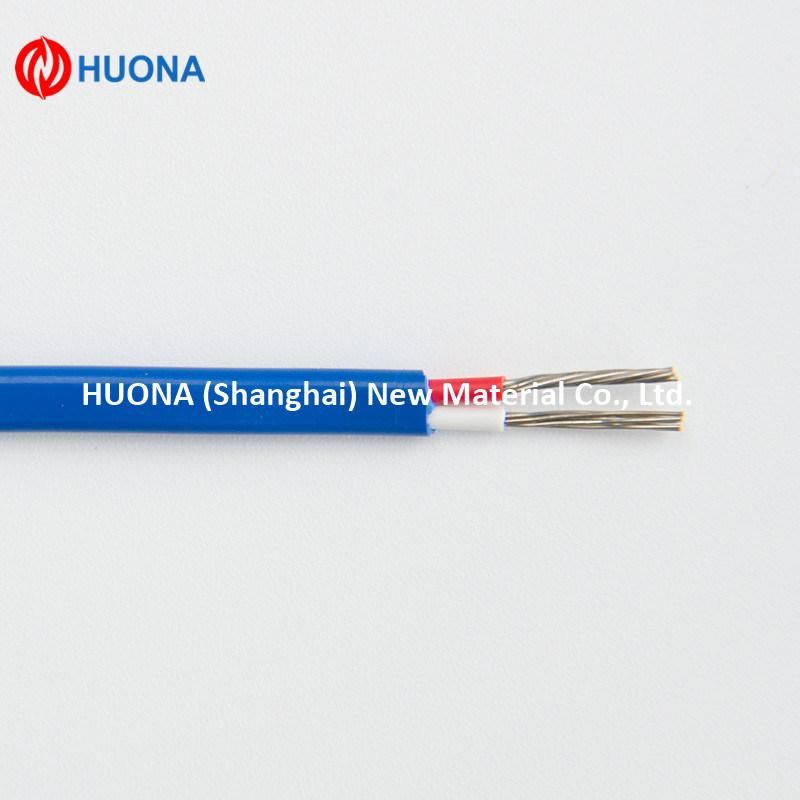

K Type Thermocouple Compensation Wire with Metal Shielded Temperature Measuring Cable

HUONA produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.

The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different.

Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB  compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X:  Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C:  Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.
