• Model NO.：UTP Cat5e Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Model：Cat5e
• Brand：Risun or OEM
• Transport Package：305m,Pull Box, 2boxes,CTN
• Trademark：Risun or OEM
• Origin：China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. UTP Cat5e Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, ETL SGS CPR Model Cat5e Brand Risun or OEM Transport Package 305m/Pull Box, 2boxes/CTN Trademark Risun or OEM Origin China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

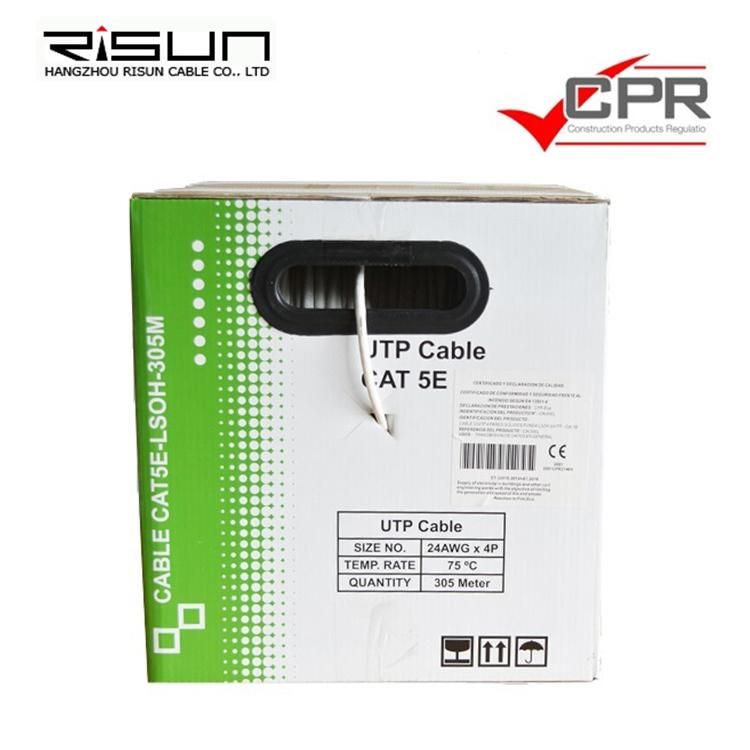

UTP Cat5e Stranded Copper 305m /Reel lan  Cable

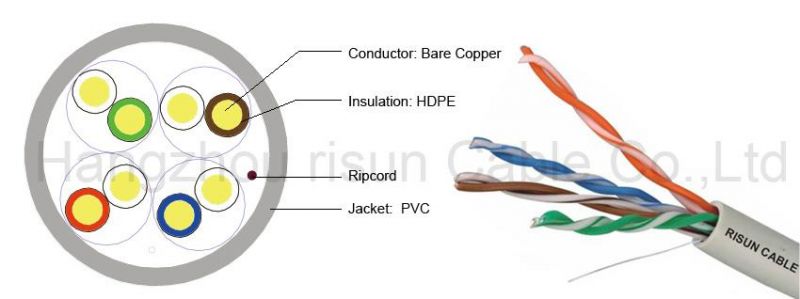

construction:

conductor	7/0.2±0.015mm Cu
insulation	hdpe 0.90±0.02mm
sheath	5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	8/4

mechanical properties:

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

electrical properties:

resistance	max. 9.38 ohm/100m
resistance unbalance	max. 2%
insulation resistance	150 ohm/km
mutual capacitance	max. 5600pf/100m
capacitance unbalance	max. 330pf/100m
impedance	100+/-15 ohm
spark test	2000v
velocity of propagation	67%

Risun Cable is specialized in producing UTP Cat5e, UTP Cat6, FTP Cat5e, FTP Cat6, Telephone Cable, Alarm Cable and Coaxial Cables.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.


Risun Introduction:

Application & Certification
  Welcome to RISUN,we will be happy to serve you!
