15kv 25kv 35kv Mv Aerial 3 Layer ACSR Spacer Cable Tree Wire
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：Crosslinking
- Material Shape：Round Wire
Base Info
- Model NO.：tree wire
- Wire Core Material：AAC, AAAC, ACSR
- Certification：ISO, CCC
- Model：Tree Wire
- Brand：Hongda Cable
- Useful：Fixed Installations, Preferably in Cable Ducts, in
- Transport Package：Steel & Wooden Drum
- Specification：1 core
- Trademark：Hongda cable, oem
- Origin：China
- HS Code：8544492100
- Production Capacity：200km,Week
Description
Basic Info.
Model NO. tree wire Wire Core Material AAC, AAAC, ACSR Certification ISO, CCC Model Tree Wire Brand Hongda Cable Useful Fixed Installations, Preferably in Cable Ducts, in Transport Package Steel & Wooden Drum Specification 1 core Trademark Hongda cable, oem Origin China HS Code 8544492100 Production Capacity 200km/WeekProduct Description

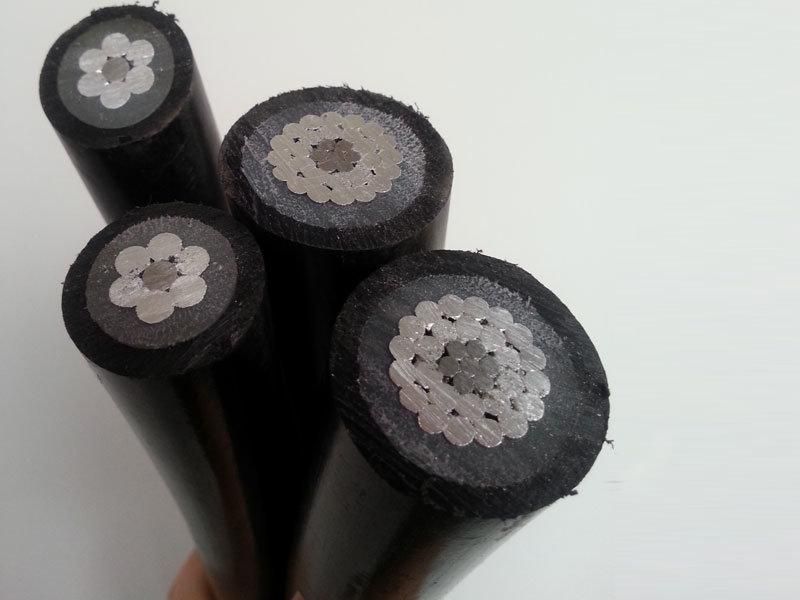

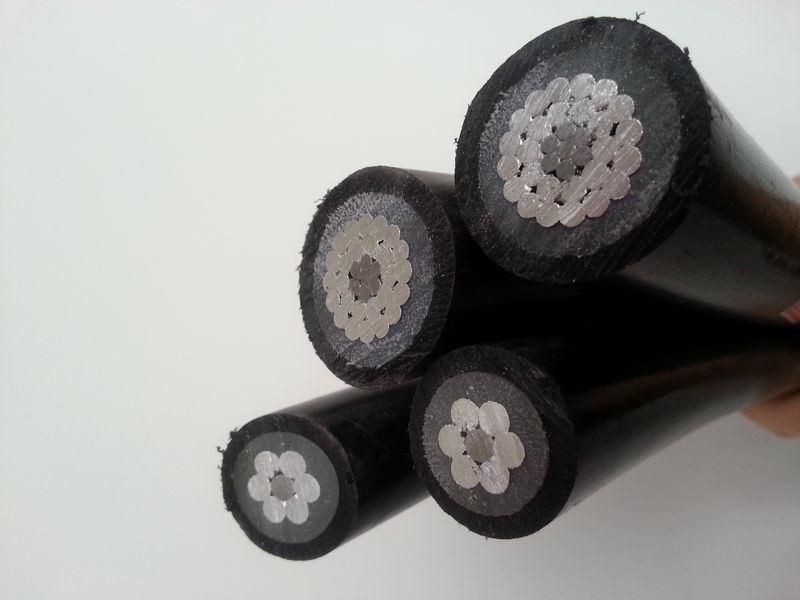

15kv 25kv 35kV MV Aerial 3 Layer ACSR Spacer Cable Tree WireApplication
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
Construction
Conductors are concentric strand AAC (1350-H19), AAAC (either compressed or full compact depending on conductor size) or ACSR. The conductor shield shall be an extruded back semiconductor polymer meeting the physical requirements of ICEA S-61-402. Available with track-resistant high-density polyethylene (TR-HDPE) per ASTM D1248 or Track-Resistant Cross-linked Polyethylene (TK-XLPE) covering per ASTM D2656 and ICEA S-66-524. The minimum thickness of each layer at any point shall not be less than listed in the data table. The outer layer shall contain a carbon black additive, not less than 0.02% to provide the weather resistance, and track resistance.
NOTES:
Full hardware solution is available, including spacers, brackets, installation tools and hardware. Please consult with HONGDA CABLE for more information.
| Item # | Size (AWG or kcmil) | Stranding | Conductor Diameter (mils) | Covering Thickness Conductor Shield (mils) | Covering Thickness Inner Layer (mils) | Covering Thickness Outer Layer (mils) | Cable O.D. (mils) | Rated Strength (lbs) | Weight (lb/MFT) |
|---|---|---|---|---|---|---|---|---|---|
| TW35-3-ACSR-1/0-6/1 | 1/0 | 6/1 | 398 | 15 | 175 | 125 | 1028 | 4161 | 448 |
| TW35-3-ACSR-2/0-6/1 | 2/0 | 6/1 | 447 | 15 | 175 | 125 | 1077 | 5045 | 509 |
| TW35-3-ACSR-4/0-6/1 | 4/0 | 6/1 | 563 | 15 | 175 | 125 | 1193 | 7933 | 673 |
| TW35-3-ACSR-266.8-18/1 | 266.8 | 18/1 | 609 | 15 | 175 | 125 | 1239 | 6536 | 684 |
| TW35-3-ACSR-266.8-26/7 | 266.8 | 26/7 | 642 | 15 | 175 | 125 | 1272 | 10735 | 770 |
| TW35-3-ACSR-336.4-18/1 | 336.4 | 18/1 | 684 | 15 | 175 | 125 | 1314 | 8246 | 794 |
| TW35-3-ACSR-336.4-26/7 | 336.4 | 26/7 | 720 | 15 | 175 | 125 | 1350 | 13395 | 901 |
| TW35-3-ACSR-336.4-30/7 | 336.4 | 30/7 | 741 | 15 | 175 | 125 | 1371 | 16435 | 1170 |
| TW35-3-ACSR-397.5-18/1 | 397.5 | 18/1 | 743 | 15 | 175 | 125 | 1373 | 9443 | 889 |
| TW35-3-ACSR-397.5-24/7 | 397.5 | 24/7 | 772 | 15 | 175 | 125 | 1402 | 13870 | 949 |
| TW35-3-ACSR-397.5-26/7 | 397.5 | 26/7 | 783 | 15 | 175 | 125 | 1413 | 15485 | 1013 |
| TW35-3-ACSR-477-24/7 | 477 | 24/7 | 846 | 20 | 175 | 125 | 1486 | 16340 | 1091 |
| TW35-3-ACSR-477-26/7 | 477 | 26/7 | 858 | 20 | 175 | 125 | 1498 | 18525 | 1168 |
| TW35-3-ACSR-477-30/7 | 477 | 30/7 | 883 | 20 | 175 | 125 | 1523 | 22610 | 1552 |
| TW35-3-ACSR-556.5-18/1 | 556.5 | 18/1 | 879 | 20 | 175 | 125 | 1519 | 13015 | 1138 |
| TW35-3-ACSR-556.5-24/7 | 556.5 | 24/7 | 914 | 20 | 175 | 125 | 1554 | 18810 | 1220 |
| TW35-3-ACSR-556.5-26/7 | 556.5 | 26/7 | 927 | 20 | 175 | 125 | 1567 | 21470 | 1309 |
| TW35-3-ACSR-636-18/1 | 636 | 18/1 | 940 | 20 | 175 | 125 | 1580 | 14915 | 1637 |
| TW35-3-ACSR-636-26/7 | 636 | 26/7 | 990 | 20 | 175 | 125 | 1630 | 23940 | 1826 |
| TW35-3-ACSR-795-26/7 | 795 | 26/7 | 1107 | 20 | 175 | 125 | 1747 | 29925 | 2146 |
| TW35-3-ACSR-795-45/7 | 795 | 45/7 | 1063 | 20 | 175 | 125 | 1703 | 20995 | 1892 |
