3 Pair 18 AWG Unshielded Paired Instrumentation, Audio& Control Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Bus Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Color：White and Grey
- Inner Conductor：18AWG
- Nom. Thick：1.58mm
- Export Length：100m,Roll, 305m,Drum
- Pairs&Core：3pairs
- Jacket Thickness：0.45mm
- Outer Jacket Diameter：6.70mm
- Transport Package：Carton Box, Pallet
- Specification：3 Pair 18 AWGUnshielded Paired Instrumentation, Au
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description

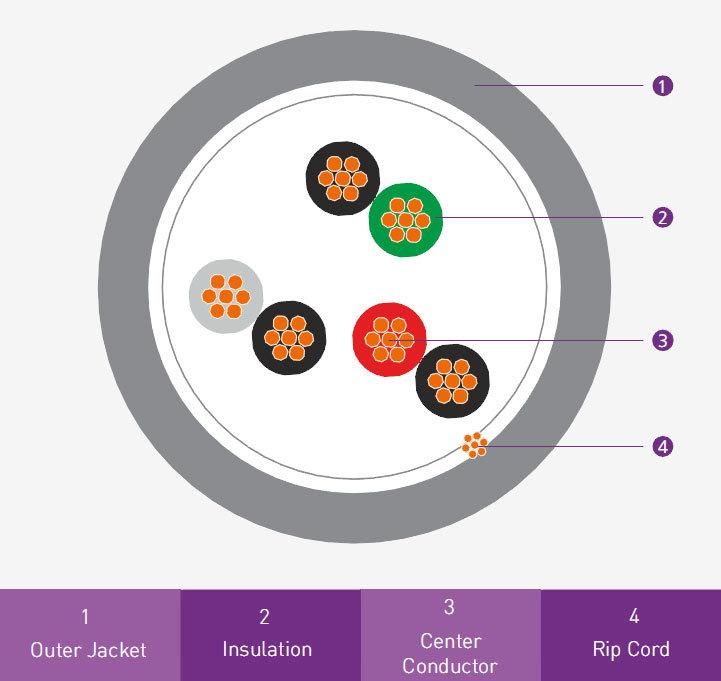

Construction& Physical Characteristics
| Characteristic | Value |
| No.of Pair | 3 |
| Conductor Size | 18AWG ,7*26AWG(0.4mm) |
| Insulation Thickness | 0.18mm |
| Insulation Diameter | 1.58 ± 0.05 mm |
| Jacket Thickness | 0.45 ± 0.05 mm |
| Outer Jacket Diameter | 6.70± 0.5mm |
| Max. Recommended Pulling Tension | 598 N |
| Min. Bending Radius Minor Axis | 53.6 mm |
| Operating Temperature | -10ºC to +60ºC |
Electrical Characteristics
| Characteristic | Unit | Value |
| Nom. Capacitance Cond. to Cond. | Ω | 95.3 |
| Nom. Conductor DC Resistance @ 20ºC | Ω/Km | 21.5 |
| Nom. Capacitance Cond. to Other Cond.& shield | pF/m | 172.0 |
| Max. Recommended Current @ 25ºC | Amps | 3.5 |
| Maximum Operating Voltage | Vrms | 300 |
| Characteristic | Value |
| Test Material | PVC and LSZH |
| Before Tensile Strength (Mpa) | ≥ 13.8 |
| Aging Elongation (%) | ≥ 100 |
| After Tensile Strength (Mpa) | ≥ 10.35 |
| Aging Elongation (%) | ≥ 75 |
| Cold Bend (-20±°C x 4 hrs) | No Crack |
Insulation Colour Code
| Individual Pair | Colour |
| Pair 1 | Black /Red |
| Pair 2 | Black /White |
| Pair 3 | Black /Green |
Application:
Company Introduction
Packing:
Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
