• Model NO.：ADSS 80M
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Fcj Opto Tech
• Sheath Material：PE,MDPE,Lzsh
• Model No.：ADSS 80m
• Color：Black
• Delivery Time：Around 10 Days
• Transport Package：Wooden Drum
• Specification：*
• Trademark：FCJ OPTO TECH
• Origin：China
• HS Code：8536700000
• Production Capacity：8000km,Month

Basic Info.

Model NO. ADSS 80M Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Fcj Opto Tech Sheath Material PE/MDPE/Lzsh Model No. ADSS 80m Color Black Delivery Time Around 10 Days Transport Package Wooden Drum Specification * Trademark FCJ OPTO TECH Origin China HS Code 8536700000 Production Capacity 8000km/Month

Product Description

China Factory All Dielectic Self Supporting Outdoor Aerial Fiber Optic Cable Aramid Yarn 80m Span 24core 48core 96core ADSS

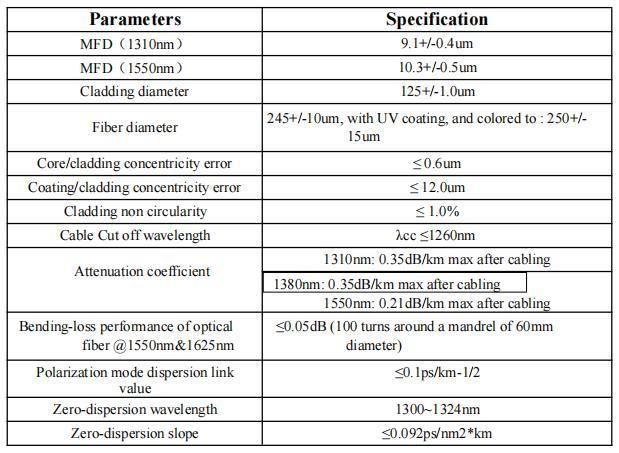

1.0 General         1.1 Reference          The cable are designed, manufactured and tested according to the standardsas follows:         ITU-T G.652D          Characteristics of a single-mode optical fibre          IEC60794-1-1                Optical fibre cables-part 1-1: Generic specification-General          IEC60794-1-2                Optical fibre cables-part 1-2: Generic specification-Basic optical cable test procedure          IEC60794-3                   Optical fibre cables-part 3: Sectional specification-Outdoor cables          IEC 60794-4-20             Aerial optical cables along electrical power lines - family specification for ADSS (All Dielectric Self Supported) optical cables        1.2 Life Time          Optical fibre cables supplied in compliance with this specifications is capable to withstand the typical service condition for a period of twenty-five years                   without detriment to the operation characteristics of  the cable. 2.0 OpticalFiber Optical Fibres supplied in this specification meet the requirements of  ITU-T G.652D

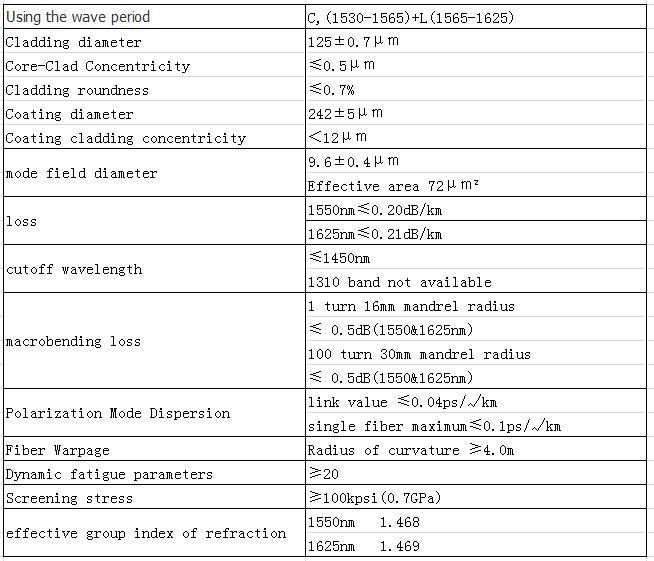

Optical Fibres supplied in this specification meet the requirements of  ITU-T G.655

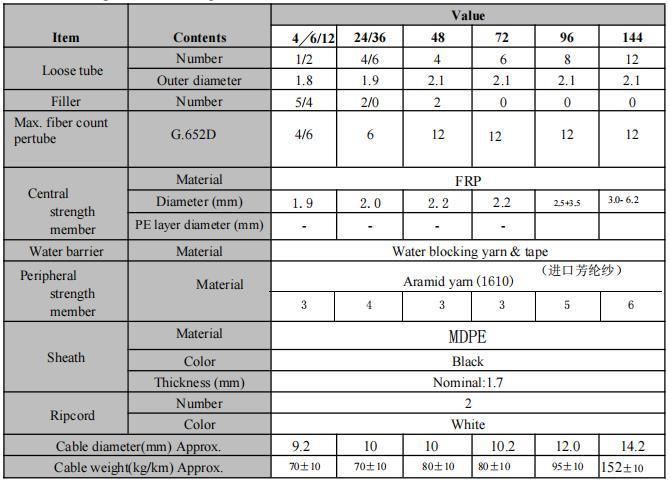

 2.1 Dimensions and Descriptions The standard structure of the cable is shown in the following table, other structure and fibre count are also available according to customer requirements.

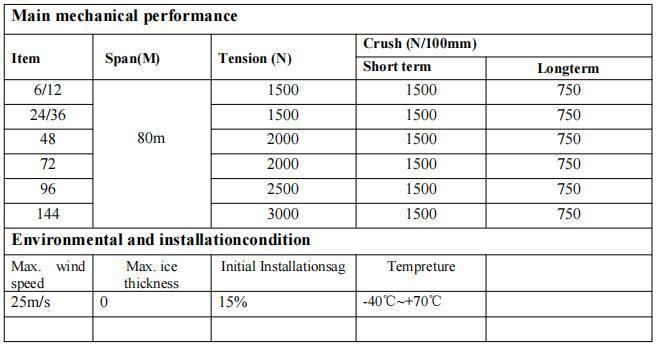

2.2 Main Mechanical and Environmental Performance

4. Packaging and Drum      4.1 Cable Sheath Marking      Unless otherwise specified, the cable sheath marking shall be as follows: Outer sheath marking legend can be changed according to user's requests.     4.2 Reel Length      Standard reel length: 4 km/reel, other length is also available      4.3 Cable Drum       The cables are packed in fumigated wooden drum      4.4 Cable Packing       Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage. The inner end is available for testing
5.Application
