0.6/1kv Aluminum Core XLPE Insulated Aerial Twisted Bundle ABC Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Construction, Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Brand：Dayuan
- Transport Package：Use The Drum, We Can Make as Customer Requirement
- Specification：we can make as customer requirement
- Trademark：DAYUAN
- Origin：China
- HS Code：85444929
- Production Capacity：10000 Meters,Day
Description
codeRated Voltage Type ABC

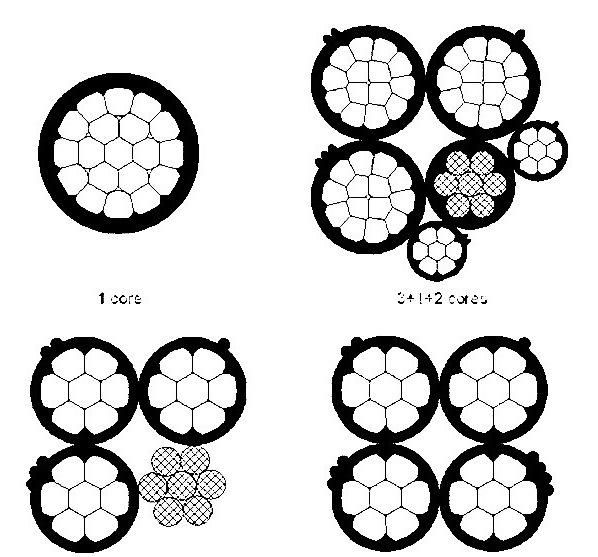

AWG or kcmilStructure Neutral Wire (ACSR) Phase Wire Cable Cable Steel Aluminium Conductor Aluminium Dia Dia Dia kg/km No. Dia No. Dia Dia No. Dia mm Morochuca 3*6AWG+1*6AWG 1 1.68 6 1.68 5.04 1 4.11 4.11 1.14 6.40 14.62 221 Chola 3*6AWG+1*6AWG 1 1.68 6 1.68 5.04 7 1.55 4.66 1.14 6.95 15.62 227 Morgan 3*4AWG+1*4AWG 1 2.12 6 2.12 6.36 1 5.19 5.19 1.14 7.48 17.37 331 Hackney 3*4AWG+1*4AWG 1 2.12 6 2.12 6.36 7 1.96 5.88 1.14 8.17 18.62 338 Palomino 3*2AWG+1*2AWG 1 2.67 6 2.67 8.02 7 2.47 7.42 1.14 9.71 22.41 511 Costena 3*1/0AWG+1*1/0AWG 1 3.37 6 3.37 10.11 19 1.89 9.47 1.52 12.52 28.77 824 Grullo 3*2/0AWG+1*2/0AWG 1 3.78 6 3.78 11.35 19 2.13 10.63 1.52 13.68 31.61 1015 Suffolk 3*3/0AWG+1*3/0AWG 1 4.25 6 4.25 12.74 19 2.39 11.94 1.52 14.99 34.82 1254 Appaloosa 3*4/0AWG+1*4/0AWG 1 4.77 6 4.77 14.31 19 2.68 13.40 1.52 16.45 38.42 1554 Broneo 3*336.4+1*336.4 1 3.47 18 3.47 17.36 19 3.38 16.90 2.03 20.96 48.43 2321 Gelding 3*336.4+1*4/0AWG 1 4.77 6 4.77 14.31 19 3.38 16.90 2.03 20.96 46.59 2221

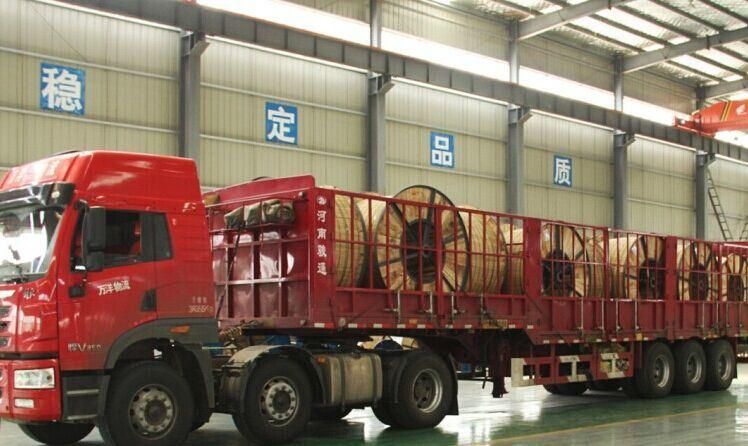

Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

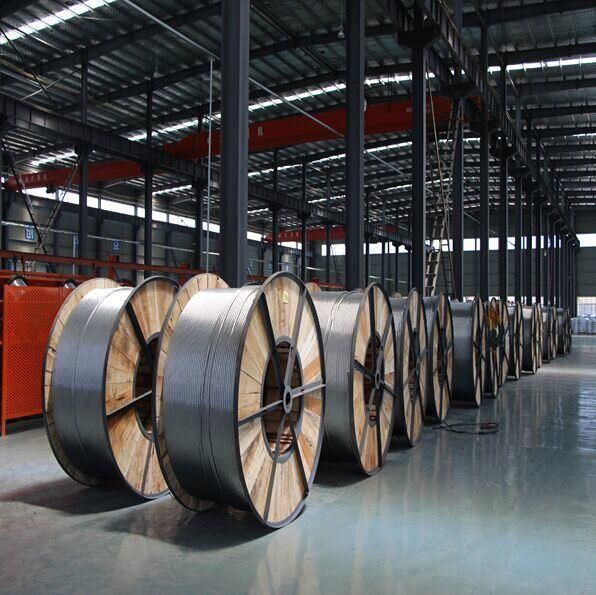

3)Treated wooden/steel-wooden drums for big diameter cables.
