Halogen-Free Low Smoke Shipboard Instrumentation, Control and Telecommunications Cables

Guang Dong Line Giant Cable Co., Ltd.
  • Application:Shipboard
  • Voltage:Low and Medium Voltage Cable
  • Current:DC & AC
  • Insulation Material:XLPE
  • Sheath Material:Thermoplastic Halogen-Free Compound
  • Material Shape:Round Wire

Base Info

  • Model NO.:NTKOXSekw 150,250V (300V)
  • Wire Core Material:Bare Copper Wire
  • Certification:ISO, CCC, CE, RoHS, IEC, En, BS
  • Model:Ntkoxsekw
  • Brand:Nandian
  • No. of Core:1-37
  • Transport Package:Wooden Drum
  • Specification:1, 1.5, 2.5, 4-300mm2
  • Trademark:NANDIAN
  • Origin:Guangzhou China
  • HS Code:8544492100

Description

Basic Info.

Model NO. NTKOXSekw 150/250V (300V) Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, IEC, En, BS Model Ntkoxsekw Brand Nandian No. of Core 1-37 Transport Package Wooden Drum Specification 1, 1.5, 2.5, 4-300mm2 Trademark NANDIAN Origin Guangzhou China HS Code 8544492100

Product Description

Halogen-free refractory shipboard power cables

STANDARDS: IEC 60092-376
CONSTRUCTION:
Conductors: circular stranded copper class 2 acc. to IEC 60228
Insulation: cross-linked polyethylene HF-XLPE 90ºC acc. to IEC 60092-351
Inner covering: tape
Armour (screen): copper wire braiding with the metallic contact with a copper drain wire
Sheath:thermoplastic halogen-free compound type SHF1 acc.to IEC 60092-359
Colour of sheath:grey or black
Pair identification:Core a: blue
                          Core b: white
Triple identification:Core a: blue
                          Core b: white
                          Core c: red
   With printed pair or triple number or coloured cores
Pair identification:starting pair:red, white
                         reference pair: blue, white
                         uneven pair:black, white
                         even pair:yellow, white

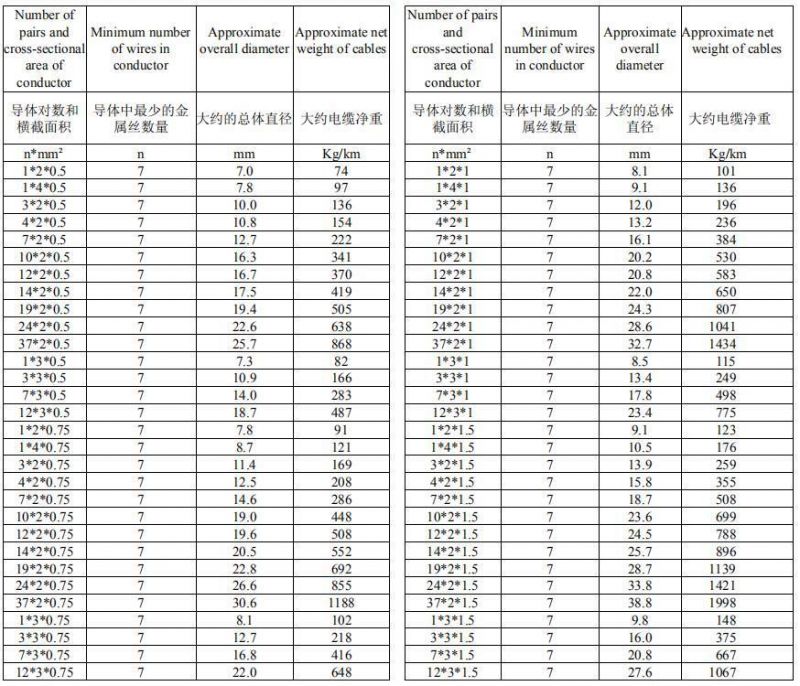

TECHNICAL DATA:
Maximum conductor operating temperature: +90ºC
Lowest ambient temperature for fixed installation:-40ºC
Lowest installation temperature:- 15ºC
Minimum bending radius: 6*D(D is the overall diameter of the cable )
Flame retardant:
IEC 60332-3-22 Category A
Smoke emission: IEC 61034-1-2
Gases evolved during combustion:
IEC 60754-1: <5mg/g acid gas
IEC 60754-2: pH>= 4.3; conductivity<=10µs/mm
Application: Cables are designed for interconnection of all sorts of instrumentation and communication
including that telephone equipment whose proper functioning is necessary for the safety of the ship.
