0.6/1kv Yjv Underground Steel Wire Armored Power Cable

Hebei Huatong Wires & Cables Group Co., Ltd.
  • Application：Transmission
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：YJV32, VV32
  • Wire Core Material：Red Copper Wire
  • Certification：IEC GB
  • Model：PVC Cables
  • Name：PVC Cable
  • Cross Section：1.5mm-800mm2
  • Rated Voltage：0.6,1kv
  • Cores：1, 2, 3, 4, 5, 3+2, 4+1, 3+1 Cores
  • Standard：IEC60502
  • Armored：Steel Wire Armored
  • Transport Package：Steel-Wooden Drum, Steel Drum
  • Specification：IEC GB
  • Trademark：RNEDA
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1000000m,Month

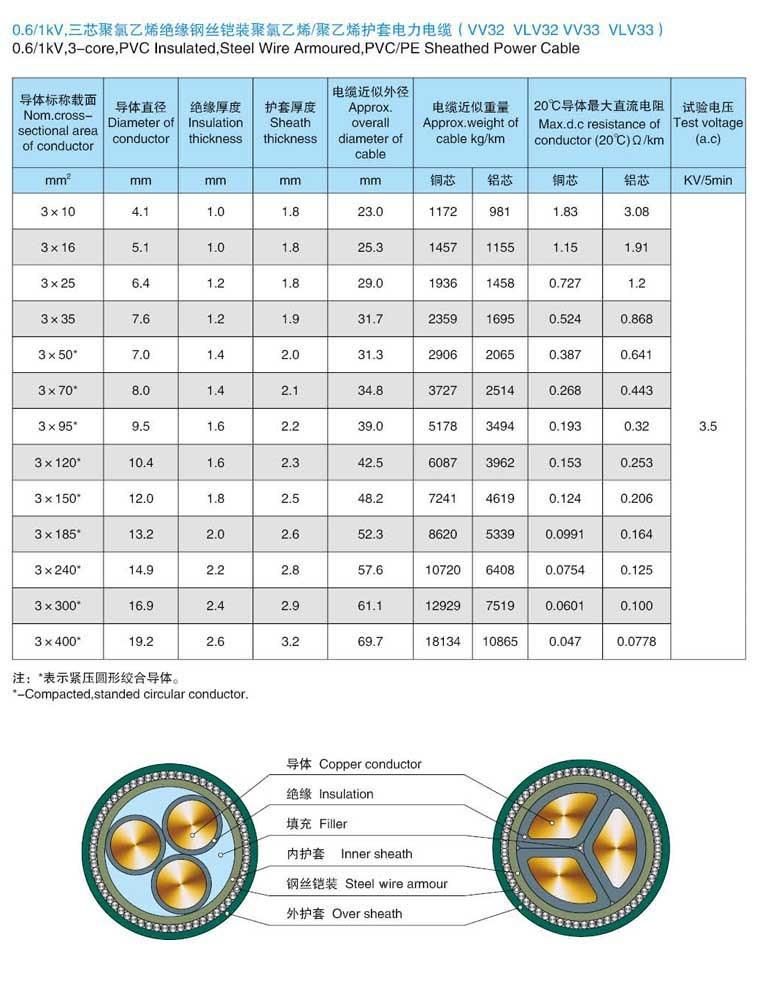

Description

Nominal
Cross
Section
(mm2) at 20ºC,DC resistance is
not more than (Ω/km)Nominal
Cross
Section
(mm2) at 20ºC,DC resistance is
not more than (Ω/km)Nominal
Cross
Section
(mm2) at 20ºC,DC resistance is
not more than (Ω/km)Copper CoreAluminum CoreCopper CoreAluminum CoreCopper CoreAluminum Core1.512.118.1350.5240.8682400.07540.1252.57.4112.1500.3870.6413000.06010.10044.617.41700.2680.4434000.04700.077863.084.61950.1930.3205000.03660.0605101.833.081200.1530.2536300.02830.0469161.151.911500.1240.2068000.02210.0369250.7271.201850.09910.16410000.01760.0291

PVC insulated CableXLPE insulated Power Cable0.6/1KV3.6/6KVvolume resistivity (ρΩ.cm)
min.at 20ºC
at top rated temperature min.1013
10101014
1011-
1012Ki insulation resistivity constant(MΩ.km)
min.at 20ºC
at top rated temperature min.36.7
0.037 367
0.37 -
3.67
3.5 insulation resistance

UO/U(KV)Us(KV)T(min
0.6/13.55
3.6/612.55

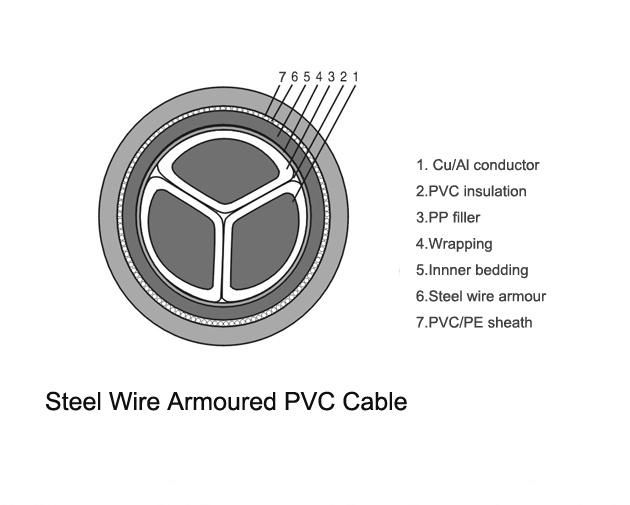

0.6/1kv Yjv Underground Steel Wire Armored Power Cable

0.6/1kv Yjv Underground Steel Wire Armored Power Cable

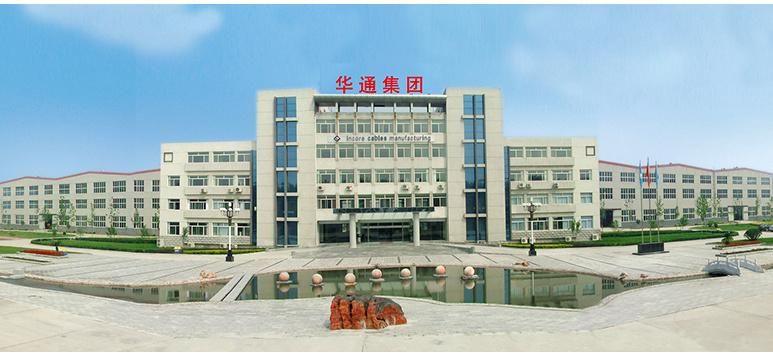

Company information:

Year Established 1993
Business Type Manufacturer
Number of Employees More than 800
Factory Size 220,000 mm2

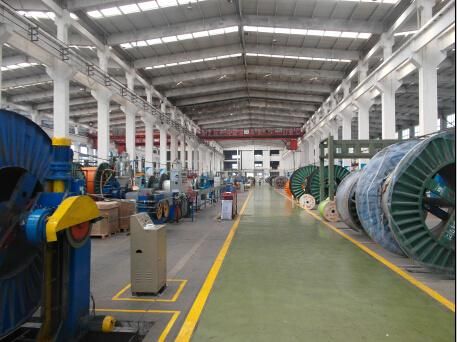

manufacturing equipment  More than 420 set
testing equipment  More than 250 set
Main Products XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive-vehicle cables, elevator cable,shipboard cable, nuclear station cables, pre-fabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
Main Market North America,Europe,Southeast Asia,South Asia,Eastern Asia,South America,Middle East,Oceania
Contact Manufacturing OEM Service Offered, Design Service Offered, Buyer Label Offered

0.6/1kv Yjv Underground Steel Wire Armored Power Cable0.6/1kv Yjv Underground Steel Wire Armored Power Cable

Certification:


Our service:

1. 22 years production experience and 13 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

6.professional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample

10.We can do that you expect.
