• Model NO.：YFFB
• Certification：ISO9001
• Rated Voltage：≤ 1.5mm: 300,500V ≥ 1.5mm: 450,750V
• Test Voltage：≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
• Temperature Range：-15ºC to +80ºC
• Transport Package：Carton
• Trademark：NANTE
• Origin：China
• Production Capacity：100000 Sets Per Year

Basic Info.

Model NO. YFFB Certification ISO9001 Rated Voltage ≤ 1.5mm: 300/500V ≥ 1.5mm: 450/750V Test Voltage ≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V Temperature Range -15ºC to +80ºC Transport Package Carton Trademark NANTE Origin China Production Capacity 100000 Sets Per Year

Product Description

Applications:

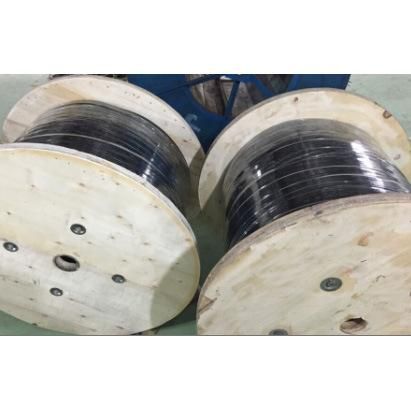

     YFFB Series Cable is special designed for frequent motion and flexing.  This cable
can be used for festoon systems, power tracks, cable tenders, cranes and hoists.

Feature:
Sheath: Special polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame
resistance and self-extinguishing.
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special polychloreprene (Butadiene-Acrylonitrile Rubber)

Technical data:
Rated voltage: ≤1.5mm2 300/500V     >1.5mm2:  450V/750V
Test voltage:   ≤1.5mm2 2500V          >1.5mm2:  3000V
Temperature range: -20°C to +80°C


Model	Qty of Cores	Section of Cores mm2	Width of Cable mm	Thickness of Cable mm	Weight kg/km
YFFB	4	1.5	16.3	5.8	198.4
YFFB	4	2.5	18.7	6.6	268.4
YFFB	4	4	21.9	7.3	367.7
YFFB	4	6	26.9	8.0	507.6
YFFB	4	10	34.5	9.7	784.1
YFFB	4	16	38.5	10.7	1074
YFFB	4	25	47	12.8	1575
YFFB	4	35	56.6	15.2	2245
YFFB	6	1.5	23.3	5.8	282.8
YFFB	6	2.5	26.9	6.6	386.5
YFFB	6	4	31.7	7.3	534.2
YFFB	6	6	38.7	8.0	737
YFFB	6	10	50.1	9.7	1148
YFFB	6	16	56.1	10.7	1580
YFFB	6	25	68.6	12.8	2322
YFFB	6	35	82.6	15.2	3311
YFFB	8	1.5	29.3	5.8	358.8
YFFB	8	2.5	36	6.6	513.3
YFFB	8	4	40.5	7.3	690
YFFB	8	6	48.9	8.0	947.7
YFFB	8	10	63.9	9.7	1486
YFFB	8	16	71.9	10.7	2057
YFFB	8	25	88.2	12.8	3031
YFFB	10	1.5	35.3	5.8	434.7
YFFB	10	2.5	41.3	6.6	603.3
YFFB	10	4	49.3	7.3	845.9
YFFB	10	6	59.1	8.0	1158
YFFB	10	10	77.7	9.7	1824
YFFB	10	16	87.7	10.7	2535
YFFB	12	1.5	41.3	5.8	51.7
YFFB	12	2.5	48.5	6.6	711.8
YFFB	16	1.0	47.1	4.8	475.5
YFFB	16	1.5	54.3	5.8	671
YFFB	16	2.5	63.9	6.6	838.3
YFFB	20	1.0	58.3	4.8	587.9
YFFB	20	1.5	67.3	5.8	831.4
YFFB	20	2.5	79.3	6.6	1165
