• Model NO.：75 ohm coaxial cable rg6u
• Wire Core Material：Bare Copper Wire
• Certification：RoHS, CE, ISO9001
• Brand：Hanli
• Transport Package：200
• Specification：1,0.8CU+PE+B+PVC
• Trademark：HANLI
• Origin：Zhejiang
• HS Code：8544200000
• Production Capacity：10000000,Year

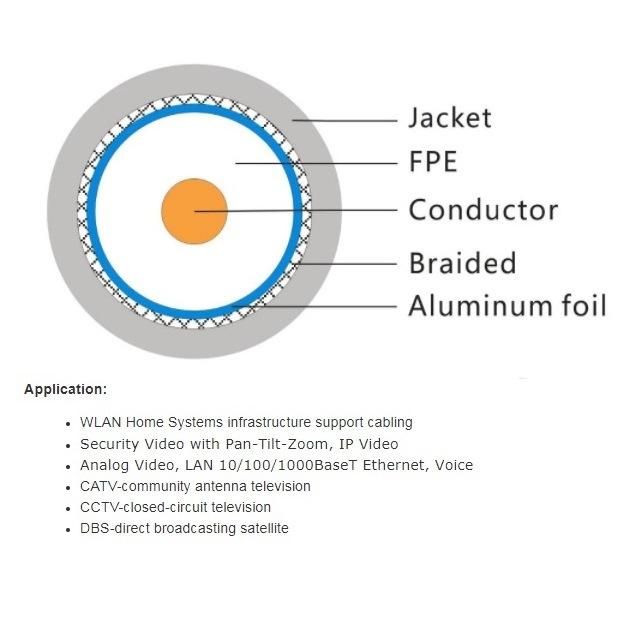

Inner conductorPlain copperΦ1.0±0.025mmDielectricF. PEΦ4.7±0.10mmOuter conductorTinned copper112x0.13mmShield coverage 60%SheathPVC o rLSZHΦ6.7±0.10mm
Electrical & Mechanical CharacteristicsImpedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness100-900MHz>55dB
AttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94
Return Loss30-300MHz>26dB300-600MHz>25dB600-900MHz>24dB

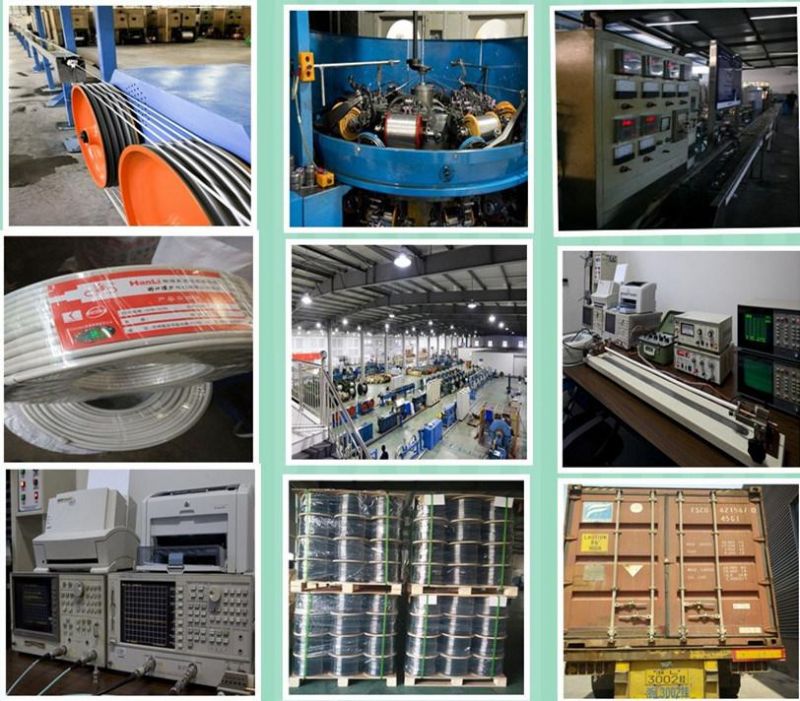

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
