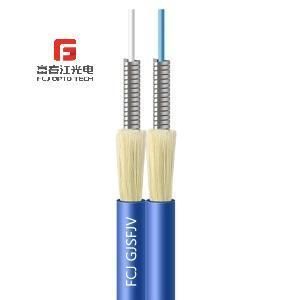

Fcj Opto Tech 29 Years Fibra Optica Communication Cables Factory Indoor Armored Single Mode 1 2 4 6 8 10 Core Gjsfjv Fiber Optic Cable

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Can Be Customized
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：1000N<10000N
  • Core：Multicore

Base Info

  • Model NO.：GJSFJV 2 Fiber
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：Fcj Opto Tech
  • Sheath Material：PVC
  • Jacked Color：Blue, Orange, Green, White etc.
  • Temperature Range：-20~70 Degree
  • Transport Package：Carton Box
  • Specification：2KM, 3KM
  • Trademark：Fcj Opto Tech.
  • Origin：China
  • HS Code：854470000
  • Production Capacity：8000km,Month

Description

Bandwidth
(Class A)@850  ≥500MHZ·km≥500MHZ·km@1300  ≥1000MHZ·km≥600MHZ·kmNumerical Aperture   0.200±0.015NA0.275±0.015NACable Cut-off Wavelength ≤1260nm≤1480nm
Technical Parameters
Cable TypeFiber CountTight
Diameter
 mm		Cable Diameter
 mm		Cable Weight
Kg/km		Tensile Strength
Long/Short Term
N		Crush Resistance
Long/Short
Term
 N/100m		Bending Radius
 Static/Dynamic
 mm
GJSFJV20.63.215300/750200/100020D/10D
GJSFJV20.94.028300/750200/100020D/10D
Storage/Operating Temperature : -20ºC to + 60ºC
