Nyy, Low Voltage Power Cable, 0.6/1 (1.2) Kv, Cu/PVC/PVC (SPLN 43-1/IEC 60502-1)
Jiangsu Boan Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：NYY
- Material Shape：Round Wire
- Range of Application：Transfer
- Certification：ISO9001, CCC
- Brand：Boan
- Manufacture Standard：Spln 43-1,IEC 60502-1
- Rated Voltage：0.6,1 Kv
- Class of Conductor：2
- Number of Cores：1-5
- Size：1.5-500 mm2

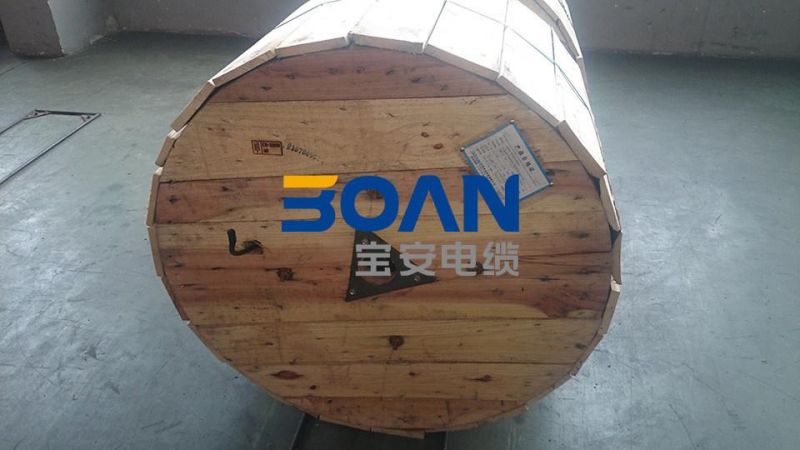

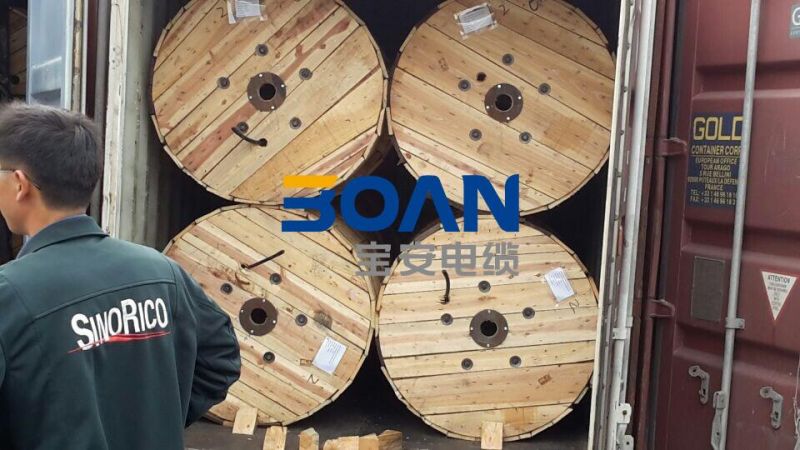

- Transport Package：Fumigated Steel-Wooden Drum,Steel Drum
- Specification：SPLN,IEC
- Trademark：DingAn or OEM
- Origin：Jiangsu Yixing, China
- HS Code：8544492100
- Production Capacity：38000 Km,Year
Description
Single CoreNominal cross section No. of wire and conductor shape Nominal Thickness Overall Diameter Weight mm2 pcs - Insulation Outer sheath mm kg/km 1.5 1 re 0.8 1.4 6 34 1.5 7 rm 0.8 1.4 7 55 2.5 1 re 0.8 1.4 7 66 2.5 7 rm 0.8 1.4 7 70 4 1 re 1.0 1.4 8 91 4 7 rm 1.0 1.4 8 97 6 1 re 1.0 1.4 8 113 6 7 rm 1.0 1.4 9 121 10 1 re 1.0 1.4 9 157 10 7 rm 1.0 1.4 9 168 16 7 rm 1.0 1.4 11 234 25 7 rm 1.2 1.4 12 344 35 7 rm 1.2 1.4 13 445 50 19 rm 1.4 1.4 15 578 70 19 rm 1.4 1.4 17 793 95 19 rm 1.6 1.5 19 1079 120 37 rm 1.6 1.5 21 1319 150 37 rm 1.8 1.6 23 1622 185 37 rm 2.0 1.7 25 2009 240 61 rm 2.2 1.8 29 2612 300 61 rm 2.4 1.9 32 3236 400 61 rm 2.6 2.0 35 4077 500 61 rm 2.8 2.1 39 5139 Two Cores 1.5 1 re 0.8 1.8 12 205 1.5 7 rm 0.8 1.8 13 213 2.5 1 re 0.8 1.8 13 243 2.5 7 rm 0.8 1.8 14 259 4 1 re 1.0 1.8 15 326 4 7 rm 1.0 1.8 16 351 6 1 re 1.0 1.8 16 390 6 7 rm 1.0 1.8 17 422 10 1 re 1.0 1.8 18 514 10 7 rm 1.0 1.8 18 557 16 7 rm 1.0 1.8 21 744 25 7 rm 1.2 1.8 24 1066 35 7 rm 1.2 1.8 26 1342 50 19 rm 1.4 1.8 30 1735 70 19 rm 1.4 1.9 33 2331 95 19 rm 1.6 2.0 39 3159 120 37 rm 1.6 2.1 42 3829 150 37 rm 1.8 2.2 46 4667 185 37 rm 2.0 2.4 51 5805 240 61 rm 2.2 2.6 58 7482 300 61 rm 2.4 2.7 64 9253 Three Cores 1.5 1 re 0.8 1.8 13 229 1.5 7 rm 0.8 1.8 13 237 2.5 1 re 0.8 1.8 14 276 2.5 7 rm 0.8 1.8 14 295 4 1 re 1.0 1.8 16 377 4 7 rm 1.0 1.8 16 406 6 1 re 1.0 1.8 17 459 6 7 rm 1.0 1.8 17 495 10 1 re 1.0 1.8 28 620 10 7 rm 1.0 1.8 19 669 16 7 rm 1.0 1.8 22 912 25 7 rm 1.2 1.8 25 1325 35 7 rm 1.2 1.8 28 1688 35 19 sm 1.2 1.8 28 1411 50 19 rm 1.4 1.8 28 1829 70 19 rm 1.4 2.0 31 2527 95 19 rm 1.6 2.1 36 3404 120 37 rm 1.6 2.2 38 4155 150 37 rm 1.8 2.3 43 5119 185 37 rm 2.0 2.5 47 6324 240 61 rm 2.2 2.7 53 8224 300 61 rm 2.4 3.1 59 10304 Three Cores + Ground 3x25+16 7/7 rm/rm 1.2/1.0 1.8 27 1501 3x35+16 7/7 rm/rm 1.2/1.0 1.8 29 1846 3x35+16 19/7 sm/rm 1.2/1.0 1.8 28 1668 3x50+25 19/7 sm/rm 1.4/1.2 1.9 32 2224 3x70+35 19/7 sm/rm 1.4/1.2 2.0 36 3024 3x95+50 19/19 sm/rm 1.6/1.4 2.2 40 4051 3x120+70 37/19 sm/rm 1.6/1.4 2.3 44 5083 3x150+70 37/19 sm/rm 1.8/1.4 2.4 49 6052 3x185+95 37/19 sm/rm 2.0/1.6 2.6 53 7535 3x240+120 37/37 sm/rm 2.2/1.6 2.8 60 9725 3x300+150 37/37 sm/rm 2.4/1.8 2.9 65 11983 Four Cores 1.5 1 re 0.8 1.8 14 262 1.5 7 rm 0.8 1.8 14 272 2.5 1 re 0.8 1.8 15 320 2.5 7 rm 0.8 1.8 15 343 4 1 re 1.0 1.8 17 443 4 7 rm 1.0 1.8 18 477 6 1 re 1.0 1.8 18 546 6 7 rm 1.0 1.8 19 589 10 1 re 1.0 1.8 20 749 10 7 rm 1.0 1.8 21 807 16 7 rm 1.0 1.8 24 1113 25 7 rm 1.2 1.8 28 1630 35 7 rm 1.2 1.8 30 2092 35 19 sm 1.2 1.8 28 1869 50 19 rm 1.4 1.9 32 2491 70 19 rm 1.4 2.1 36 3381 95 19 rm 1.6 2.2 40 4534 120 37 rm 1.6 2.3 44 5596 150 37 rm 1.8 2.5 49 6877 185 37 rm 2.0 2.7 53 8462 240 61 rm 2.2 2.9 60 10999 300 61 rm 2.4 3.1 66 13616 Five Cores 1.5 1 re 0.8 1.8 15 306 1.5 7 rm 0.8 1.8 15 317 2.5 1 re 0.8 1.8 16 375 2.5 7 rm 0.8 1.8 16 401 4 1 re 1.0 1.8 18 529 4 7 rm 1.0 1.8 19 568 6 1 re 1.0 1.8 19 652 6 7 rm 1.0 1.8 20 701 10 1 re 1.0 1.8 21 897 10 7 rm 1.0 1.8 23 974 16 7 rm 1.0 1.8 26 1343 25 7 rm 1.2 1.8 30 1992 35 7 rm 1.2 1.9 33 2569 50 19 rm 1.4 2 39 3421
