1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE,PVC,PE
  • Sheath Material：PVC or PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：power cable
  • Wire Core Material：Copper or Aluminum
  • Certification：ISO, CCC, CE
  • Model：Power Cable
  • Brand：Hongda
  • Transport Package：Coil and Drum
  • Specification：up to 1000mm2
  • Trademark：Hongda
  • Origin：Henan, China
  • HS Code：8544921000
  • Production Capacity：5000000m,Month

Description

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling forceYJV33 (CU/XLPE/SWA/PE)YJLV33 (AL/XLPE/SWA/PE)Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cableYJV72 (CU/XLPE/AWA/PVC)YJLV72 (AL/XLPE/AWA/PVC)Cu conductor(Al conductor)XLPE insulated  aluminium-wire armored PE sheathed power cable


5  XLPE insulated  Power Cables for rated voltages up to and including 3.6--35kV
Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen: Extruded semi-conductive compound
Metallic Screen: copper tape or a concentric layer of copper wires
Color for core identification: Red, Yellow ,Blue tape shall be applied between insulation screen and metallic screen ( The above identifying can be changed as user requirement)
Assembly : Three screened cores are laid up together ,if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath: Extruded layer of PVC ST2 or PE , LSZH
Armour : Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH

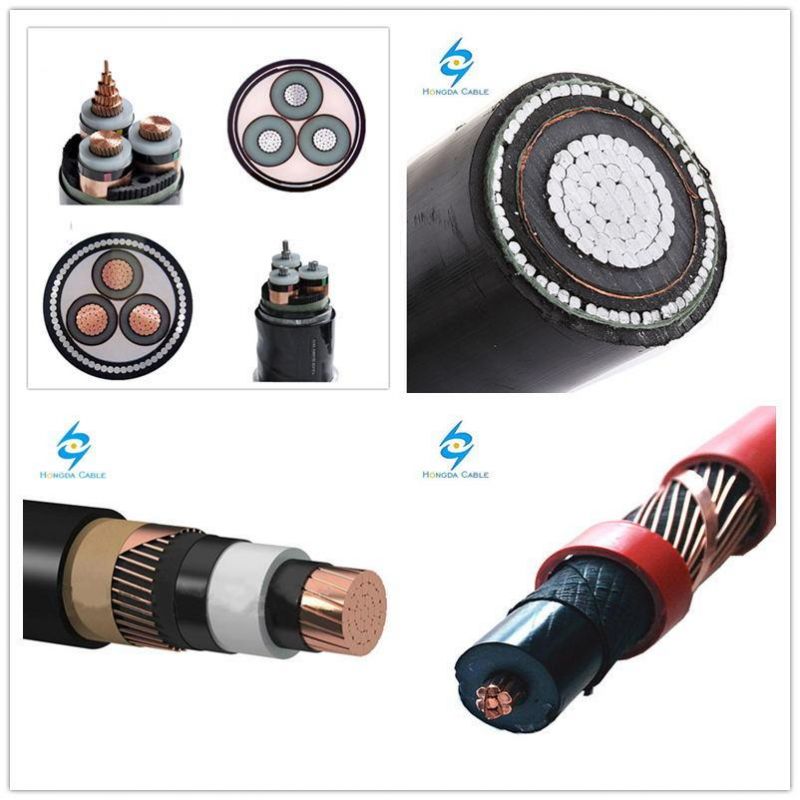

1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)

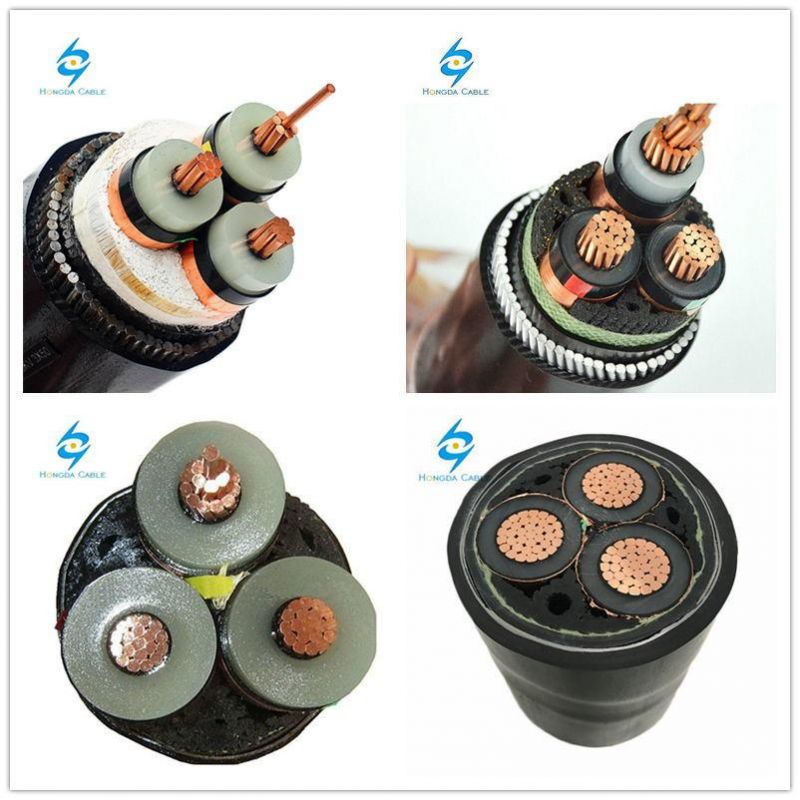

1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)

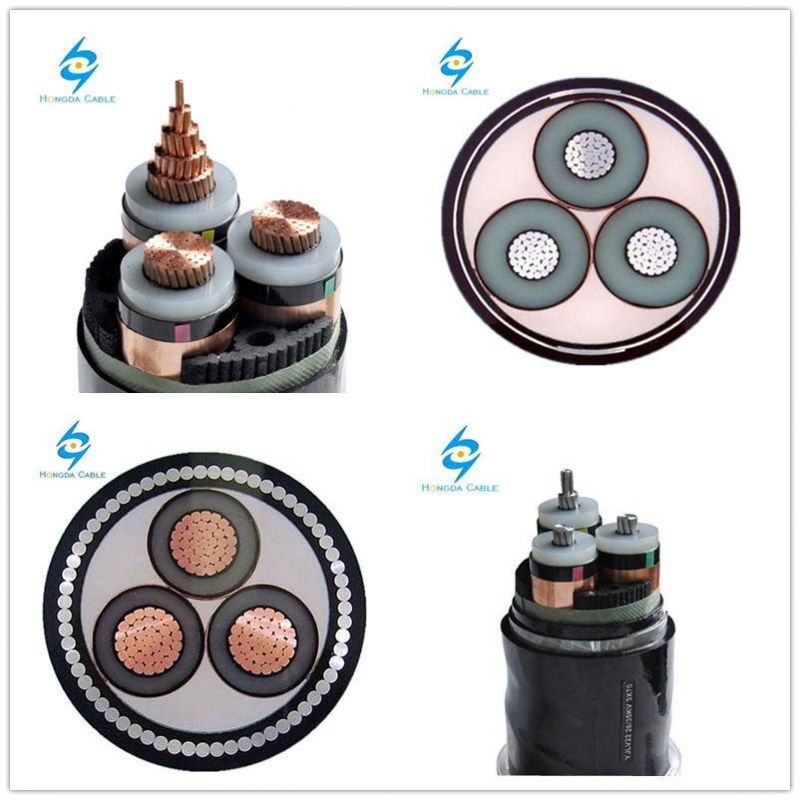

1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)



Packing:

1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)

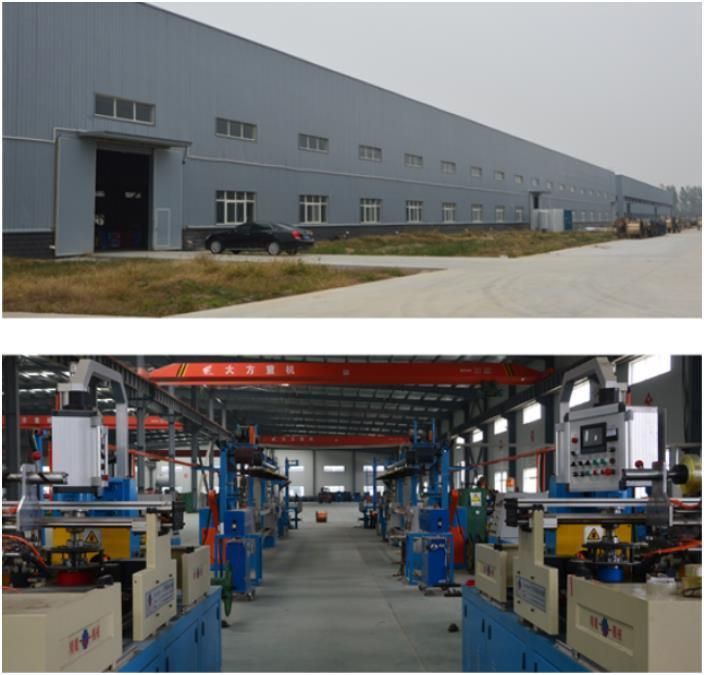

Factory :

1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)
1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)
