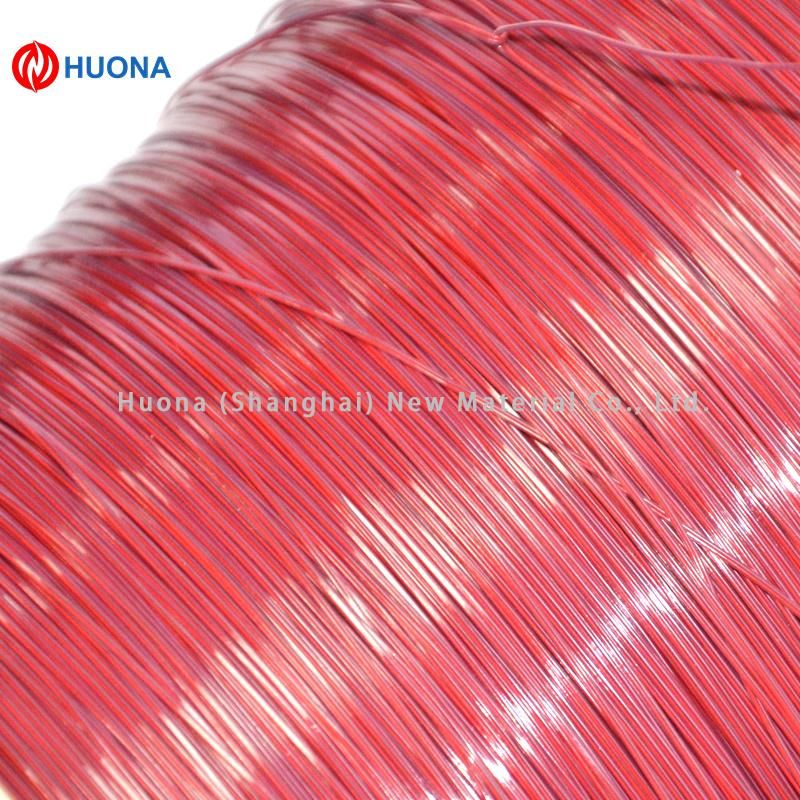

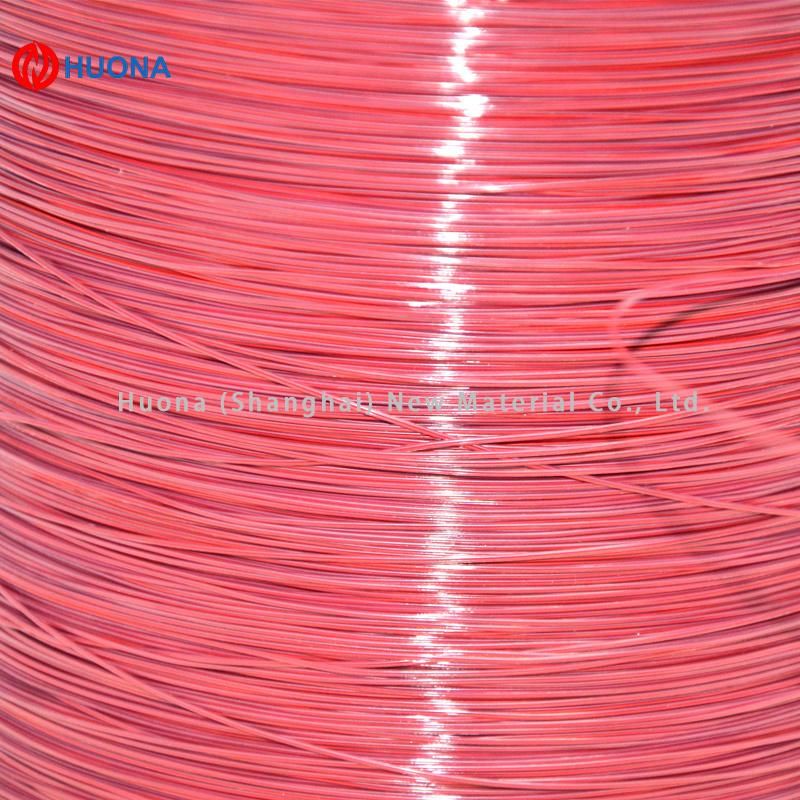

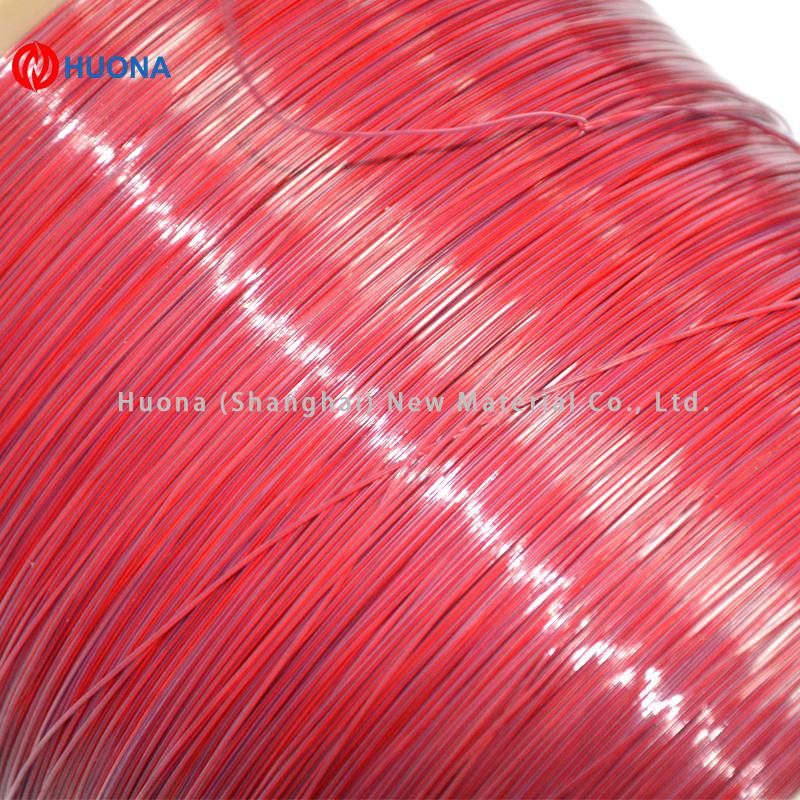

FEP Insulation Tin Plated Copper Wire, Cable
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper Wire
- Sheath Material：FEP
- Insulation Material：Teflon
Base Info
- Model NO.：Teflon Tinned Copper Wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：PFA
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-80-+200c,+150c
- Rated Voltage：300V
- Od Tolerance：+,-0.1mm
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Transport Package：Wooded Case, Carton
- Specification：0.15-1.5mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
InsulationElectrical Properties Packing AWG Conductor
Construction
NO.XΦmm Diameter
mm Insulation
Thickness
mm Outer
Diameter
mm Max.Conductor
Resistance DC 20'C
Ω/km M/coil 10 37x0.43 3.01 0.33 3.67 3.546 305 12 19x0.49 2.45 0.33 3.11 5.64 305 14 19x0.37 1.85 0.33 2.51 8.96 305 16 19x0.30 1.50 0.33 2.16 14.6 305 17 19x0.26 1.30 0.33 1.96 18.3 305 18 19x0.23 1.15 0.33 1.81 23.2 305 20 19x0.18 0.90 0.33 1.61 36.7 305 1x0.80 0.80 0.33 1.46 35.2 305 22 19x0.16 0.80 0.33 1.46 59.4 610 1x0.65 0.65 0.33 1.31 56.4 610 24 7x0.20 0.60 0.33 1.26 94.2 610 1x0.50 0.50 0.33 1.16 89.3 610 26 7x0.16 0.48 0.33 1.14 150.0 610 1x0.40 0.40 0.33 1.06 143.0 610 28 7x0.12 0.36 0.33 1.02 239.0 610 1x0.32 0.32 0.33 0.98 227.0 610 30 7x0.10 03.0 0.33 0.96 381.0 610 1x0.254 0.254 0.33 0.914 361.0 610
Construction
NO.XΦmm
mm
Thickness
mm
Diameter
mm
Resistance DC 20'C
Ω/km
