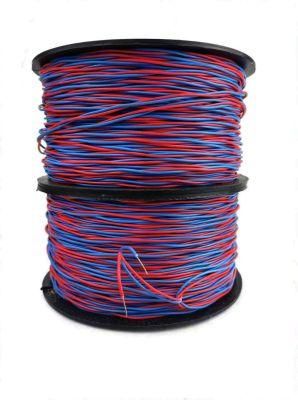

Stranded Copper 26AWG Electrical Wire UL3122 with 300V Rated Voltage for Distribution Boxes
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：for General Purpose Internal Wiring of Appliance
- Conductor Material：Copper
- Sheath Material：Crosslinking
- Insulation Material：XLPE
Base Info
- Model NO.：UL3122
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, Reach
- Brand：B&T
- According to：UL Subject758, UL1581, CSA22.2 No.210.2
- Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance：for Internal Wiring of Appliance
- Conductor：Stranded, Tinned or Bare Copper Conductor
- Color：Could Be Customized Color
- Delivery Time：7-15days
- Products Certification：UL,cUL,RoHS, Reach
- Package：Coil or Spool Packing
- Factory Certificate：ISO9001:2008 Standard
- Capacity：300,000km Annual
- Transport Package：610 Feet in Roll
- Specification：18~30AWG 1~34 Conductors
- Trademark：B&T
- Origin：Xiamen, Fujian
- HS Code：8544492100
- Production Capacity：300, 000km
Description
Max Resistance 20ºCStructure Diameter Nominal Diameter NO. mm2 pcs/mm mm mm mm mm mm Ω/KM 26 0.128 7/0.16 0.48 0.38 1.25 0.2 1.65 148 24 0.205 7/0.20 0.6 0.38 1.4 0.2 1.8 93 22 0.324 7/0.25 0.75 0.38 1.55 0.2 1.95 55 20 0.519 7/0.31 0.93 0.38 1.7 0.2 2.1 34.6 18 0.823 7/0.39 1.2 0.38 2 0.2 2.4 21.8 16 1.31 7/0.49 1.5 0.38 2.3 0.2 2.7 13.7
