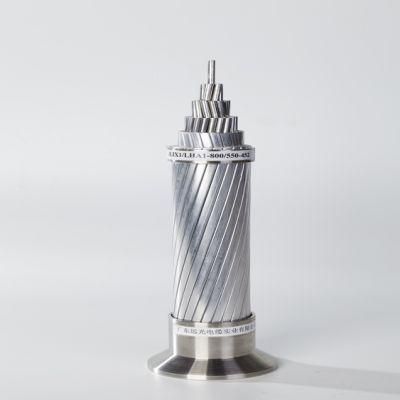

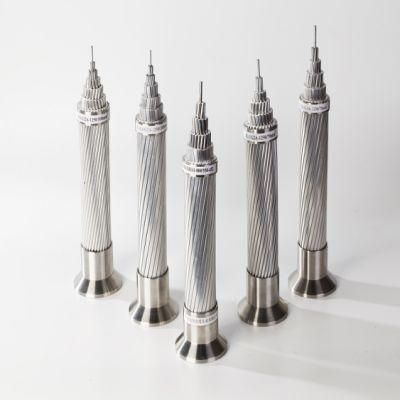

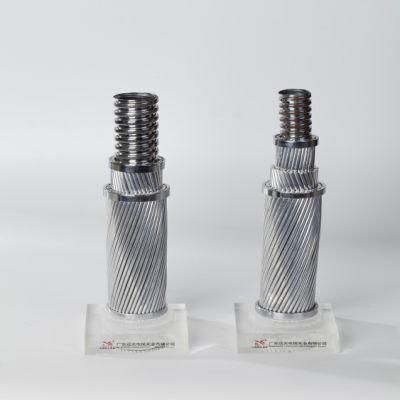

Aluminium Alloy Conductor/Electric Cable AAAC Conductor 16-1250mm2
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AAAC
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Transport Package：Wooden Reel, Steel Reel
- Specification：18.4-1439 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
D.C. resistanceWire Conductor mm2 mm mm kg/km kN Ohm/km 16 18.4 7 1.83 5.49 50.4 5.43 1.7896 25 28.8 7 2.29 6.86 78.7 8.49 1.1453 40 46.0 7 2.89 8.68 125.9 13.56 0.7158 63 72.5 7 3.63 10.9 198.3 21.39 0.4545 100 115 19 2.78 13.9 316.3 33.95 0.2877 125 144 19 3.10 15.5 395.4 42.44 0.2302 160 184 19 3.51 17.6 506.1 54.32 0.1798 200 230 19 3.93 19.6 632.7 67.91 0.1439 250 288 19 4.39 22.0 790.8 84.88 0.1151 315 363 37 3.53 24.7 998.9 106.95 0.0916 400 460 37 3.98 27.9 1268.4 135.61 0.0721 450 518 37 4.22 29.6 1426.9 152.79 0.0641 500 575 37 4.45 31.2 1585.5 169.76 0.0577 560 645 61 3.67 33.0 1788.4 190.14 0.0516 630 725 61 3.89 35.0 2000.7 213.90 0.0458 710 817 61 4.13 37.2 2254.8 241.07 0.0407 800 921 61 4.38 39.5 2540.6 271.62 0.0361 900 1036 91 3.61 41.8 2861.1 305.58 0.0321 1000 1151 91 4.01 44.4 3179 339.53 0.0289 1120 1289 91 4.25 46.7 3560.5 380.27 0.0258 1250 1439 91 4.49 49.4 3973.7 424.41 0.0231
Application:
For high voltage transmission lines, higher urban, high-rise buildings and forest and other safety requirements occasions.
Product Features:
1,Simple structure, easy erection maintenance, low cost and large transmission capacity.
2,Through the application together with the tower erected manner, saving erection.
3,Conducive to cross rivers and valleys and other special geographical conditions laid.
4,Having good conductivity and sufficient mechanical tensile strength, tower and pole distance can be enlarged.
Our company:
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
FAQ:
1. Are you a trading company or manufacturer?
Vango cable is a professional manufacturer in Guangdong, China. Established in 1988, we have 30 years experience in this industry.
2. What is your main product?
As one of the leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.

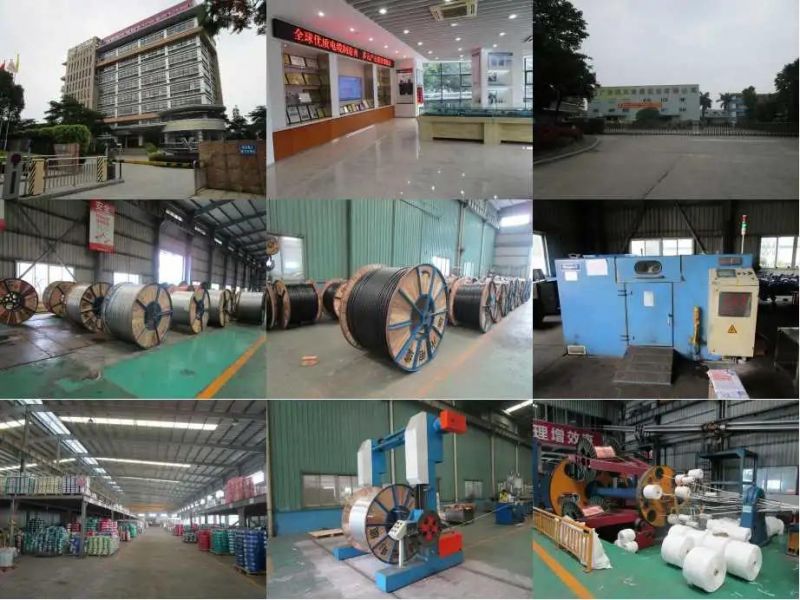

Factory:
Certificates:
