Sc/ APC Endface Type and Singlemode Fiber Type Fiber Quick Connector
Qingdao Powtech Electronics Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：SC APC
- Core：Single Core
- Certification：RoHS, UL, CE, ISO9001
- Brand：Optelec
- Sheath Material：HDPE or at Sheath
- Material：Plastic
- Transport Package：Carton
- Trademark：Powtech
- Origin：China
- Production Capacity：100000PCS,Month
Description
Basic Info.
Model NO. SC APC Core Single Core Certification RoHS, UL, CE, ISO9001 Brand Optelec Sheath Material HDPE or at Sheath Material Plastic Transport Package Carton Trademark Powtech Origin China Production Capacity 100000PCS/MonthProduct Description

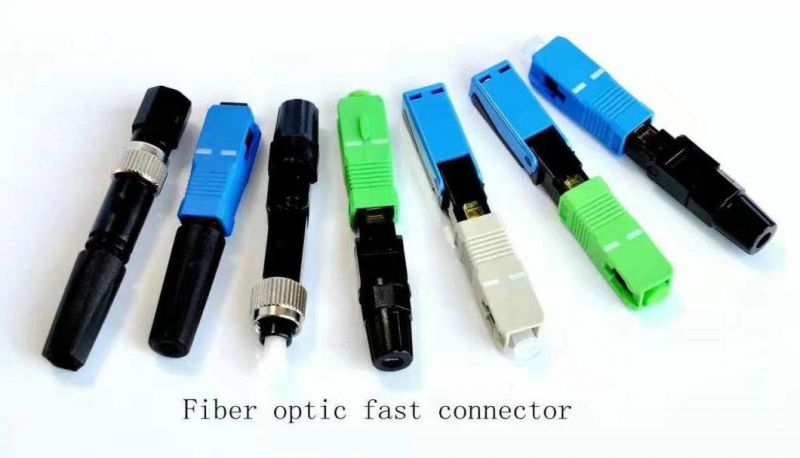

SC/ APC Endface type and Singlemode Fiber Type Fiber Quick Connector
Description:

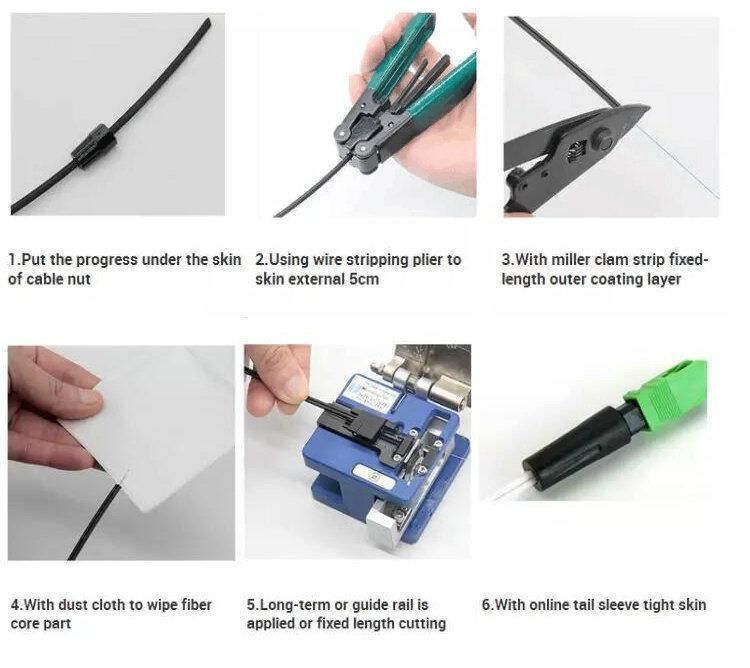

Field Assembly SC quick connector can provide a quick and easy of fiber in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber surface inspection.
Technical data:
| Must meet the standard | TIA/EIA 604-3 |
| Operating Wavelength | 1260nm-1650nm Insertion |
| Lost by insertion | £/0.2dB/ < Max. < 0.5dB |
| Lost by Return | > 60dB |
| Operating Temperature | -40 a +80 |
| Resistance | 1000 reconnection / ± 0.1dB |
| Tension | (3Kg loading) 250um & 900um (0.75kg/ £0.3dB load) |
| Cable pull | 1.6 mm £ 0.20dB @ 40N 2.0 mm £ 0.20dB @ 80 N |
| Moisture Resistance | < 2.0dB @ +60C @ 95% |
| Radius of the end of the splint (mm) | 5 ~ 12 |
| Fiber cutting | Less than 100 |
| Fiber extrusion | Less than 100 |
| Displacement | Less than 50 |
