3 Core Copper Conductor Medium Voltage Armoured XLPE Insulated Power Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE,PVC,PE
- Sheath Material：PVC or PE
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cable
- Wire Core Material：Copper or Aluminum
- Certification：ISO, CCC, CE
- Model：Power Cable
- Brand：Hongda
- Transport Package：Coil and Drum
- Specification：up to 1000mm2
- Trademark：Hongda
- Origin：Henan, China
- HS Code：8544921000
- Production Capacity：5000000m,Month
Description

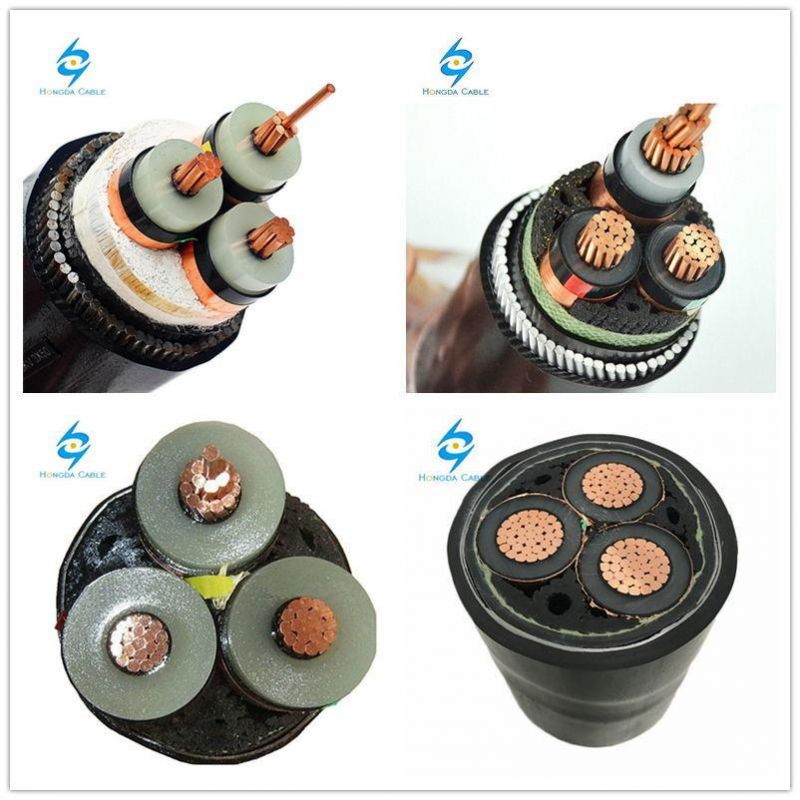

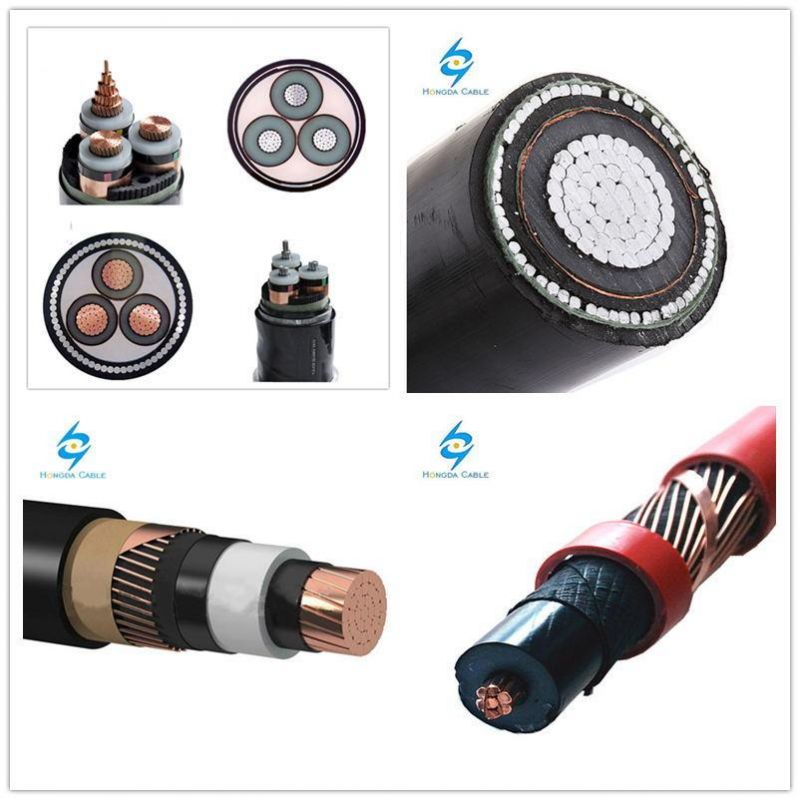

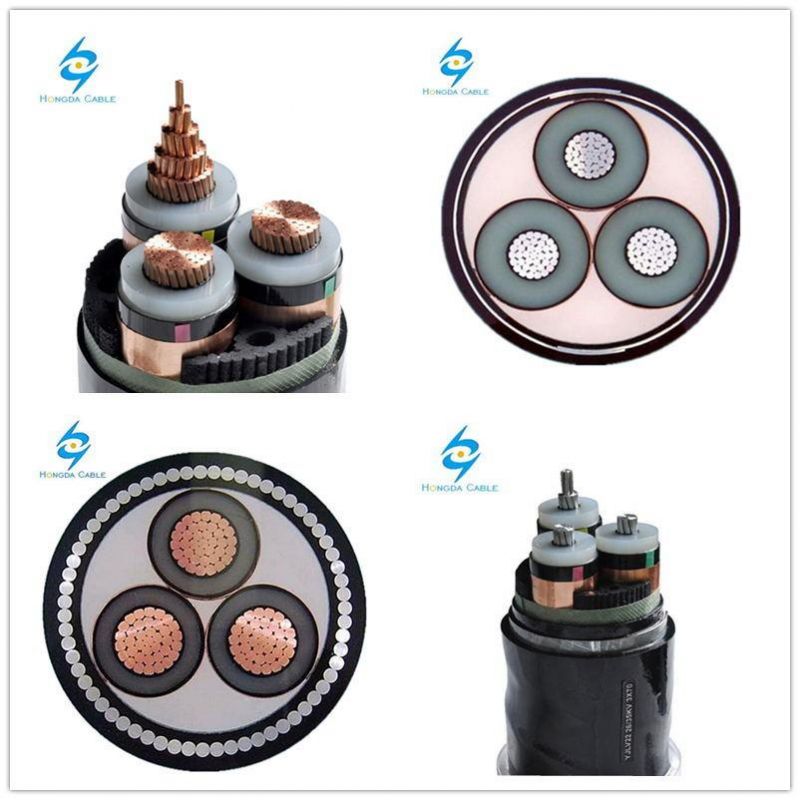

5 XLPE insulated Power Cables for rated voltages up to and including 3.6--35kV
Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen: Extruded semi-conductive compound
Metallic Screen: copper tape or a concentric layer of copper wires
Color for core identification: Red, Yellow ,Blue tape shall be applied between insulation screen and metallic screen ( The above identifying can be changed as user requirement)
Assembly : Three screened cores are laid up together ,if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath: Extruded layer of PVC ST2 or PE , LSZH
Armour : Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH

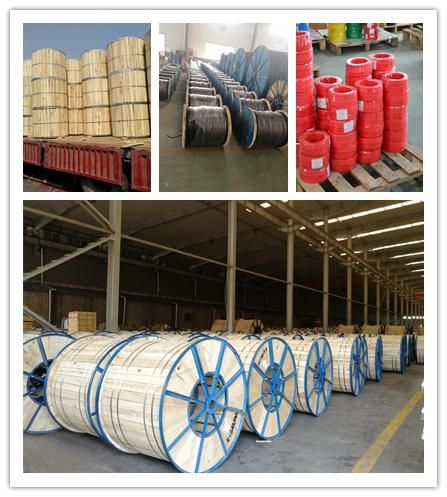

Packing:

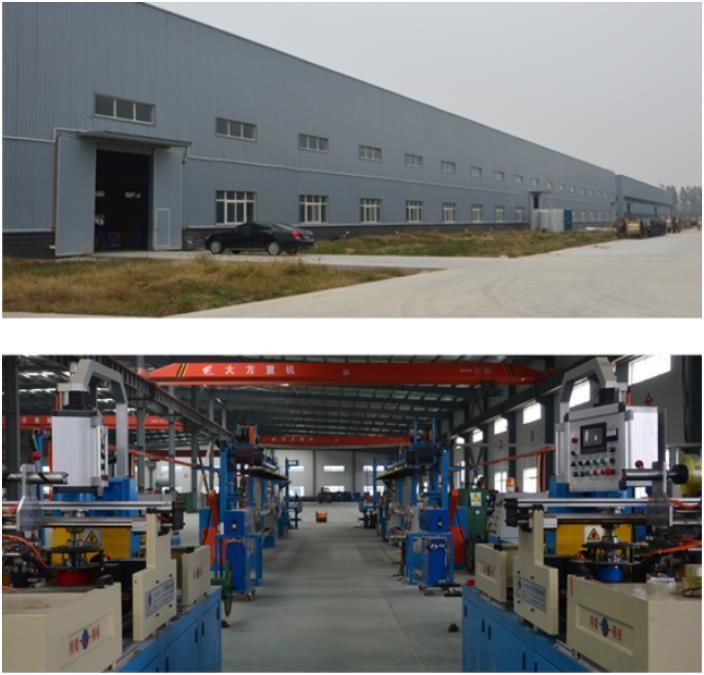

Factory :
Contact Details:
HENAN HONGDA CABLE CO., LTD.
