CAT6A U/FTP LSZH B2ca Solid Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid
  • Certification：CE, ISO, RoHS, CCC, CPR

Base Info

  • Insulation：Fpe
  • Conductor Diameter：23 AWG
  • Shield：Aluminum Shield
  • Jacket：LSZH
  • Transport Package：305m,Wooden Drum
  • Origin：Hangzhou, Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Insulation Fpe Conductor Diameter 23 AWG Shield Aluminum Shield Jacket LSZH Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Product Description

 Category 6A U/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk.
Configuration
1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.350±0.03mm FPE
3. Shield: Pet/Al Foil
4. Drain wire: 0.4mmTC

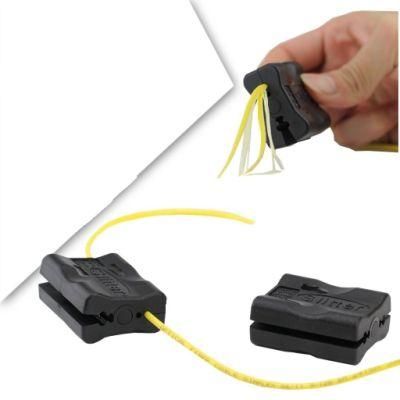

5. Ripcord
6. Sheath: 7.3±0.3mm LSZH
7.Fire Rating:B2ca

Electrical Specifications
dc Resistance, maximum7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)79 %
Operating Frequency, maximum500 MHz

Packing

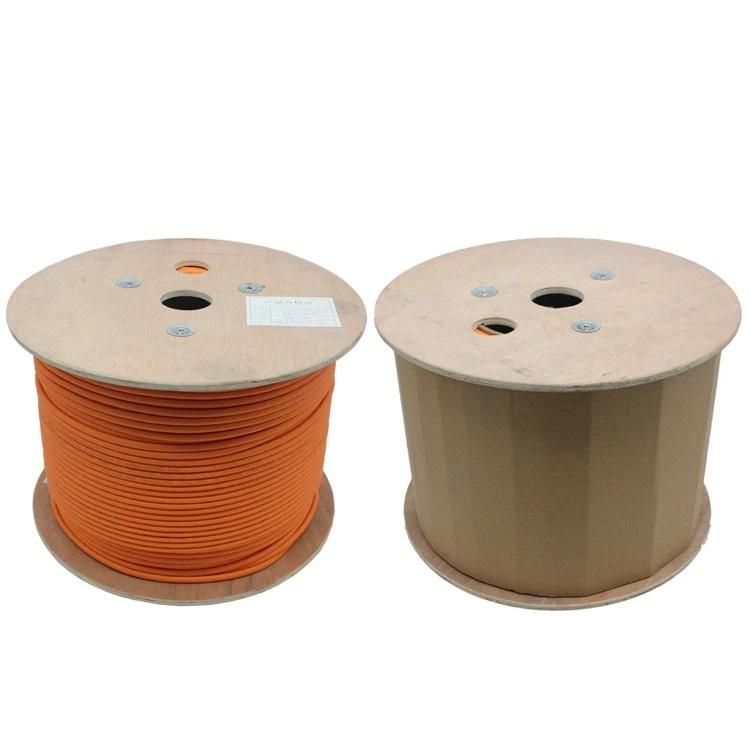

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

CAT6A U/FTP LSZH B2ca Solid Cable
CAT6A U/FTP LSZH B2ca Solid Cable

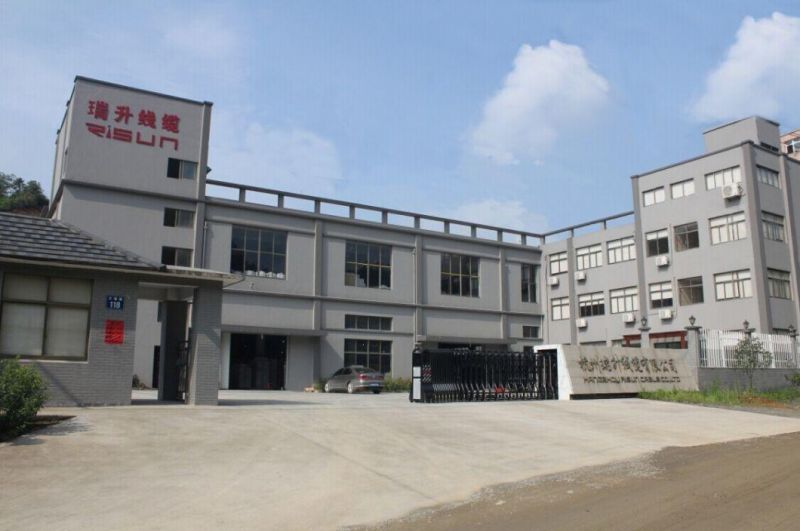

Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and  telephone cable in china. 95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.In the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.
 CAT6A U/FTP LSZH B2ca Solid Cable

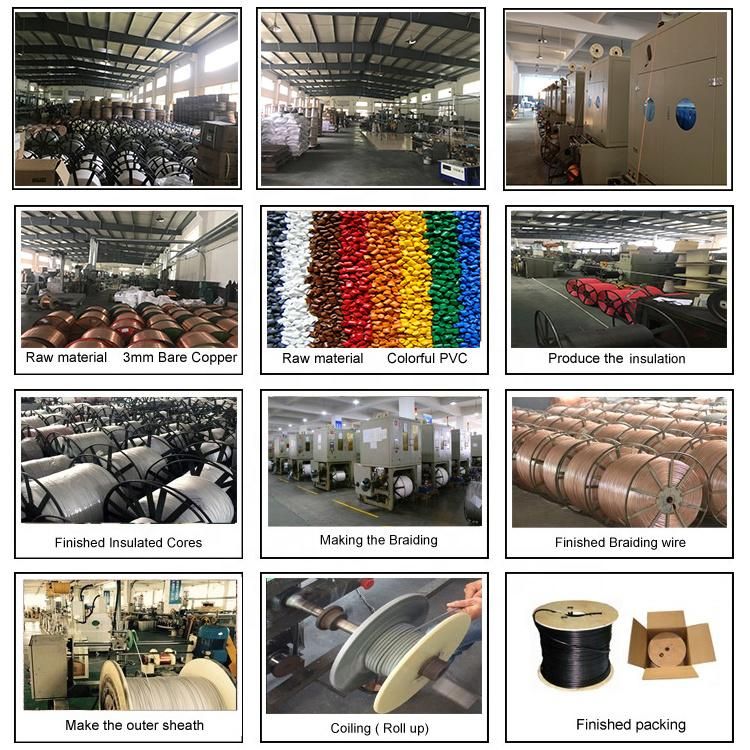

process of productionCAT6A U/FTP LSZH B2ca Solid Cable
