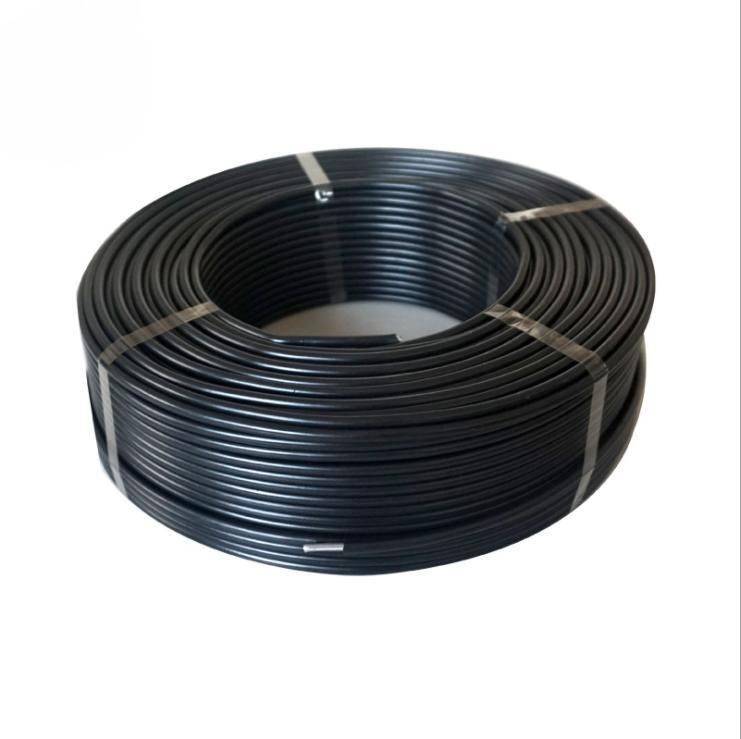

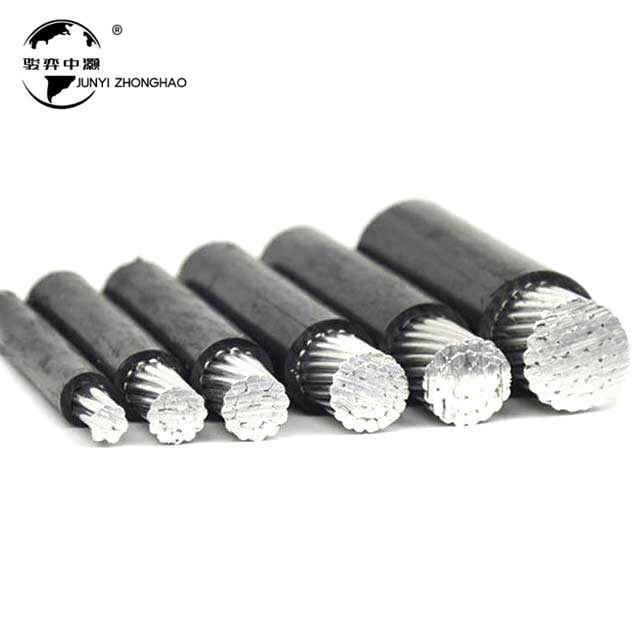

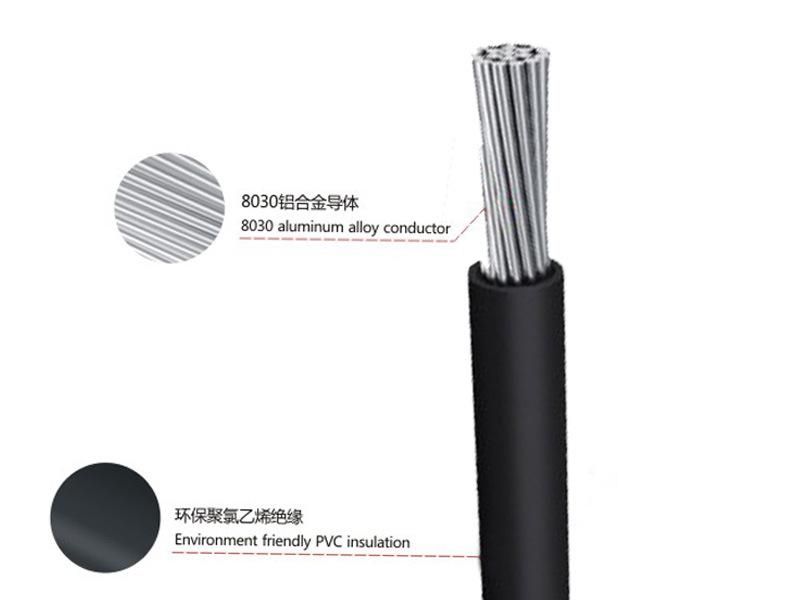

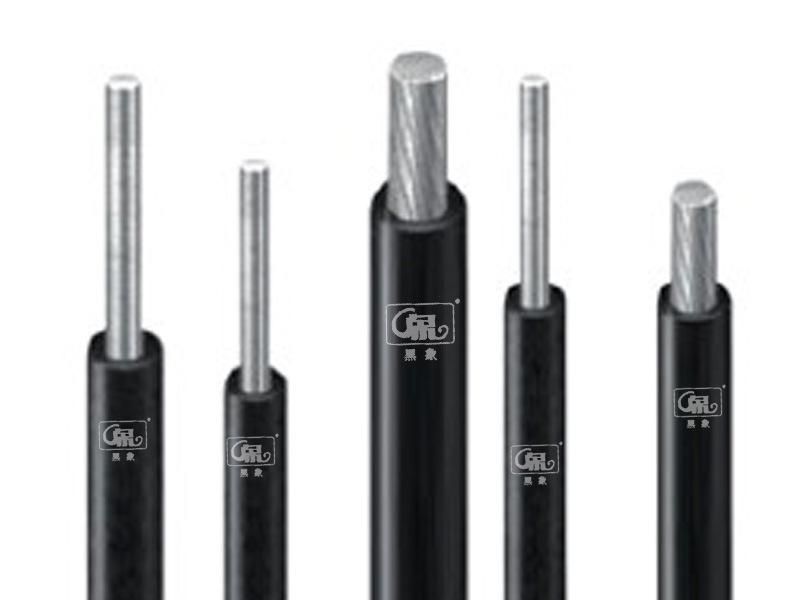

Environment Friendly Insulated Material Optimal Flexibility Aluminium Alloy PVC Insulated Electric Wire
Ningbo Junyi Zhonghao Import & Export Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Electrical Equipment and Lighting
- Conductor Material：Aluminum
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Insulated
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Black Elephant
- Name：Aluminium Alloy Wire & Cable
- Rated Voltage：450,750V
- Number of Cores：1 Core
- Sample：Free
- Transport Package：Wooden,Steel Drum or as Specified
- Specification：1.5-400² , 0.75-400²
- Trademark：Black Elephant , Customizable
- Origin：Sichuan, China
Description
DC Resistence of The Conductor Meets The Following Regulations
Information For Type Selection
A:Inherent Defects of common Aluminium Wire
1.Poor Creep Resistence
2.Low Mechanical Property,Poor Installation Performance
B:Comparison with Common Aluminium Wire
1.Creep Resistence
Creep resistence increases 300% by adding right amount of iron to avoid loose caused by cold folw or creep,and ensure the property to keep stable under long-term overloading and overheating.
2.Tensile Strength
Allowable resistence to traction forces of common aluminium wire is 40Mpa,and that of alloy is 53Mpa.
3.Bending
Pure aluminium is easy to crack or break after several times of bending,while aluminium alloy will not crack or break after dozens of bending,which can eliminate the security threat of common aluminium wire during installation,and omproving its safety performance.
4.Electrical Performance
Rare earth is added to aluminium alloy conductor,and the electric conductivity of aluminium alloy wire can reach up to 61.5% IACS after annealed,which exceeds 61% IACS of the common aluminium wire ;therefore,it has the electrical performance of more excellent.
5.Flexibility
Bending radius of common aluminium wire is normally 10 to 20 times of the outer diameter,while that of aluminium alloy wire can be 6 times of the outer diameter,which can reduce the layout sapce and cost when installation.
Comparison of PVC Insulated Copper Wire,Aluminium Wire and Aluminium Alloy Wire with Same Current Capacity
Additional Remarks
1.Fire resistant coating can be added to aluminium alloy wire,and its fire resistant capacity can be proved by burning test .While it is specified in code of building design that copper wire shall be adopted for fire resistant wire ;it does not mean the wire can be used in engineering even though it has passed fire resistant test.
2.Aluminium alloy wire may be used in large scale in buildings due to unique application requirements,and unique technical and economic superiority.But not all wires can be used aluminium alloy wires.
3.When laying aluminium alloy wire.the following measures shall be taken to ensure the security of connection:
1) copper terminal,copper or steel crew shall be tinned to deal with the transition between copper and aluminium;
2) special gasket shall be placed between aluminium wire and copper terminal to avoid electrolytic corrosion;
3) smear antioxidant on connection point when using terminal without tinning to prevent chemical corrosion;
4) special copper-aluminium transition terminal CO/ALR shall be used.
ABOUT US
Sichuan Chndo Cable Co., Ltd lies in Dazhu county, Sichuan province, China. Founded in 1970, covers an area of 140,000 square meters. It's an appointed cable manufacturing enterprise approved by China Department of Mechanical Industry, "Science and Technology Oriented Enterprise" and "One of the Biggest Taxation Contribution Enterprise" in Sichuan province, and its products are "Sichuan Famous Brand Product" and "Product Exemption From Quality Surveillance Inspection in China".
In 1995, "Black elephant" products are awarded "Recommended Products for National Dwelling Buildings of Well-to-do Level " by National Science and Technology Committee and Department of Construction. In 1996, "Black elephant" products are awarded "First Class Products" in national quality test and honored "Sichuan Famous Brand Product" Presently, "Black Elephant" brand wires and cables are produced according to GB and IEC standards ,consisting of wires and cables for electrical equipment (PVC & rubber insulated), power cables, aerial cables, and special cables, more than 200,000 km output per year.
"Black Elephant" products are vastly used nowadays in middle China, south and southwest China, Hong Kong, Australia, Turkmenistan and other countries, such as Petro China, SINOPEC, Nine Dragons Paper (Holdings) Limited, China Resources(Holdings) Ltd, Yangtze River Shipping Group, LAFARGE China and ABB Australia Pty Limited.
WHY CHOOSE US
Established in 1970, with over 50 years of industry knowledge, we have grown to become the most important cable supplier in China.
VALUE & TRUST
We acknowledge that value and trust are the ingredients of a quality relationship. No matter the size of the business, order, industry or sector we can assist.
QUALITY ASSURANCE
All products are in compliance with relevant standards and all cables have passed a number of Chinese and international certifications.
PRODUCTION CAPACITY

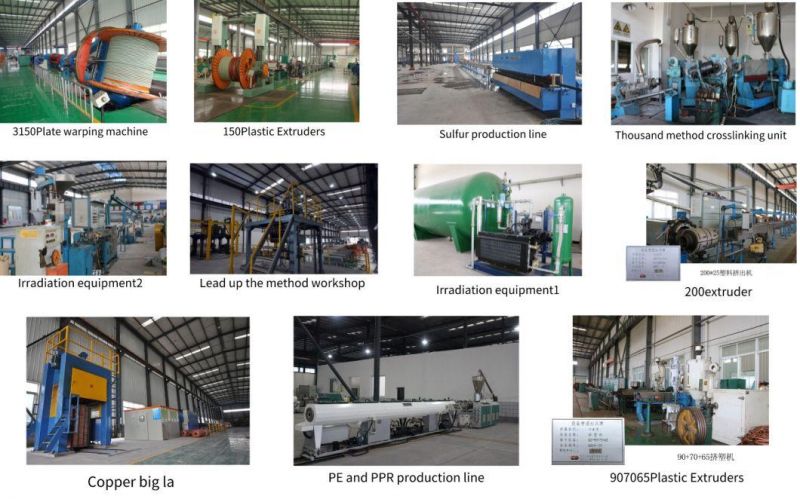

We have more than 500 sets of advanced production equipment to meet the needs of various projects.
R&D CAPABILITY
The company has more than 160 senior professional and technical personnel, established the east Sichuan cable Research Institute, has a number of patented technologies and patented products.
GLOBAL SUPPLY
Enquiries are welcome from customers worldwide. Our export service is efficient and reliable with the ability to ship to any destination in the world.
CUSTOMER SERVICE
TradeMessenger 24 hours online, you can contact him for any quote, order, query or any general question.

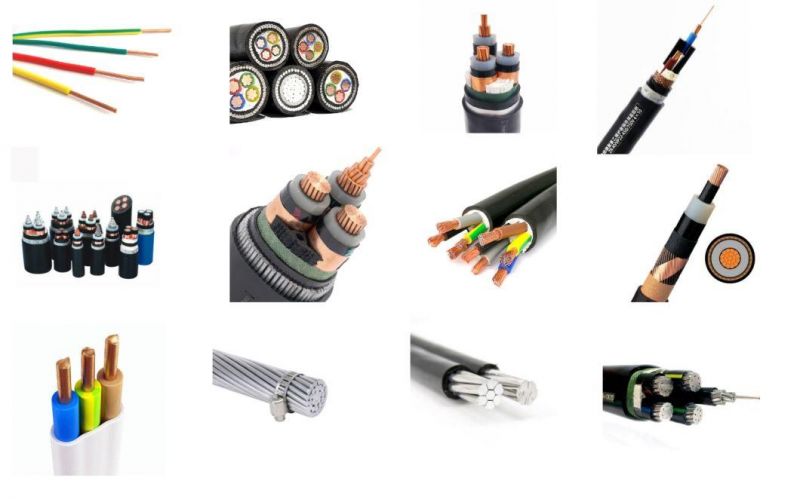

OTHER MAIN PRODUCTS
FAQ
1). Is your company a factory or a trading company?
We are a trading company, mainly responsible for the export business of Sichuan Chndo Cable Co., LTD. Our trade is expanding both at home and abroad.
2). When can I know the price?
We usually make an offer within 1-2 days after receiving your inquiry. If you need a price urgently, please call or email us and we will give priority to your inquiry.
3).How can I have a sample to check your quality?
After the price is fixed, you can ask for samples to check our quality. The sample is free, but you have to pay the freight.
4). What's the minimum quantity?
Generally 1000 meters for building wire. Cable, armored or unarmored, 500 m.
5). What are the standards of your product?
The company can produce wire and cable of various specifications according to IEC, ASTM, BS, DIN, SANS, CSA and other international standards.
6). What about lead time?
If we have it in stock, delivery will be quick. New products take 15-25 days to produce.
7). Terms of payment:
We usually pay 30% in advance and the balance before delivery. Or 100% sight l/C.

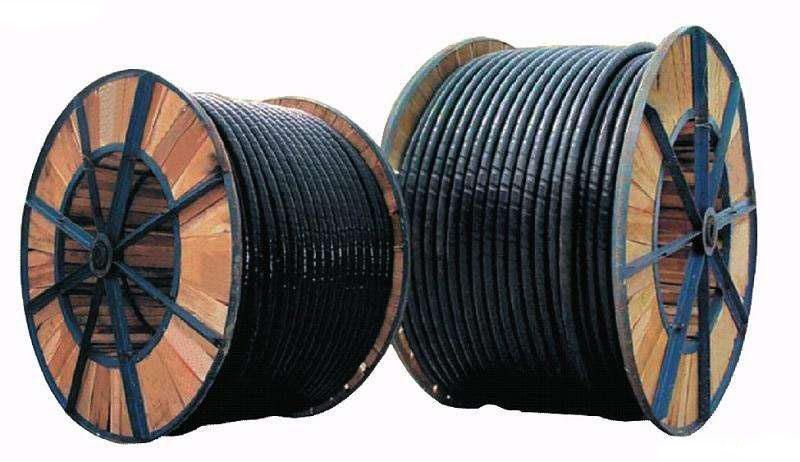

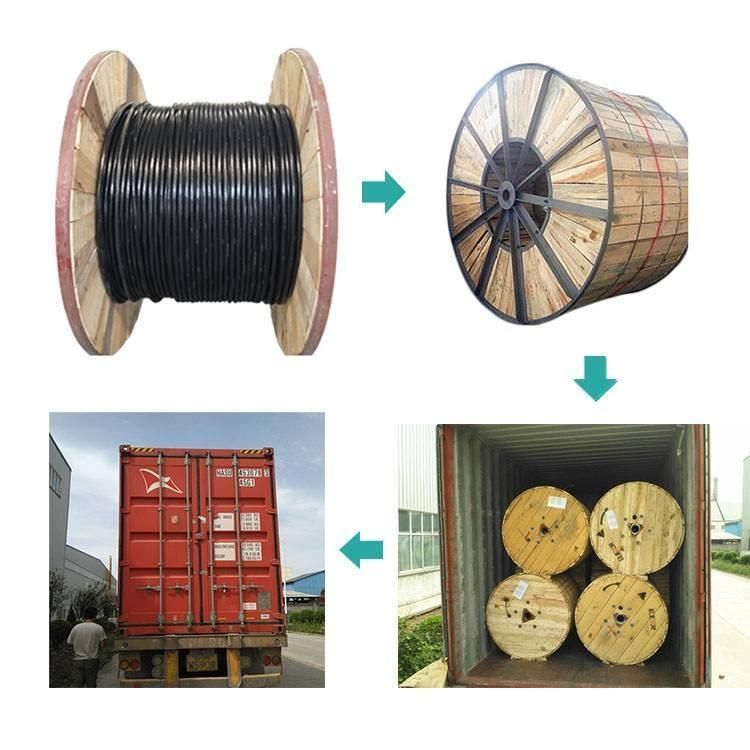

8). What is your packing?
Our cables are packed in cable wheels, which can be made of steel, steel frame, fumigated wood or wooden cases. We use different packaging for different lengths of cables to ensure that the products will not have problems during transportation.
