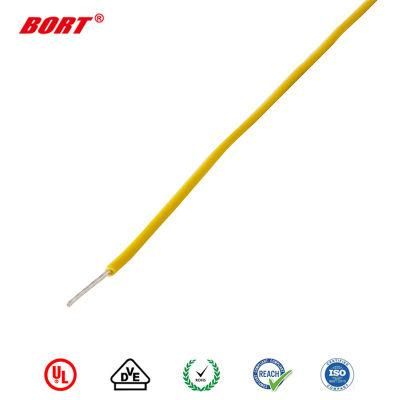

UL1887 UL1901 Tinned Copper Wire FEP Insulation
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Lighting, Lamb
- Conductor Material：Copper
- Sheath Material：FEP
- Insulation Material：Teflon
Base Info
- Model NO.：ul1887
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：UL, RoHS
- Brand：Bort
- Packaging：1000FT,Spool
- Weight：About 1kg,1000FT
- Color Available：Any Colors
- Delivery Time for Samples：3-5days
- Delivery Time for Mass Production：7-10days
- Appliance：Electric Heating Mats
- Warranty Time：at Least 10years for Proper Use
- Standard of Production：RoHS & Reach
- Factory Management Standard：ISO9001:2008
- Annual Capacity：300,000kms
- Transport Package：Coiled in The Plastic Spool
- Specification：10-30AWG
- Trademark：BoRt
- Origin：Zhangzhou, China
- HS Code：8544492900
- Production Capacity：300000kms
Description
WGNO.of Cond
(mm) Conductor resistance 20ºC
(Ω/KM) Conductor Dia
(mm) Insulation Thickness
(mm) Overall Diameter
(mm) Nom. Min. Nom. Tol. 10 37/0.42 3.54 2.94 0.35 0.33 3.60 ±0.15 12 37/0.374 5.64 2.62 0.35 0.33 3.32 ±0.15 14 19/0.361 8.96 1.85 0.35 0.33 2.60 ±0.10 16 19/0.287 14.60 1.50 0.35 0.33 2.20 ±0.10 18 19/0.235 23.20 1.18 0.35 0.33 1.90 ±0.10 20 19/0.19 36.70 0.95 0.35 0.33 1.65 ±0.10 22 19/0.15 59.40 0.76 0.35 0.33 1.45 ±0.10 24 7/0.2 94.20 0.61 0.35 0.33 1.30 ±0.10 26 7/0.16 150.00 0.48 0.35 0.33 1.20 ±0.10 28 1/0.32 227.00 0.320 0.35 0.33 1.02 ±0.10 30 1/0.254 361.00 0.254 0.35 0.33 0.96 ±0.10
(mm)
(Ω/KM)
(mm)
(mm)
(mm)
