• Model NO.：OPGW
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Optelec
• Sheath Material：Aluminum Clad Steel
• Features：Fiber Ground Cable
• Fiber Count：36
• Loose Tube：Stainless Steel Tube
• Transport Package：Iron Wooden Drum
• Specification：IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652
• Trademark：Powtech
• Origin：Qingdao, China
• HS Code：8547
• Production Capacity：100km,Month

Basic Info.

Model NO. OPGW Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Optelec Sheath Material Aluminum Clad Steel Features Fiber Ground Cable Fiber Count 36 Loose Tube Stainless Steel Tube Transport Package Iron Wooden Drum Specification IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652 Trademark Powtech Origin Qingdao, China HS Code 8547 Production Capacity 100km/Month

Product Description

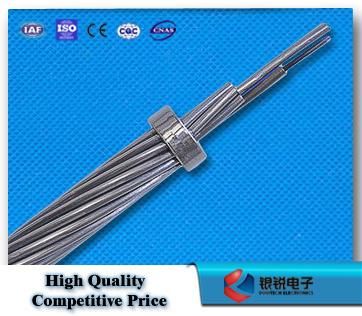

Optical Fiber Composite Overhead Ground Wire (Model: OPGW36) OPGW cable 36 fibers

OPGW cable features:
1-Laser welded stainless steel tubes provide mechanical and thermal protection for optical fibers.
2-Light weight and small diameter
3-Good resistance to moisture and hydrogen ingress
4-Fiber counts up to 96fibers
Structure drawings:

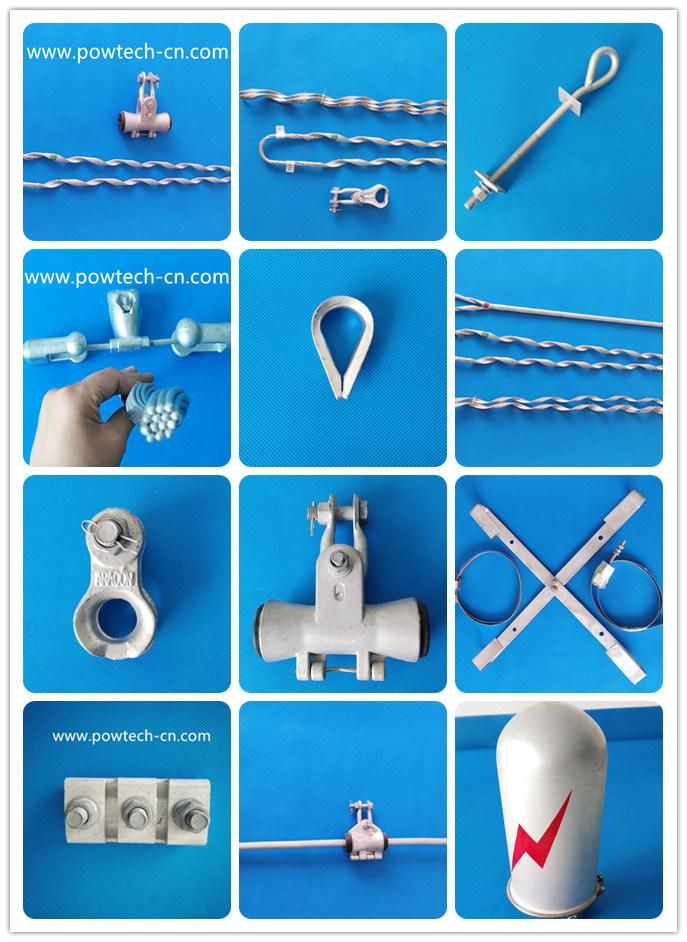

Related Products:

Warehouse:

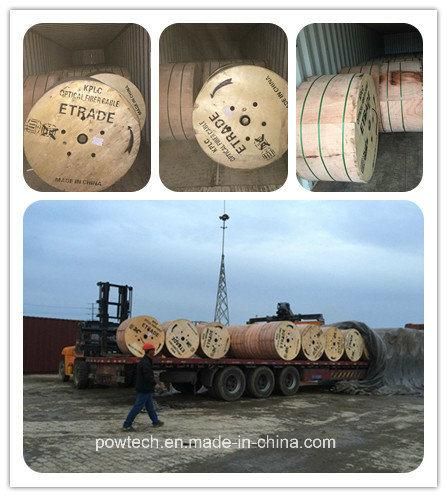

Pacakge&Shipment:

OPGW cable standard compliance
IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652, ITU-T G. 655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW cable technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.

Technical data sheet:

Typical parameter	Max. number of fiber Nos	Overall diameter mm	Standard weight kg/km	Rated tensile strengthkN	Fault current capacity kA2.S
OPGW-73	24	11.4	390	58	35
OPGW-81	24	12.0	430	56	47
OPGW-83	36	12.2	415	54	48
OPGW-95	36	13.0	500	66	65
OPGW-109	48	14.0	580	77	86


Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?

1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated

FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.

Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.

Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.

Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.

Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.

Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
