Halogen-Free Fire Performance Cable NHXH-J FE180 E90 3x1,5mm2 3x2.5

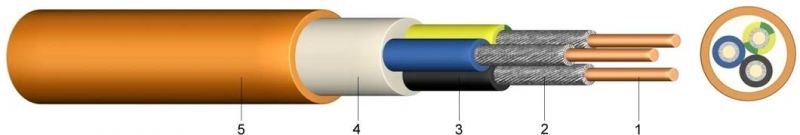

Cable structure



• 1. Bare copper conductor, solid or stranded according to 0295 IEC 60228 cl. 1 or 2
• 2. Double core insulation of mica tape and cross-linked polymer compound
• 3. Cores color coded according to DIN VDE 0293-308, green-yellow earth core (from 3 cores above)
• 4. Cores stranded in layers and wrapped with glass-fibre tape as flame-protection
• For version (N)HXCH concentric conductor of copper tape and copper wires
• 5. Orange sheath of halogen-free polymer compound according to DIN VDE 0207 part 24, flame retardant

Technical data

• Halogen-free, flame-resistant cable according to DIN VDE 0266, orange
• Insulation integrity under the impact of flames 180 min according to IEC 60331, DIN VDE 0472 part 814
• Function integrity according to DIN VDE 4102 part 12 E90
• Temperature range flexing from -40°C to +70°C; max. permitted temperature at conductor +90°C
• Nominal voltage Uo/U 0,6/1 kV
• Test voltage a.c.4000 V
• Minimum bending radius approx. 15 x cable diameter
• Radiation resistance up to 200 x 10⁶ cJ/kg (up to 200 Mrad)

Tests

• Flame-retardant to DIN VDE 0482 part 266-2/HD 405.3/BS 4066 PT3/EN 50266-2/IEC 60332-3
• Low corrosiveness of combustion gases to DIN VDE 0482 part 267/BS 6425 PT2/EN 50267-2-2/IEC 60754-2
• Halogen-free to DIN VDE 0482 part 267/BS 6425 PT1/EN 50267-2-1/IEC 60754-1
• Smoke density to DIN VDE 0482 part 268/HD 606/BS 7622 PT1,PT2/EN 50268-1,-2/IEC 61034-1,-2
• Insulation integrity under direct flame propagation according to DIN VDE 0472 part 814, IEC 60331
• Function integrity according to DIN VDE 4102 part 12 of electrical cable system for a period of 90 min.

Color codes of NHXCH

• 2-core cable: blue/brown
• 3-core cable: brown/black/grey
• 4-core cable: blue/brown/black/grey
• from 7 cores above, black cores with white numbering

Application

These flame-resistant cables are used for all locations where a special protection against fire and fire damage to human life and equipment is necessary such as in industry complexes, power stations, public buildings, hotels, airports, subways, theatres, hospitals etc. These cables are suitable for fixed installation in dry or wet areas but not suitable as a direct burrial into water or earth. For installation in conduits all precautions must be taken to prevent an accumulation of water in the pipes.

FE180:	Insulation integrity for 180 min. Test according to IEC 60331 and DIN VDE 0472 part 814 Insulation integrity under direct impact of flames for a period of 180 minutes
E90:	Function integrity according to DIN VDE 4102 part 12 of electrical cable system for a period of min. 90 minutes assures the functional performance of water-pressure rising systems to avoid smoke and heat in safety stairs, machine rooms, emergency lifts, extract systems etc.

Note:

• CE = the product is conformed with the EC Low-Voltage Directive 73/23/EEC.
• Conforms to RoHS.

Technical characteristics

NHXH FE180/E90

Number of cores	×	core cross-section[mm2]	Approx. outer ø [mm]	Copper weight [kg/km]	Approx. cable weight [kg/km]
3	×	1,5	re	15,0	43	350
3	×	2,5	re	16,0	72	390
3	×	4	re	17,0	115	475
3	×	6	re	18,5	173	560
3	×	10	re	19,5	288	720
3	×	16	rm	22,0	461	970
3	×	25	rm	26,0	720	1400
3	×	35	rm	29,0	1008	1770
3	×	35+16	rm	29,5	1162	1930
3	×	50+25	rm	33,5	1680	2610
3	×	70+35	rm	38,0	2352	3470
3	×	95+50	rm	43,0	3216	4670
3	×	120+70	rm	47,0	4128	5810
3	×	150+70	rm	51,0	4992	6840
3	×	185+95	rm	57,0	6240	8600
3	×	240+120	rm	62,5	8064	10900
4	×	1,5	re	16,0	58	380
4	×	2,5	re	18,0	96	465
4	×	4	re	19,0	154	560
4	×	6	re	20,0	230	650
4	×	10	re	22,0	384	880
4	×	16	rm	24,0	614	1190
4	×	25	rm	28,0	960	1730
4	×	35	rm	31,0	1344	2200
4	×	50	rm	35,0	1920	2890
4	×	70	rm	40,0	2688	3920
4	×	95	rm	45,0	3648	5210
4	×	120	rm	49,0	4608	6370
5	×	1,5	re	18,0	72	475
5	×	2,5	re	19,0	120	500
5	×	4	re	20,0	192	600
5	×	6	re	21,0	288	710
5	×	10	re	24,0	480	930
5	×	16	rm	26,0	768	1430
5	×	25	rm	30,0	1200	1910
5	×	35	rm	34,0	1680	2800
5	×	50	rm	39,0	2500	3730
7	×	1,5	re	19,0	101	560
7	×	2,5	re	21,0	168	750
10	×	1,5	re	23,0	144	750
10	×	2,5	re	24,8	240	900
12	×	1,5	re	25,0	173	850
12	×	2,5	re	26,1	288	990

NHXCH FE180/E90

Number of cores	×	core cross-section[mm2]	Approx. outer ø [mm]	Copper weight [kg/km]	Approx. cable weight [kg/km]
3	×	1,5/1,5	re	16,9	66	370
3	×	2,5/2,5	re	18,0	104	430
3	×	4/4	re	19,0	161	530
3	×	6/6	re	20,1	240	640
3	×	10/10	re	21,8	408	850
3	×	16/16	rm	24,5	643	1130
3	×	25/16	rm	29,0	874	1550
3	×	35/16	rm	30,0	1162	2000
3	×	50/25	rm	33,0	1680	2600
3	×	70/35	rm	37,0	2352	3480
3	×	95/50	rm	43,0	3216	4680
3	×	120/70	rm	47,0	4128	5800
3	×	150/70	rm	52,0	4992	6850
3	×	185/95	rm	57,0	6240	8600
3	×	240/120	rm	63,0	8064	10980
4	×	1,5/1,5	re	18,0	81	430
4	×	2,5/2,5	re	18,9	128	500
4	×	4/4	re	20,1	200	600
4	×	6/6	re	21,2	297	730
4	×	10/10	re	23,0	504	1060
4	×	16/16	im	25,2	796	1360
4	×	25/16	rm	30,0	1142	1900
4	×	35/16	rm	33,5	1526	2410
4	×	50/25	rm	38,0	2203	3180
4	×	70/35	rm	42,5	3082	4385
4	×	95/50	rm	47,5	4208	5800
4	×	120/70	rm	51,5	5388	7225
4	×	150/70	rm	57,0	6540	8710
4	×	185/95	rm	63,5	8159	10700
4	×	240/120	rm	71,0	10546	13935
7	×	1 5/2,5	re	20,8	133	670
12	×	1,5/2,5	re	27,0	205	1050
24	×	1,5/6	re	36,5	413	1900
30	×	1,5/6	re	39,0	499	2200
7	×	2,5/2,5	re	21,2	200	680
12	×	2,5/4	re	27,0	334	1050
24	×	2,5/10	re	37,0	696	1900
30	×	2,5/10	re	39,0	840	2200
