Single Core Multi-Strand PVC Insulated AWG14/AWG12 Thw Cable Wire

Luoyang Sanwu Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Hhouse, Building, Industry
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：BV,BVR-009
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Dayuan
  • Copper Material：Oxygen-Free Copper (99.9% Purity)
  • Color：Black, Red, Blue, Yellow, Green, White
  • Standards：IEC 60227, BS 6004, VDE0281, GB,T 5023, Jb,T8734
  • Voltage：300,500V,450,750V
  • Solid or Flexible：Both Ok
  • Company Nature：Manufacturer and Trading Company
  • Conductor：Annealed Copper Wires, Solid or Stranded
  • Item Name：Electrical Wire PVC Insulation BV,Bvr Cable
  • Features：Flame Retardance, Fire Resistance
  • Max.Operating Temperature：70,90,105 Degree
  • Transport Package：Sample Roll, Plastic Drum, Ploywood Drum, etc
  • Specification：1.5mm2 2.5mm2 4mm2 6mm2 10mm2
  • Trademark：Luoyang Dayuan
  • Origin：Luoyang, China
  • HS Code：85444929
  • Production Capacity：100000 M Per Day

Description

Weight Kg/kmCuAlCuAl1.51/1.380.7 3.3 12.1-0.011 19.2 -1.57/0.520.7 3.5 12.1-0.010 20.6 -2.51/1.780.8 3.9 7.4111.80.010 30.815.0 41/2.250.8 4.4 4.617.390.008545.521.0 61/2.760.8 4.9 3.084.910.0070 65.0 29.0 107/1.351.0 7.0 1.833.080.0065110.0 52.0 167/1.71.0 8.0 1.151.910.0050 170.0 70.0 257/2.141.2 10.0 0.7271.20 0.0050 270.0 110.0 357/2.521.2 11.5 0.5240.8680.0040 364.0 150.0 5019/1.781.4 13.0 0.3870.6410.00455000.0 200.0 7019/2.141.4 15.0 0.2680.4430.0035688.0 269.0 9519/2.521.6 17.5 0.1930.320 0.0035953.0 360.0 12037/2.031.6 19.0 0.1530.2530.00321168.0 449.0 15037/2.251.8 21.0 0.1240.2060.00321466.0 551.0 18537/2.522.0 32.5 0.0990.1640.00321808.0 668.0  BV/bvr Cable data 2:
Norminal Sectional area mm2Conductor No/Dia.mmNominal Insulated thick mmMax overall Dia.mmConductor Resistance at 20°CMin insulated resistance at 70MΩ/KMWeight Kg/km
2.59/0.410.8 4.27.410.01133.0
419/0.520.8 4.84.610.00948.0
619/0.640.8 5.63.080.008468.0
1049/0.641.0 7.61.830.0072115.0
1649/0.641.0 8.81.150.0062176.0
2598/0.581.2 11.0 0.7270.0058272.0
35133/0.581.2 12.50.5240.0052384.0
50133/0.681.4 16.50.3870.0051510.0
70189/0.681.4 16.50.2680.0045714.0
95259/0.681.0 19.50.1390.0035965.0
120259/0.761.8 22.0 0.1530.00321210.0
All the goods are full meter and  working life are 25 years!

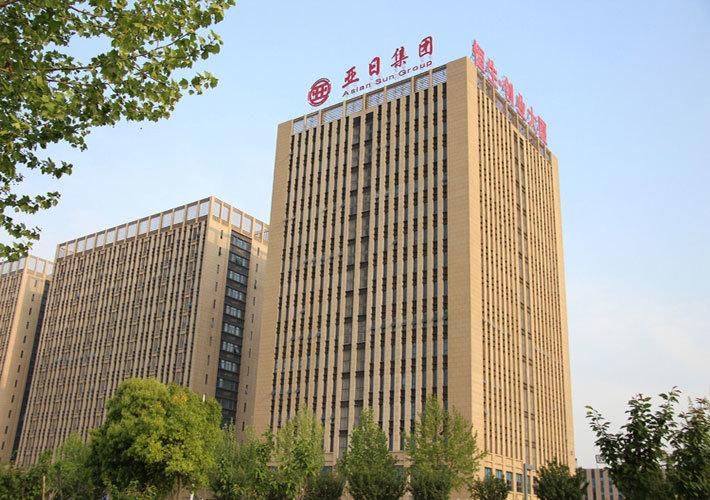

Company Information

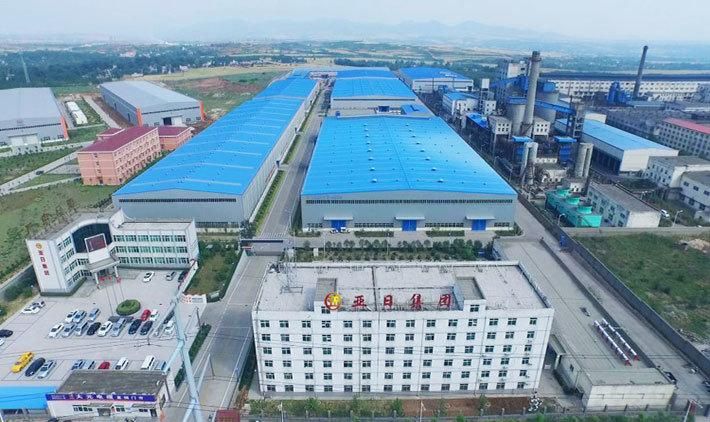

  BV cable  factory and worshop corner
solar cable have one big workshop about 10,000m2,  our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer.  every step is to make sure the delivery time and quality!
 PVC Insulated BV/Bvr House Wiring Electrical Cable
 PVC Insulated BV/Bvr House Wiring Electrical Cable
Packaging & Shipping
 PVC Insulated BV/Bvr House Wiring Electrical Cable
  BV cable  packing, we can also make it as your need for that  we have two professional wooden engineer

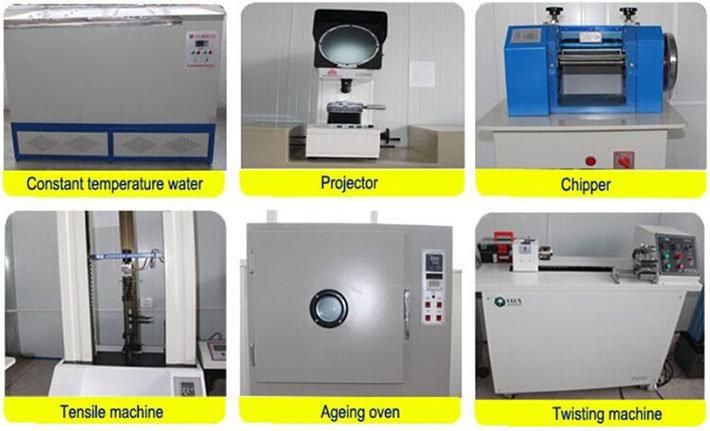

Inspection machine
 PVC Insulated BV/Bvr House Wiring Electrical Cable
BV cable six inspection machine

We inspect every product before deliverying the goods to ensure the quality!
