• Model NO.：aaac
• Wire Core Material：Aluminium Alloy , AAAC
• Certification：ISO, CCC, SGS
• Model：AAAC Conductor
• Brand：Hongda
• Material：All Aluminum Alloy Conductor
• Standards：Is 398 Part 4
• Specification：15mm2 to 767mm2
• Trademark：Hongda Cable
• Origin：China
• HS Code：76149000
• Production Capacity：100km,Day

Basic Info.

Model NO. aaac Wire Core Material Aluminium Alloy / AAAC Certification ISO, CCC, SGS Model AAAC Conductor Brand Hongda Material All Aluminum Alloy Conductor Standards Is 398 Part 4 Specification 15mm2 to 767mm2 Trademark Hongda Cable Origin China HS Code 76149000 Production Capacity 100km/Day

Product Description

Indian Standard (IS 398 PART 4) AAAC All Aluminium Alloy HT Conductors

Description

This conductor is made from aluminium-magnesium-silicon alloy of high electrical conductivity containing enough magnesium silicide to give it better mechanical properties after treatment. These conductors are generally made out of aluminium alloy 6201. AAAC CONDUCTOR has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR CONDUCTOR on equal diameter basis.

AAAC exhibits excellent corrosion resistance specially in sea coast areas and in polluted industrial areas due to absence of steel core.

STANDARDS

Indian Standard :  IS 398 PART 4

Products and specifications

Name ref.	Conductor cross-section (mm2)	Stranding (No./mm)	Nominal overall diameter (mm)	Approximate weight (kg/km)	Current Carrying Capacity at 45ºC (Amp)
Mole	15	3/2.50	5.38	40.15	65
Squirrel	22	7/2.00	6.00	60.16	105
Weasel	34	7/2.50	7.50	94.00	155
Rabbit	55	7/3.15	9.45	149.20	210
Raccoon	80	7/3.81	11.43	218.26	290
Dog	100	7/4.26	12.78	272.86	325
Dog-up	125	19/2.89	14.45	342.51	360
Coyote	148	19/3.15	15.75	406.91	400
Wolf	173	19/3.40	17.0	474.02	460
Wolf-up	200	19/3.66	18.3	549.40	480
Panther	232	19/3.94	19.75	636.63	520
Panther-up1	288	37/3.15	22.05	794.05	610
Panther-up2	346	37/3.45	24.15	952.56	720
Kundah	400	37/3.71	25.97	1101.63	740
Zebra	465	37/4.00	28.0	1280.50	800
Zebra-up	525	61/3.31	29.79	1448.39	875
Moose	570	61/3.45	31.05	1573.71	900
Morkulla	604	61/3.55	31.95	1666.00	920
Moose-up	642	61/3.66	32.94	1771.36	940
Morkulla-up	695	61/3.81	34.29	1919.13	960
Bersimis	767	61/4.00	36.0	2115.54	1000

ELECTRICAL PERFORMANCE DATA

Current ratings are based in an ambient temperature of 30°C, a maximum conductor temperature of 75°C, rural weathered, summer noon and intensity of solar radiation 1000 W/m².



Why Choose Us ?

Quality And Safety

• Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.

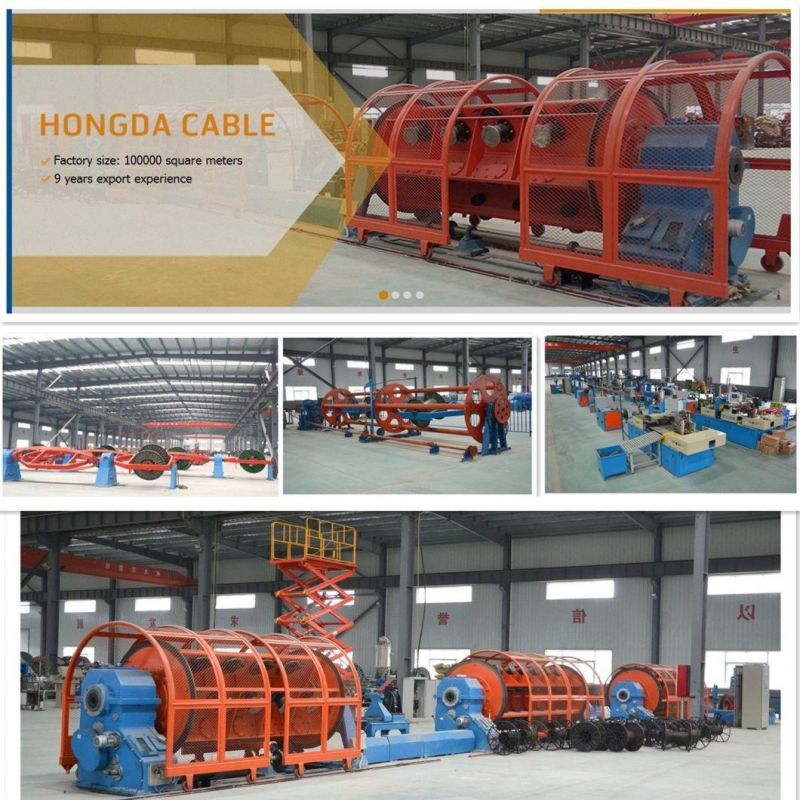

• Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
• With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
• For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.

Complete Inventory And Fast Delivery

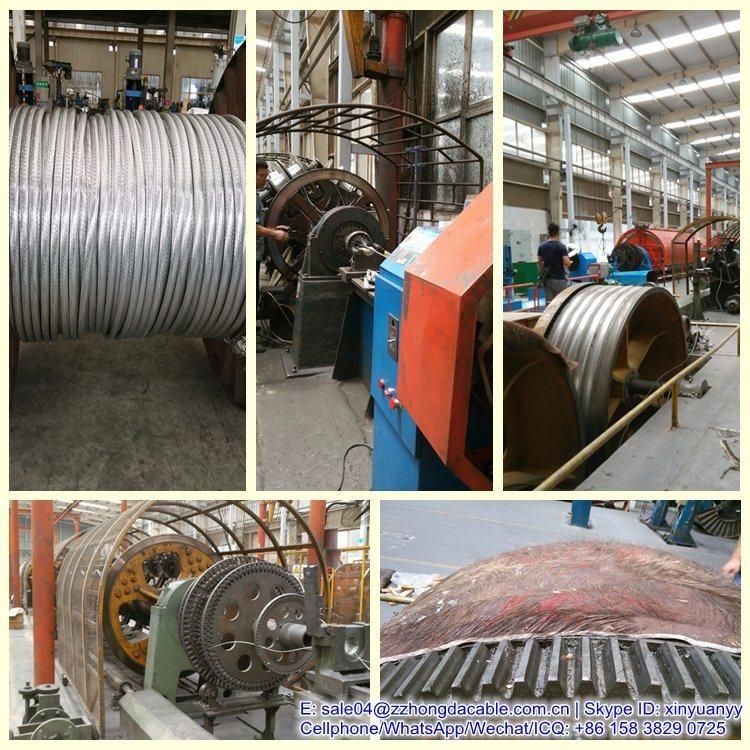

• Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
