35kv ACSR Tree Wire Cable 1/0 AWG Cable Sac Multi-Layer Covered Aerial Mv Spacer Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：HDPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：SAC Cable
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC
  • Model：Sac Cable
  • Brand：OEM
  • Transport Package：Wooden Drum
  • Specification：2.5~400sqmm
  • Trademark：OEM
  • Origin：China(Mainland)
  • HS Code：8544492100
  • Production Capacity：500 Kilometer,Month

Description

NUMBER OF CORESingle core1. CONDUCTOR
  • Compact stranded hard drawn Aluminum wire or ACSR
  • Conductor sizes 35 mm2 up to 240 mm2
2. CONDUCTOR SHIELDSemi conducting cross-linked polyethylene3. INSULATION
  • Cross-linked polyethylene
  • Colour : Natural
4. SHEATH
  • Track resistant cross-linked polyethylene
  • Colour : Black
CLASSIFICATION
  • Normal operation 90 °C
  • Emergency overload conditions 130 °C
  • Short circuit conditions 250°C
  • Voltage rating 25 Kv.( Phase to Phase )
TESTING VOLTAGE48KV for 5 minutesREFERENCEICEA S-66-524 /MEA/PEA

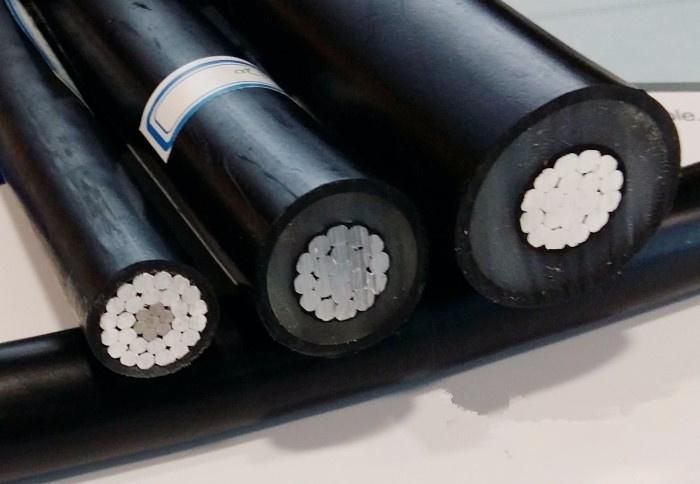

35kv ACSR Tree Wire Cable 1/0 AWG Cable Sac Multi-Layer Covered Aerial Mv Spacer Cable

Nominal Sectional Area
mm2Minimum Number of wire
NODiameter of Conductor (approx.)
mmThickness of Insulation
mmThickness of sheath
mmOverall Diameter (approx.)
mmMaximum DC. conductor resistance at 20°C
Ω / kmAllowable ampacities in free air at 40°C ambient
ACable weight (approx.)
kg / km2575.903.183.1820.01.20001193173576.953.183.1821.00.86801493905078.333.183.1822.00.641018644070189.733.183.1824.50.4430229540951811.453.183.1826.00.32002796401201812.953.183.1827.00.25303217401501814.273.183.1829.50.20603718501853415.983.183.1831.00.16404299902403418.473.183.1833.50.12505201,190
