Cable & Wire

NYY PVC Insulated and Sheathed 0.6/1kV Cable

Jiangsu Hengxin Technology Co., Ltd.
  • Application:Power Station, Telecommunication, Telecommunication Networks
  • Voltage:0.6,1kV
  • Current:DC & AC
  • Insulation Material:PVC
  • Sheath Material:PVC
  • Material Shape:Round Wire

Base Info

  • Model NO.:NYY
  • Wire Core Material:Bare Copper Wire
  • Certification:ISO
  • Model:NYY
  • Brand:Hengxin
  • Transport Package:Drum , Coil
  • Specification:1~400
  • Trademark:HENGXIN
  • Origin:Jiangsu Province, China
  • HS Code:8544492100
  • Production Capacity:200km,Month

Description

Basic Info.

Model NO. NYY Wire Core Material Bare Copper Wire Certification ISO Model NYY Brand Hengxin Transport Package Drum / Coil Specification 1~400 Trademark HENGXIN Origin Jiangsu Province, China HS Code 8544492100 Production Capacity 200km/Month

Product Description

PRODUCT DESCRIPTION
NYY PVC insulated and sheathed 0.6/1kV cable

STANDARD: BS EN/IEC 60502-1, EN/IEC 60332-1-2

TECHNICAL DATA:
Voltage Rating U0/U: 0.6/1kV
Highest permissible conductor temperature:
• continuous operation: 70°C
• short circuit (duration up to 5 s): 160 °C
Lowest recommended temperature:
• during laying: -15°C
Minimum permissible bending radius: 8x D

CONSTRUCTION:
1. Conductor: Class 1 or Class 2 copper conductor
2. Insulation: PVC
3. Filler: PVC
4. Sheath: PVC


Sheath Colour: Black, or customized

Size:
No. of coresCross sectional area, in mm2
12.5~300
21.5~16
31.5~95
41.5~240
51.5~25
7~271.5, 2.5


ELECTRICAL PROPERTIES:
Test voltage: 3500V/5min

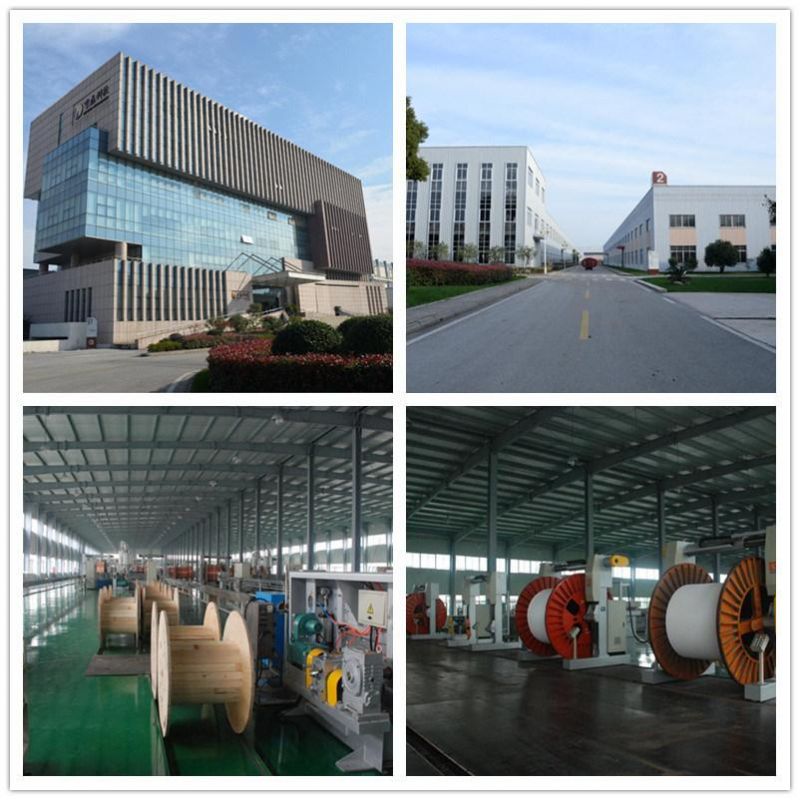

OUR COMPANY/HENGXIN TECHNOLOGY
NYY PVC Insulated and Sheathed 0.6/1kV Cable
Hengxin was listed on the Main Board of the Singapore Exchange Securities Trading Limited (SGX-ST) on 11 May 2006, and was primarily dual listed on the Main Board of The Stock Exchange of Hong Kong Limited (SEHK) on 23 December 2010. Founded in 1996 with its manufacturing base in Yixing City alongside Taihu Lake, Jiangsu Province, China, it is involved in the research, manufacture and sale of antennas, RF Cables and accessories for wireless communication applications, accessories consisting of connector, jumper cable, arrester, coupler and splitter, etc. Quality and safety are handled with the highest regard by Hengxin. Since 1996, it has been certified with ISO9001 Quality Management System Certification, ISO14001 Environment Management System, OHSAS 18001 Occupational Health and Safety Management Certification, and has also been appraised as a Hi-Tech Enterprise of China National Torch Planning , obtained 29 utility type patents from the Property Rights Bureau of National Information.

OUR EXHIBITIONS
NYY PVC Insulated and Sheathed 0.6/1kV Cable

OUR CERTIFICATES
NYY PVC Insulated and Sheathed 0.6/1kV Cable


FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.
Q: May I visit your factory?
A: Sure, welcome any time with prior notice.
Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.
Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.
Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.
Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
