100m FTTH Fiber Optic Drop Wire Cable Patchcord G657A Sc Upc Drop Cable Patch Cord with Optical Fiber Cable Reel Roll
TOPNET (SHENZHEN) COMMUNICATION CO.,LTD- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Flat Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：FTTH Drop Cable Patch Cord
- Core：Single Core
- Certification：RoHS, UL, CE
- Brand：OEM
- Sheath Material：LSZH
- Fiber Type Sm：G652D,G657A1,G657A2,G657b3
- Fiber Type mm：Om1, Om2, Om3, Om4, Om5
- Cord Number：1-12 Cores

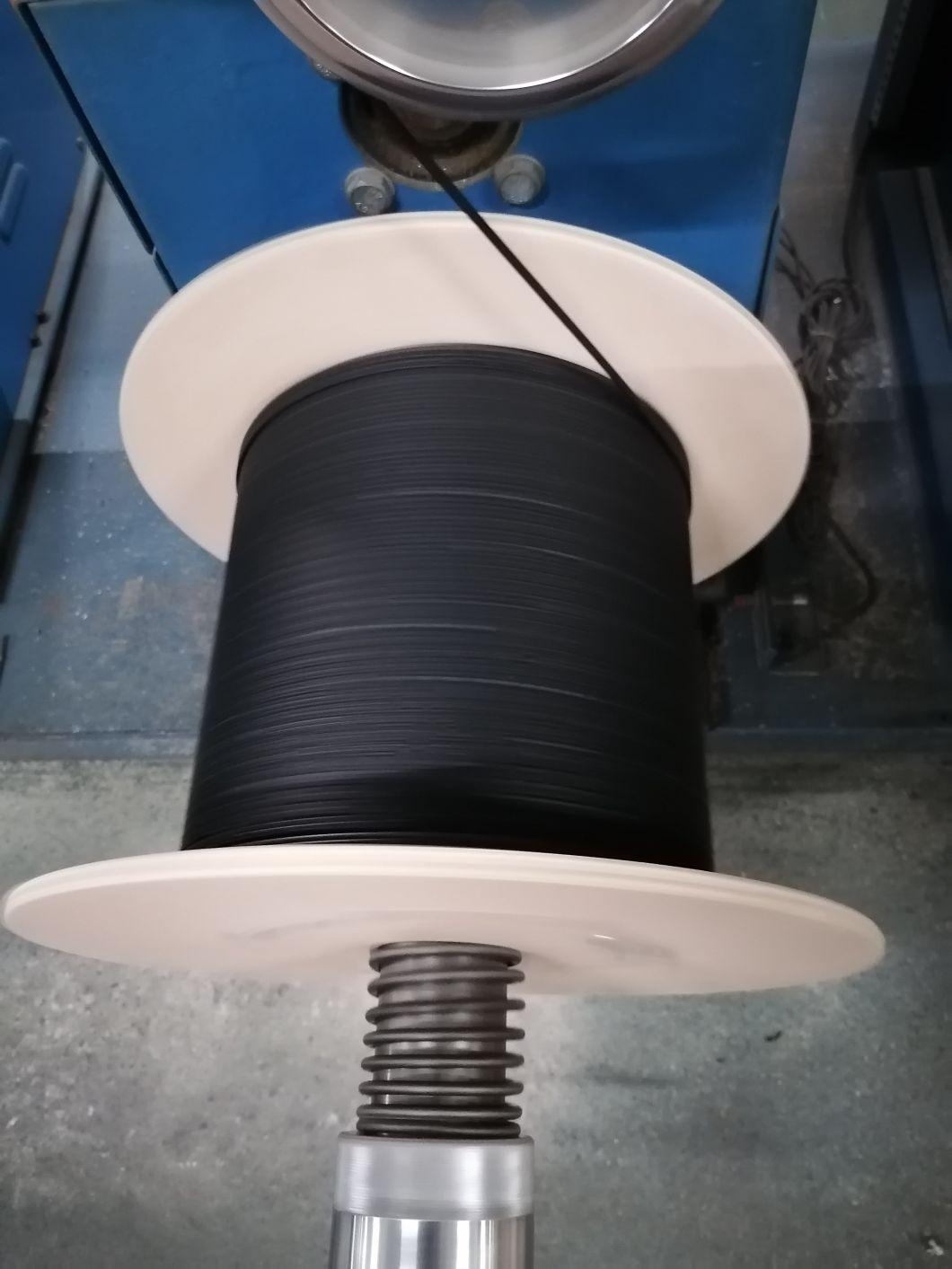

- Transport Package：Wooden Drum
- Specification：2.0*3.0mm,2.0*5.0mm
- Trademark：Topnet
- Origin：China
- HS Code：8544700000
- Production Capacity：8000km Per Month
Description
CharacteristicSM , MM Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 Diameter(mm) 2.0*3.0/2.0*5.0 Polishing grade SM UPC MM UPC SM APC Insertion loss Grade B ≤0.15dB ≤0.1dB ≤0.15dB Grade C ≤0.30dB ≤0.30dB ≤0.30dB Return loss ≥55dB ≥30dB ≥65dB Interchangeability ≤0.1dB Repeatability ≤0.1dB Operation temperature (ºC) -20°C ~ +70°C Storage temperature (ºC) -40°C ~ +80°C SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC FU: FC/UPC FA: FC/APC TU: ST/UPC TA: ST/APC EU: E2000/UPC EA: E2000/APC, etc. Connector 2 SU: SC/UPC SA: SC/APC LU: LC/UPC LA: LC/APC FU: FC/UPC FA: FC/APC TU: ST/UPC TA: ST/APC EU: E2000/UPC EA: E2000/APC, etc. Fiber Count SI: Simplex Fiber Type 2D: SM G.652D (standard) 7A1: SM G.657A1 7A2: SM G.657A2 OM1: MM 62.5/125um OM2: MM 50/125um OM3: MM 50/125um OM4: MM 50/125um OM5: MM 50/125um Cable Length 1: 1m (standard) 1.5: 1.5m 2: 2m, etc Cable Diameter 2: 2.0mm 3: 3.0mm (standard) Jacket Material L: LSZH
Package
Package
