LV Aerial Bundled Cable ABC Three Phase Aluminum Conductor 3X50+1X54.6mm2 600/1000V
Jiangsu Grand Cable Co., Ltd.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,A
- Material Shape：Round Wire
Base Info
- Model NO.：ABC
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Model：ABC
- Brand：Grandcable
- Transport Package：Fumigated Drums
- Trademark：Grandcable
- Origin：Jiangsu, China
- HS Code：8544492100
- Production Capacity：78000 Km Per Year
Description
2.Netural Conductor (AAAC Non-Compacted)
The neutral shall be an All-Aluminium-Alloy conductor composed of wires drawn from rod, which is manufactured in a continuous casting and rolling procedure. The properties for the individual wires before stranding shall be
3.Insulation
The Insulating Material shall be of black weather resistant cross linked thermosetting polyethylene (XLPE) conforming to IEC60502/IEC60811/ ASTM D 1603 and it shall be fully pressure extruded on the bare conductors of the phases / street lamp / neutral.
Dimenison Characteristics:
| Article | Unit | Offered Value |
| ABC Twisted cable 3x50mm² + 1x54,6 Alec | ||
| Standard | NFC 33209 or equivalent | |
| Material | ALUMINIUM | |
| section | mm² | 50 |
| number of cores | n | 7 |
| Min Diameter | mm | 7.9 |
| Max Diameter | mm | 8.4 |
| Max Linear resistance of CC at 20°C | Ohm/km | 0.641 |
| Breaking load | daN | 620 |
| Neutral/support Conductor of | ||
| material | ALMELEC | |
| section | mm² | 54.6 |
| number of cores | n | 7 |
| Min Diameter | mm | 9.2 |
| Max Diameter | mm | 9.6 |
| Max Linear resistance of CC at 20°C | Ohm/km | 0.63 |
| Breaking load | daN | 1660 |
| Insulating Sheath thickness | mm | 1.6 |
| Overall Diameter of cable | mm | 12.3 to 13 |

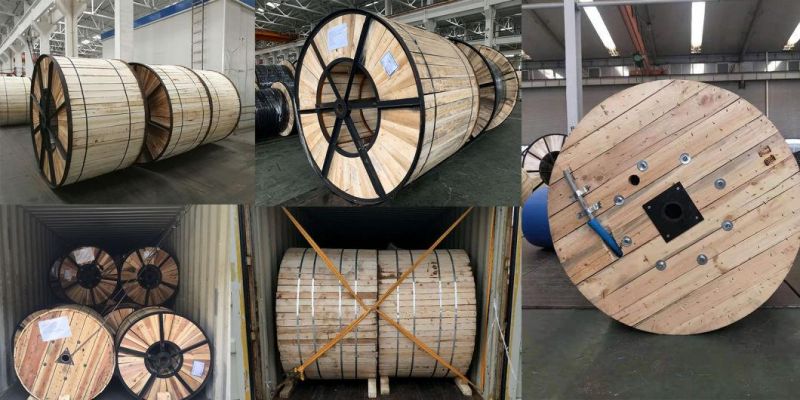

Packaging Photos:

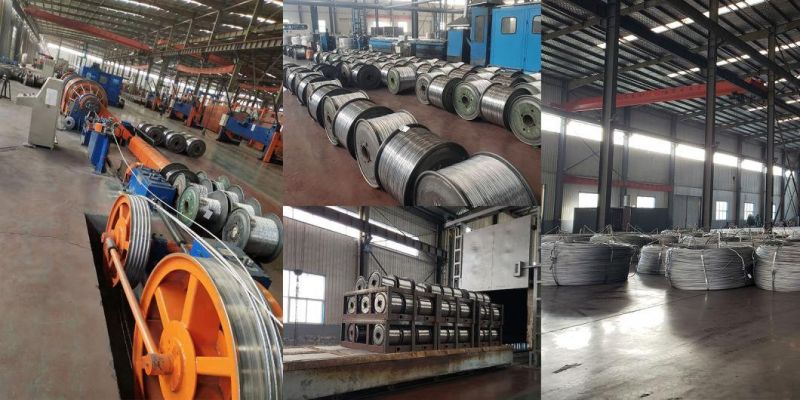

Workshop View:
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
