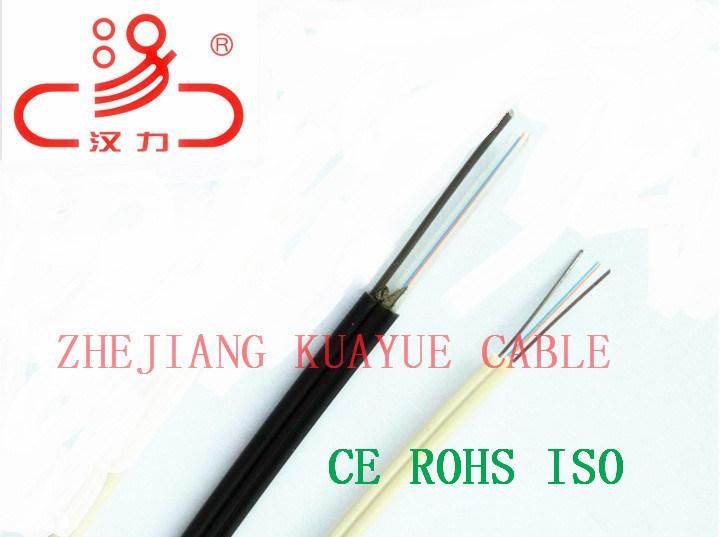

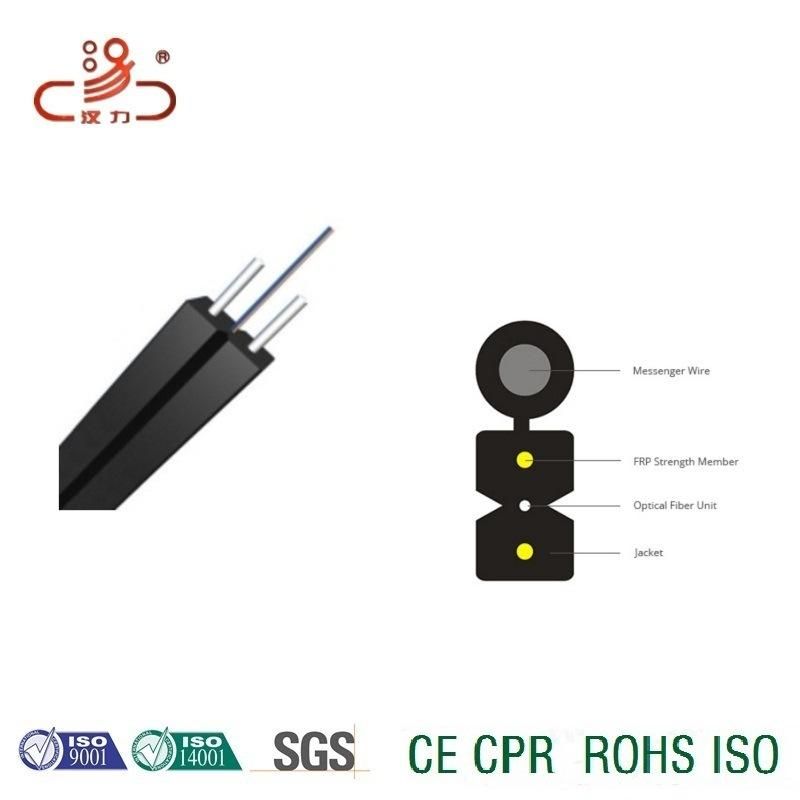

FTTH Communication and Telecom Drop Optical Fiber Cable 1 2 3 Core

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Communication, Sensor, Medicine
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Flat Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：Fiber Optic Cable
  • Core：Double Core
  • Certification：RoHS, CE, ISO9001
  • Brand：OEM
  • Sheath Material：PC
  • Transport Package：1000
  • Specification：80X80X50CM
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

Basic Info.

Model NO. Fiber Optic Cable Core Double Core Certification RoHS, CE, ISO9001 Brand OEM Sheath Material PC Transport Package 1000 Specification 80X80X50CM Trademark hanli Origin Zhejiang Production Capacity 3000000m/Month

Product Description

Optical Fiber Technical Date:


ITEMS		UNITSFiber SPECIFICATION
Fiber AttenuationdB/km≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersionps/nm.km≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelengthnm1300 ~ 1324
Zero Dispersion Slopeps/nm2.km≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)nm≤1260
Mode Field Diameterum9.2±0.5
Mode Field Concentricityum≤0.8
Cladding Diameterum125±1.0
Cladding Non-circularity%≤1.0
Coating cladding concentricity errorum≤12.5
Coating Diameterum245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turndB≤0.5 at 1550nm
Proof Testkpsi≥100


FTTH Communication and Telecom Drop Optical Fiber Cable 1 2 3 Core
FTTH Communication and Telecom Drop Optical Fiber Cable 1 2 3 Core

FTTH Communication and Telecom Drop Optical Fiber Cable 1 2 3 Core
