Cable Aerial Twists NFC 33 226 12/20 (24) Kv
YIFANG ELECTRIC GROUP INC.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PE
- Material Shape：Round Wire
Base Info
- Model NO.：JKLGYJ-12,20
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS
- Model：Jklgyj-12,20
- Brand：Yifang
- Product Name：Cable Aerial Twists NFC 33 226 12,20 (24) Kv
- Transport Package：wooden drum, steel drum, wooden&steel drum
- Specification：IEC, BS, DIN, ASTM, JIS, GOST, NFC, CSA, AS, etc
- Trademark：YIFANG
- Origin：ZHENGZHOU CHINA
- HS Code：8544601200
- Production Capacity：10000 M,Month
Description
Basic Info.
Model NO. JKLGYJ-12/20 Wire Core Material Aluminum Certification ISO, CCC, CE, RoHS Model Jklgyj-12/20 Brand Yifang Product Name Cable Aerial Twists NFC 33 226 12/20 (24) Kv Transport Package wooden drum, steel drum, wooden&steel drum Specification IEC, BS, DIN, ASTM, JIS, GOST, NFC, CSA, AS, etc Trademark YIFANG Origin ZHENGZHOU CHINA HS Code 8544601200 Production Capacity 10000 M/MonthProduct Description
Product Details
Cable Aerial Twists NFC 33 226 12/20 (24) KV

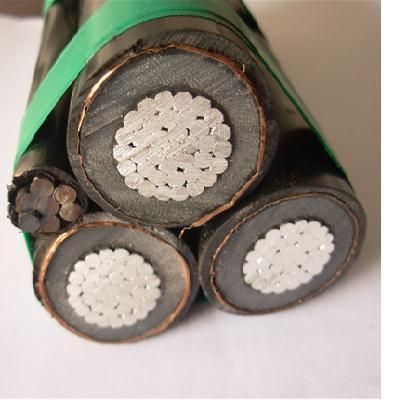

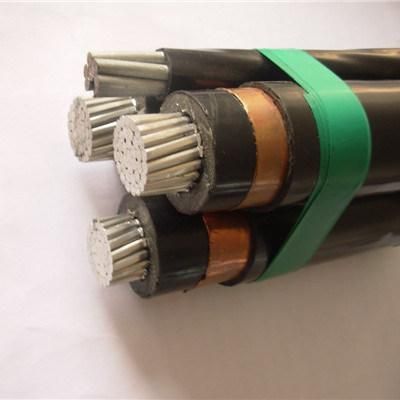

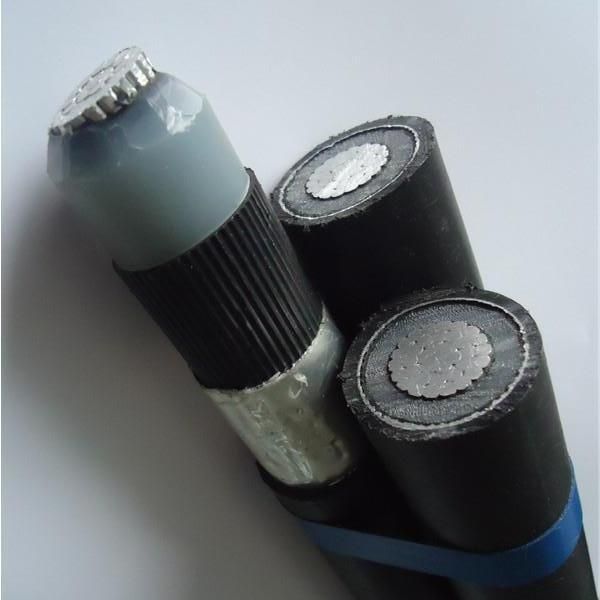

It consists of 3 phase conductors twisted around a sheathed steel carrier.
The aluminum screen is designed to ground the short circuit currents, ie 1000 A for 1 second for underground networks.
Product Introduction
ELECTRICAL SPECIFICATIONS
The short circuit characteristics are calculated according to IEC 60949.
- The resistance to the intensity in C.C. (1s) characterizes the current in the screen.
- The permissible C.C. current characterizes the maximum current in the conductor for 1s.
Product Parameters
| Sizes | Bundle Dia.(mm) | Standard Length(m) |
| 3x1x50+P50 | 58.0mm | 1000 |
| 3x1x95+P50 | 66.0mm | 500 |
| 3x1x150+P50 | 77.0mm | 500 |
Product Details Show
