Earth Wire 3#17 AWG Stranded Wire Copper Clad Steel Cable
GENERAL CLAD CO., LTD.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Material Shape：Round Wire
- Wire Core Material：Bare Copper Wire
Base Info
- Certification：ISO, CE
- Model：3#5, 3#6, 3#7, 3#8, 3#9, 3#10, 3#12, 7#4, 7#5,
- Brand：General Clad
- Size：3#5, 3#6, 3#7, 3#8, 3#9, 3#10, 3#12, 7#4,
- Conductor：Copper or Copper Clad
- No. of Cores：One Core or Multi-Cores
- Service：OEM&ODM Service
- Standard：ASTM B228
- Transport Package：Drum or According Requirement of The Customer
- Specification：40% IACS
- Trademark：General Clad
- Origin：China
- Production Capacity：200tons,Month
Description
Application field:
Earthing, Grounding, Utility, Railway messenger
Size available:
3#5,3#6,3#7,3#8,3#9,3#10,3#12, 7#4,7#5,7#6,7#7,7#8,7#9,7#10,7#12,19#5,19#6,19#7,19#8,19#9,19#10
Size available (Copper Conductor Equivalency):
16 mm² ,35 mm²,50 mm²,70 mm²,95 mm²,120 mm²
Temper offered:
Hard drawn /Annealed
Strength offered:
Low carbon, High strength, Extra high strength.
Standard:
ASTM B228

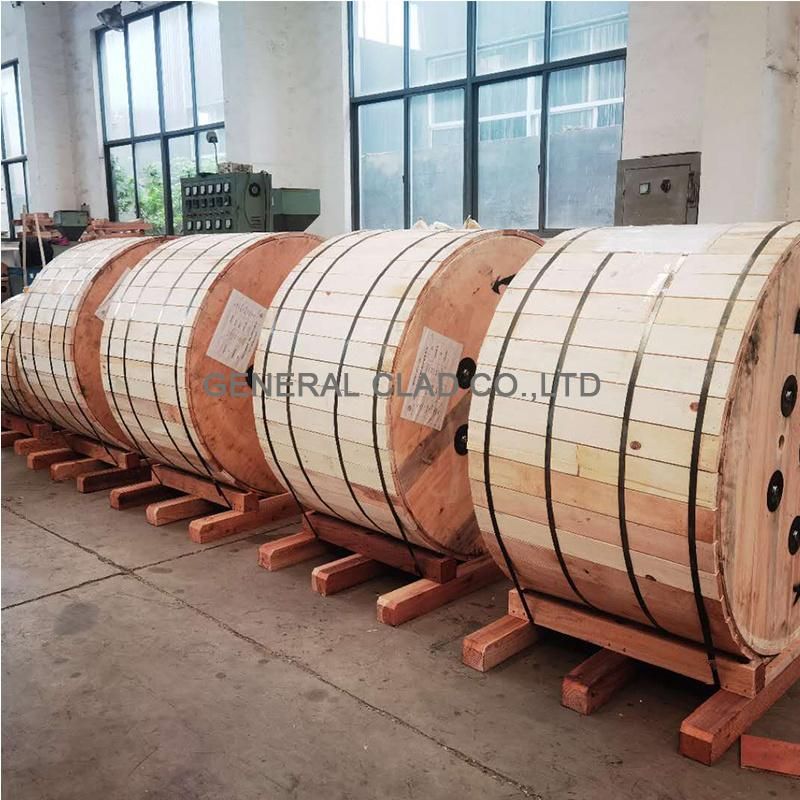

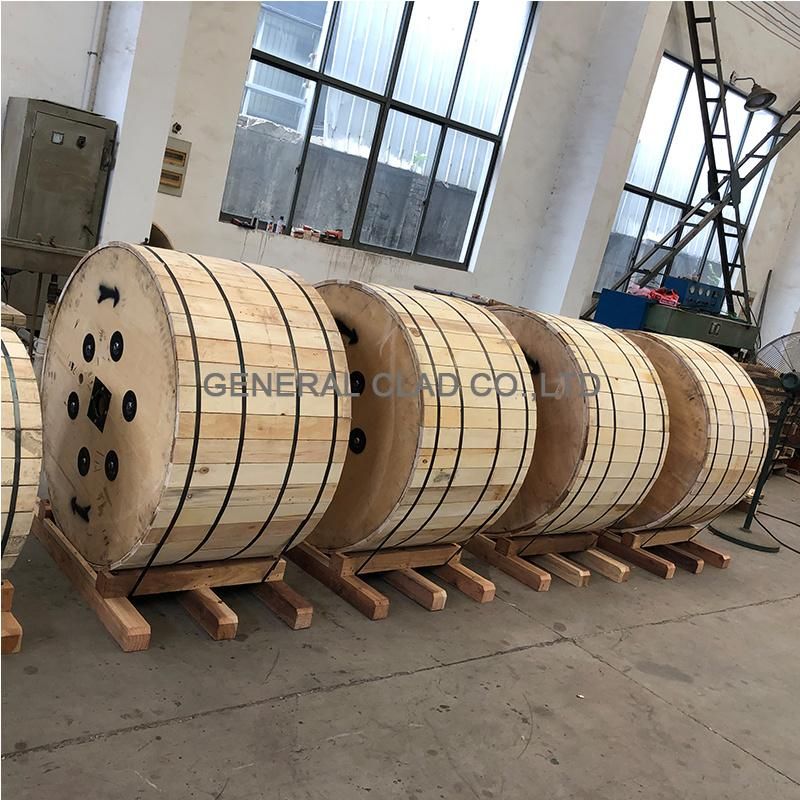

Package:
Wire will be loaded on plywood reel with 1KM,2KM per unit and put on plywood pallets which is suitable for sea transportation.
(Both eye to wall and eye to sky is acceptable.)
Package
