• Model NO.：KL-500
• Splicer Heating Time：30s
• MOQ：1PC
• Splicer Time：9s
• Weight：1.55kg Including Battery
• Power：AC 100-240V with AC Adapter
• Protection Sleeve：60mm or 40mm
• Transport Package：Standard Package
• Specification：25(L)*105(W)*113(H)mm
• Trademark：Softel
• Origin：China
• HS Code：85176229
• Production Capacity：500 Set Per Week
• Package size per unit product：45.00cm * 45.00cm * 35.00cm
• Gross weight per unit product：6.000kg

Basic Info.

Model NO. KL-500 Splicer Heating Time 30s MOQ 1PC Splicer Time 9s Weight 1.55kg Including Battery Power AC 100-240V with AC Adapter Protection Sleeve 60mm or 40mm Transport Package Standard Package Specification 25(L)*105(W)*113(H)mm Trademark Softel Origin China HS Code 85176229 Production Capacity 500 Set Per Week

Packaging & Delivery

Package size per unit product 45.00cm * 45.00cm * 35.00cm Gross weight per unit product 6.000kg

Product Description

 Kl-500 Fiber Optic Fusion Splicer Maquina fusionadora de fibra optica

Summery

The device's body is smaller than FSP-1's body (about 1/3).
-Fiber core can be displayed clearly on the 5 inch color LCD monitor.
-Single X or Y view and X & Y view simultaneously.
-Auto check quality of cleaved end face .
-Auto select best splicing program
-9 seconds splice time and 30 seconds heat time

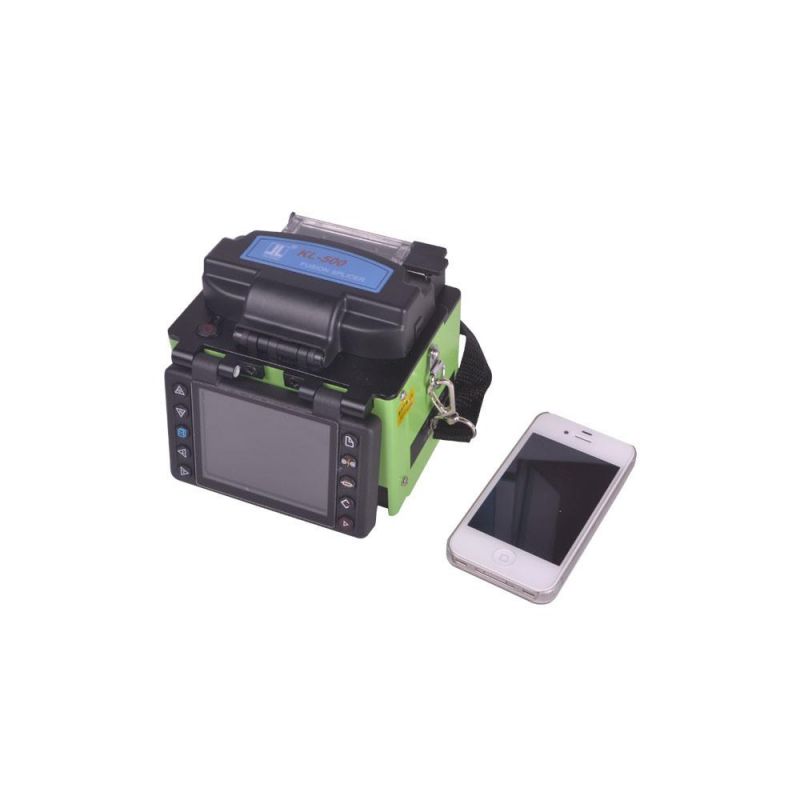

-Small bulk and light weight
-5 inch color LCD monitor with clear digital image display
-Simple operation menu

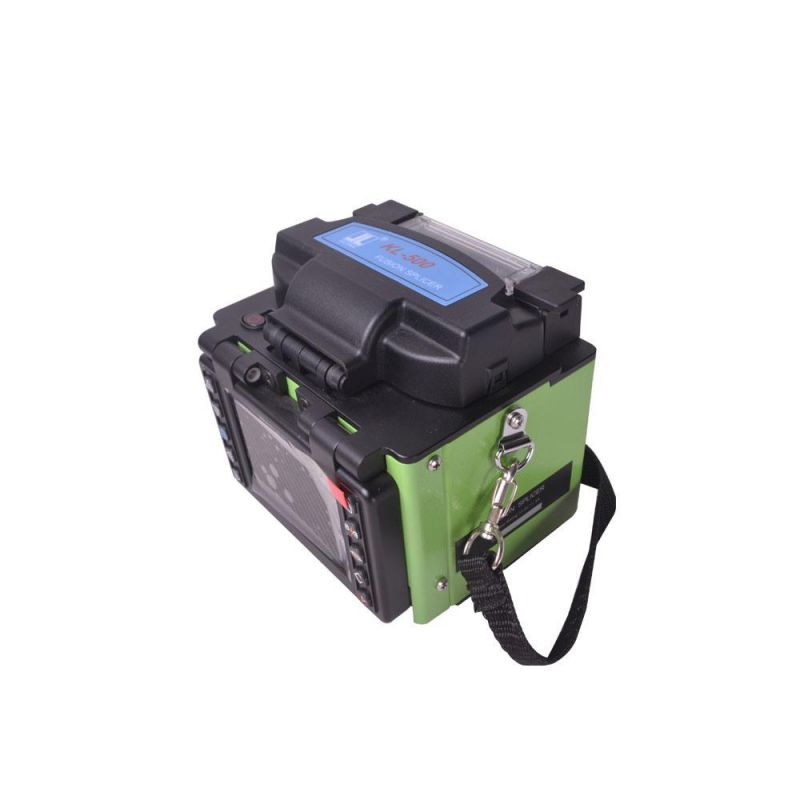

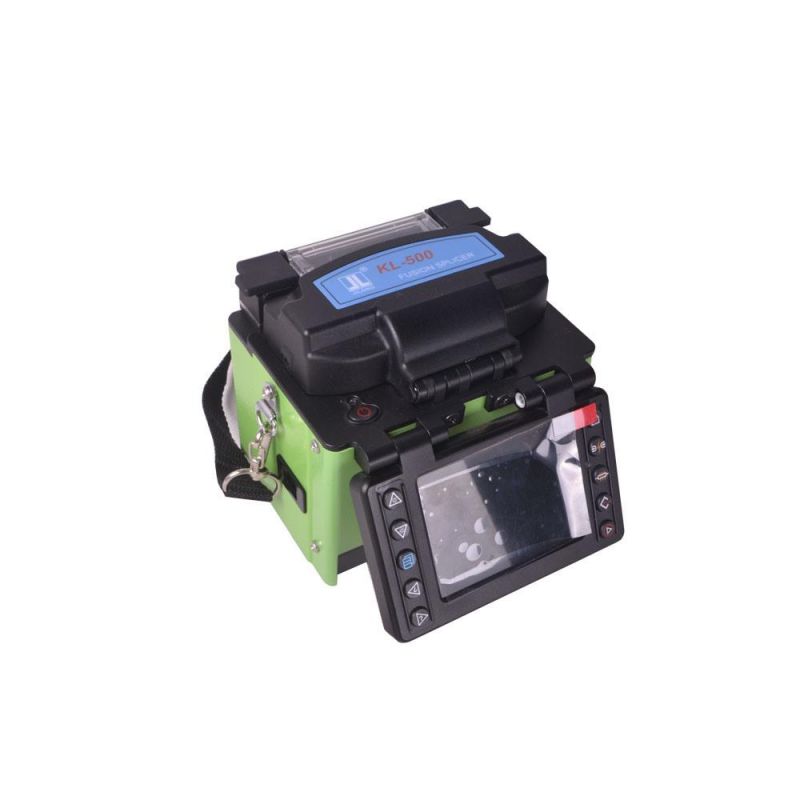

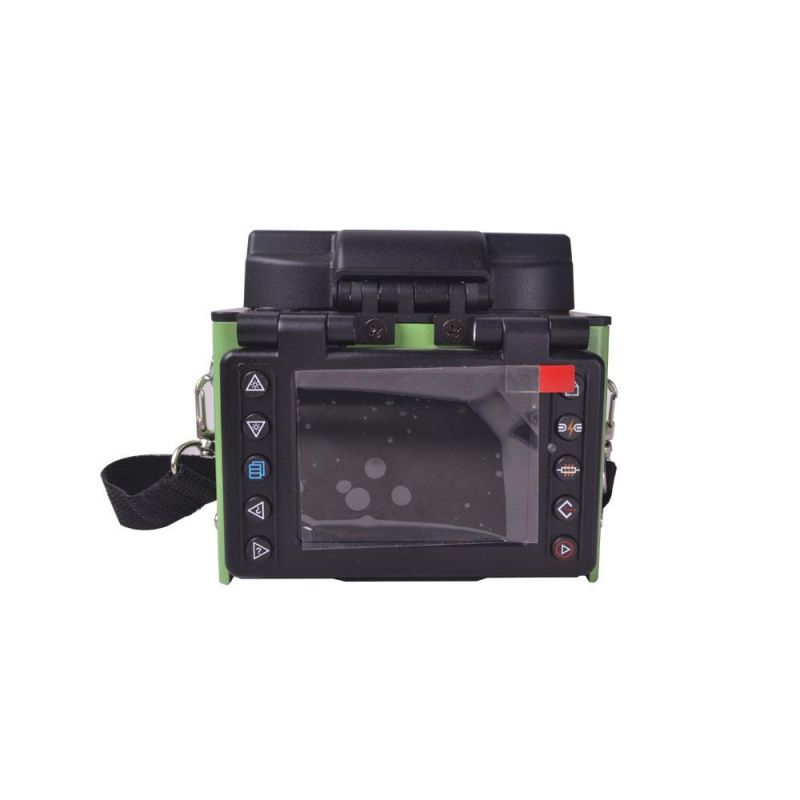

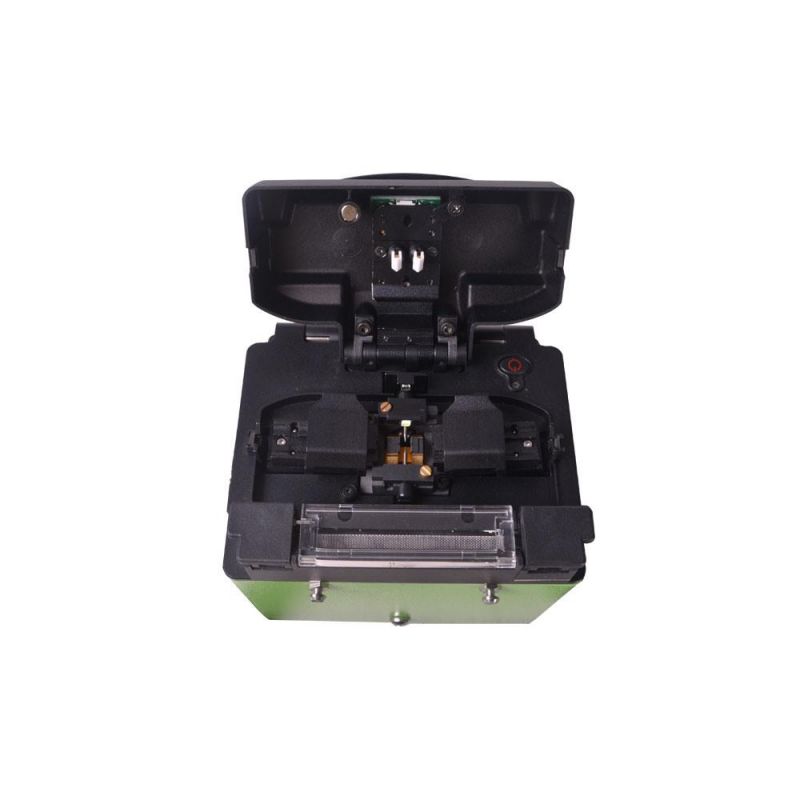

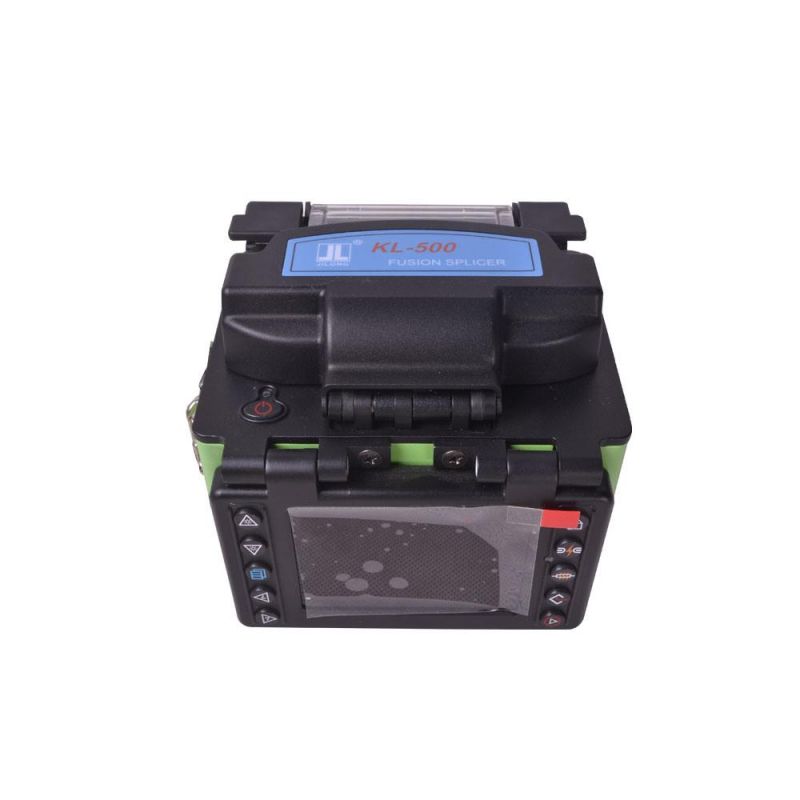

Product Display







Specifications

Applicable fibers	SM MM DS NZDS
Fiber diameter	Cladding diameter:80-150μm;Coating diameter:100-1000μm
Fiber aligning method	Meticulous,Core,Clad,Manual
Actual average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Typical splicing time	Typical 9 sec (standard SM fiber)
Tube typical heating time	Typical 30 sec
Storage of splice result	4000 results, 20 parameter per result
Fiber image magnification	200X (X or Y view),50X (X and Y view)
Battery capacity	Typical 300 cycles (splice/tube heat with inner Li-battery)
Monitor	3.5 inch TFT color LCD monitor
Power supply	AC 100-240V with AC adapter inner Li-battery (5200mAH)
Dimension	25mm(L)×105mm(W)×113mm(H)
Fiber cleaved length	8-16mm (Coating diameter:250μm)
Fiber count	Single
Return loss	>60dB
Splicing mode	Auto Calibrate Normal Special
Splicing program	53 (templet), 40(user)
Protection sleeve length	60mm, 40mm
Tube heating program	9 (templet),24(user)
Tension test	2N
Electrode life	2500
Terminal	USB
Operating condition	0-5000m above sea level, -10-50° Max wind velocity of 15m/s
Weight	1.55Kg including battery

Function Comparision of Jilong Fusion Splicer
 Function Comparision of Jilong Fusion Splicer

Function	KL-280G	KL-280	KL-300T	KL-500
Display fiber cleaved angle	-	-	√	√
Display fiber offset angle	-	-	√	√
Display core offset	-	-	√	√
Display clad offset	-	-	√	√
Splicing mode (Auto, Calibrate ,Normal ,Special)	√	-	√	√
Fiber aligning method (Core,Clad,Manual)	√	-	√	√
Arc strength automatic adjustment	√	-	√	√
Image turn over	-	√	√	√
Fiber angle limit	-	-	√	√
Display inside temperature	-	-	√	√
Display ambient temperature	-	-	√	√
Display heater temperature	-	-	√	√
Display air pressure	-	-	√	√
Display battery voltage	-	-	√	√
Taper splice	-	-	√	√
Sleep	-	-	√	√
Auto shut down	-	-	√	√
Software upgrade via USB interface	√	-	√	√
