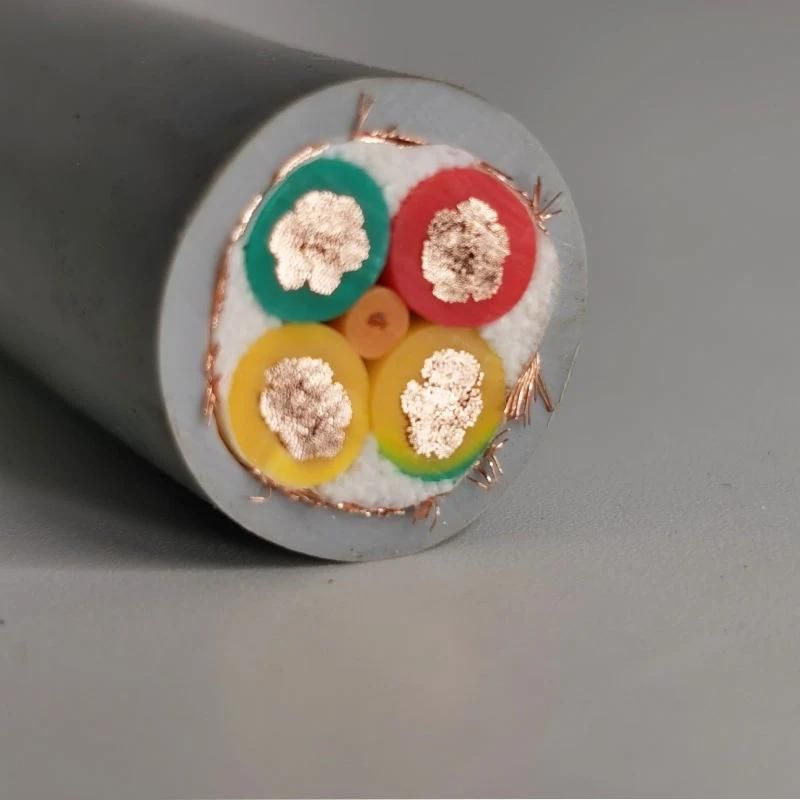

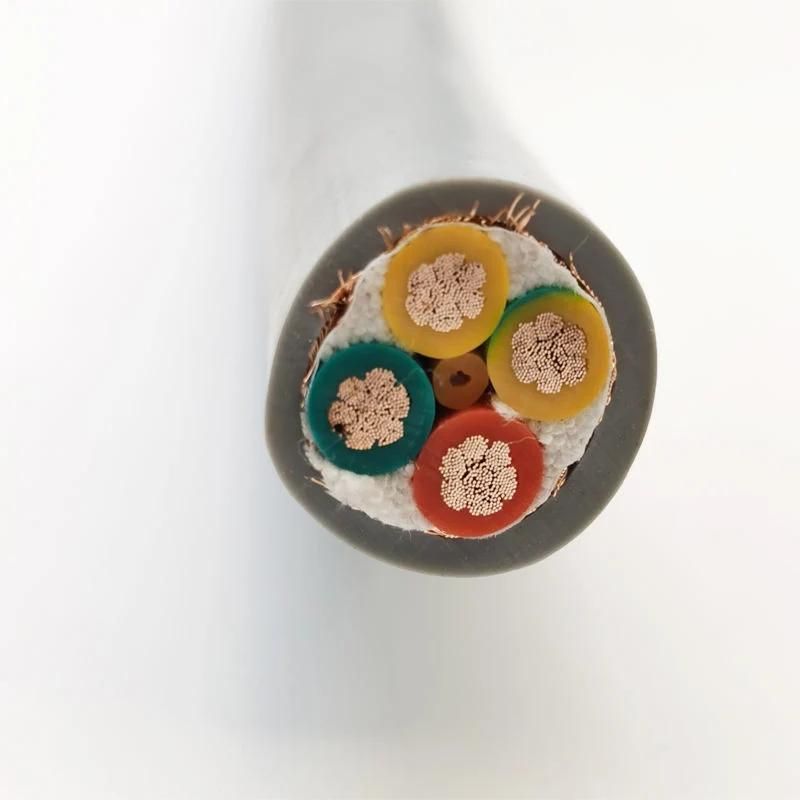

Shanghai Cable Manufacturing LSZH Compound 0.6/1kv Rubber Control Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：LSZH Compound
  • Insulation Material：LSZH Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：FG16OH2M16
  • Range of Application：LSZH
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFG16OH2M16 LSZH Cable ConductorCopper (as client's required)InsulationLSZH compound (as client's required)Outer SheathLSZH compound (as client's required)Rated Voltage600/1000 VTest Voltage4000 VRated VoltageIn motion: 0°C to +90°CBending RadiusØ x 8ColorOptionalApplicationEnergy cables for power supply in construction works that comply with the Construction Products Regulation (CPR), with the aim of limiting the spread of fire, the production and diffusion of fumes and acidity. Suitable for bundle installation in environments with high risk in case of fire due to over crowding, long evacuation time in case of fire and risk of damage to animals and things, public entertainment venues (CEI 64- 54) and entertainment venues, shopping centers (CEI 64-51), hotel facilities (CEI 64-55). Suitable for indoor or outdoor environments, even when wet, for fixed installation in open air, in tube or pipes/conduits, on walls and metal structures or suspended.
