• Model NO.：Ethernet Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Model：S,FTP Cat7 Cable
• Brand：Risun or OEM
• Insulation：Foam PE
• Conductor：23AWG
• Drain Wire：Tc
• Inner Pair Shielding：Aluminum Foil
• Outer Shield Material：Tc Braiding
• Transport Package：305m,Wooden Drum
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Ethernet Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model S/FTP Cat7 Cable Brand Risun or OEM Insulation Foam PE Conductor 23AWG Drain Wire Tc Inner Pair Shielding Aluminum Foil Outer Shield Material Tc Braiding Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description



CAT7 10G Indoor/Outdoor Dual Shielded S/FTP Bulk Ethernet Cable

Our indoor/outdoor CAT7 cable with its dual shielding is ideal for high performance data communications for voice, data, video and security capabilities. Our CAT7 cable is ideal for your network installation and applications. Whether you are wiring your home, office or entire campus, we have the solution that's right for you.

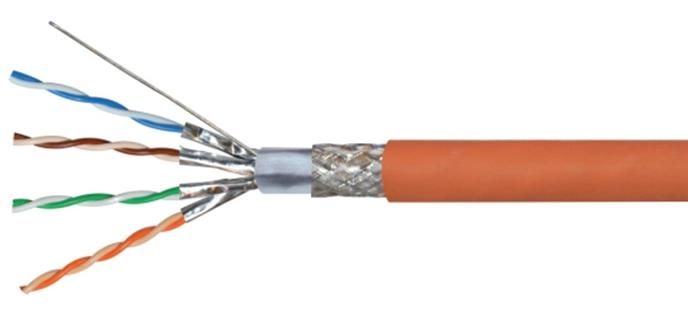

This indoor/outdoor CAT7 cable is a high speed 10 Gigabit Bulk Cable which consists of a 4 Pair / 8 Conductor configuration. These twisted pairs are individually shielded in order to repel electromagnetic interference (EMI) in electrically noisy environments. This CAT7 Cable is designed with an Overall Tin-Copper Braid for extra interference protection. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our CAT7 Cable is 23AWG and comprised of Solid-Bare Copper Conductors with a black low smoke zero halogen (LSZH) Jacket. This cable is only available in 1000' increments on a Wooden Spool.

Feature

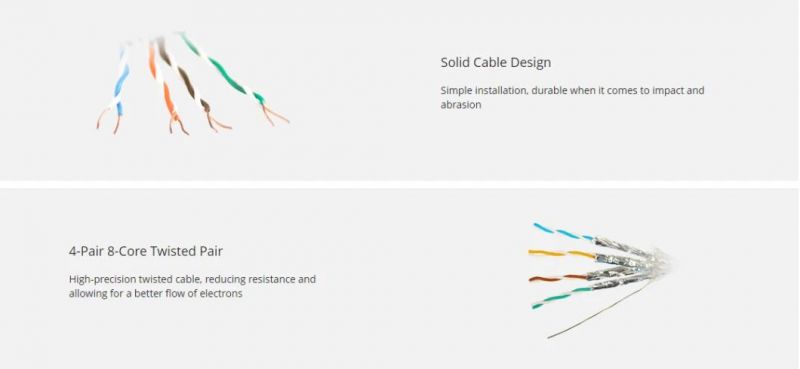

• Category 7 Indoor / Outdoor Solid Cable
• Shielded Twisted Pair (S/FTP) Cable

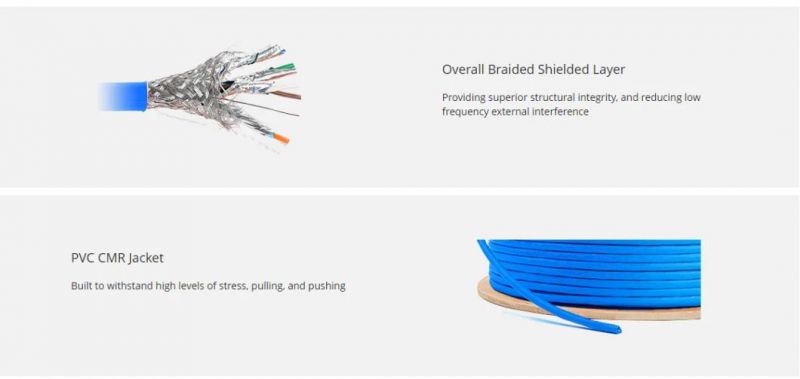

• Overall Tin-Copper Braiding
• High-Performance Data Communications Cable
• Tested 10G-850 MHz High Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
• Designed for Indoor / Outdoor Installations
• 4-Pair - Easily Identified Color-Striped Pairs
• 23AWG Solid Bare Copper Conductors
• Excellent Attenuation and Crosstalk Characteristics
• UV Outdoor Rated Cable
• LSZH Jacket

Packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

Company Profile

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

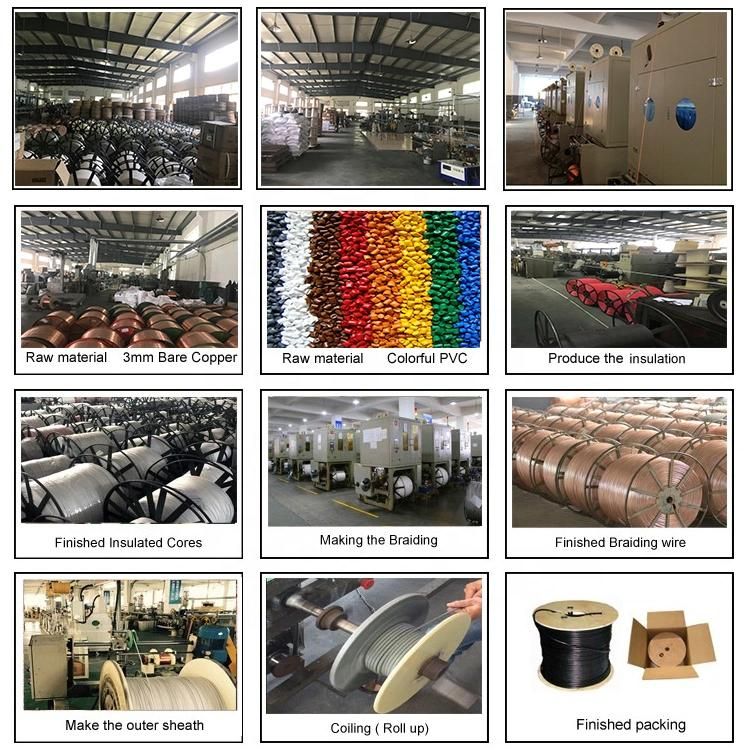

process of production:
FAQ

Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.

Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.

By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.

Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.

Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
