Axka, Al Conductor, UV-XLPE Insulation, ABC Overhead Cable, 0.6/1kv, HD 626.6D
Jiangsu Boan Cable Co., Ltd.- Application:Overhead, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:DC Cable
- Insulation Material:XLPE
- Material Shape:Round Wire
- Wire Core Material:Bare Copper Wire
Base Info
- Model NO.:AXKA
- Certification:ISO, CCC, CE, RoHS
- Model:Axka
- Brand:Boan
- Conductor Material:Aluminum
- Certificate:ISO9001,ISO14001 ,Ohsas18001,CCC
- Type:Low Voltage
- Standard:HD 626.6D
- Rated Voltage:0.6,1kv
- Test Voltage:4 Kv,50 Hz
- Conductor:Stranded Copper
- Code Name:Axka
- Transport Package:Fumigated Steel-Wooden Drum,Wooden Drum
- Trademark:Boan
- Origin:China Mainland
- HS Code:8544492100
- Production Capacity:22000 Kilometres Per Year
Description
Basic Info.
Model NO. AXKA Certification ISO, CCC, CE, RoHS Model Axka Brand Boan Conductor Material Aluminum Certificate ISO9001/ISO14001 /Ohsas18001/CCC Type Low Voltage Standard HD 626.6D Rated Voltage 0.6/1kv Test Voltage 4 Kv/50 Hz Conductor Stranded Copper Code Name Axka Transport Package Fumigated Steel-Wooden Drum/Wooden Drum Trademark Boan Origin China Mainland HS Code 8544492100 Production Capacity 22000 Kilometres Per YearProduct Description
Product DescriptionCan be used for fi xed installation as overhead power lines up to 1,000 V inclusive. Not suitable for direct burial.
Technical DataRated voltage: 0.6/1KV
Test voltage:4KV/50HZ
Temperature range:
laying temperature: min-20°C
operating temperature: -40°C up to +90°C
conductor temperature: max.+90°C
short-circuit temperature: max. +250°C/5s
Bending radius(min.):
18 x ∅ of cable
Core identification:
Raised longitudinal ribs on the surface of the cores, the surface of one core is smooth with type designation.

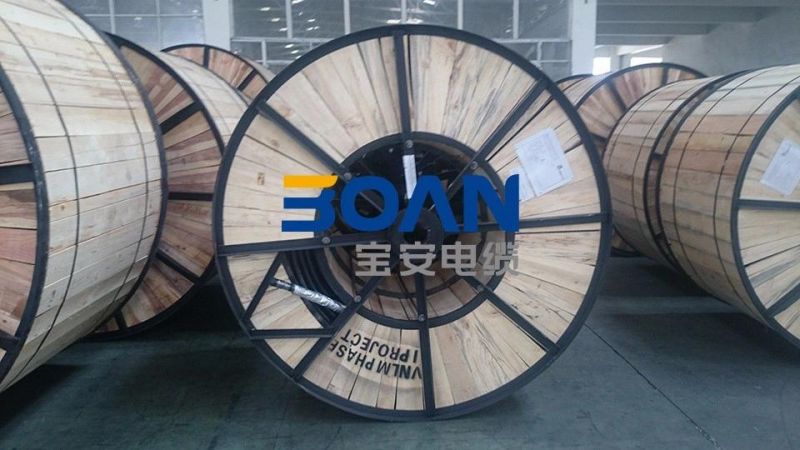

Packaging & ShippingFumigated Steel-Wooden Drum/Wooden Drum
Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.
