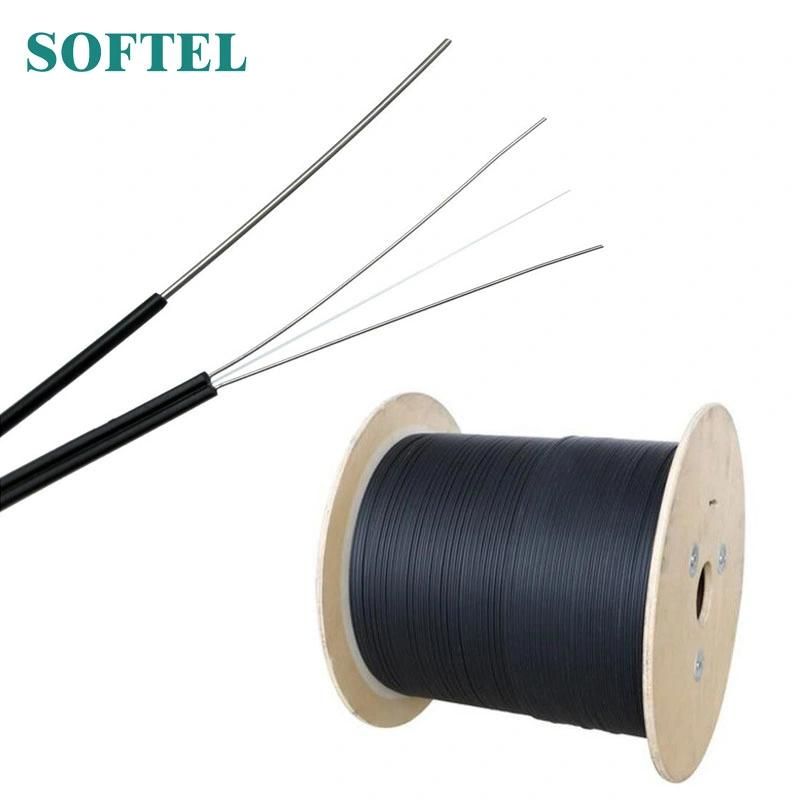

1-8 Core Indoor Optic Drop Cable with FRP Stengthen Member
Hangzhou Softel Optic Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Drop Cable
- Material Shape：Flat Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：Drop cable
- Core：Single Core
- Certification：RoHS
- Brand：OEM
- Sheath Material：PVC
- Item：FTTH Drop Cable
- Application in：Indoor Use
- Cores：2,4,6,8 as Per Your Design
- Cable Type：Gjyxfch-8b6.A2
- Fiber Color：Blue, Orange, Green, Brown, Gray etc
- Fiber Type：9,125 (G657A2)
- Operation Temperature：-20~+60 Degree
- Lead Time：Within 30 Days
- Warranty：12 Months
- Transport Package：Standard Carton
- Specification：ROHS
- Trademark：SOFTEL OEM
- Origin：Zhejiang, China
- Production Capacity：10000 Km,Month
Description
Basic Info.
Model NO. Drop cable Core Single Core Certification RoHS Brand OEM Sheath Material PVC Item FTTH Drop Cable Application in Indoor Use Cores 2,4,6,8 as Per Your Design Cable Type Gjyxfch-8b6.A2 Fiber Color Blue, Orange, Green, Brown, Gray etc Fiber Type 9/125 (G657A2) Operation Temperature -20~+60 Degree Lead Time Within 30 Days Warranty 12 Months Transport Package Standard Carton Specification ROHS Trademark SOFTEL OEM Origin Zhejiang, China Production Capacity 10000 Km/MonthProduct Description
FRP indoor optic drop cableSummary

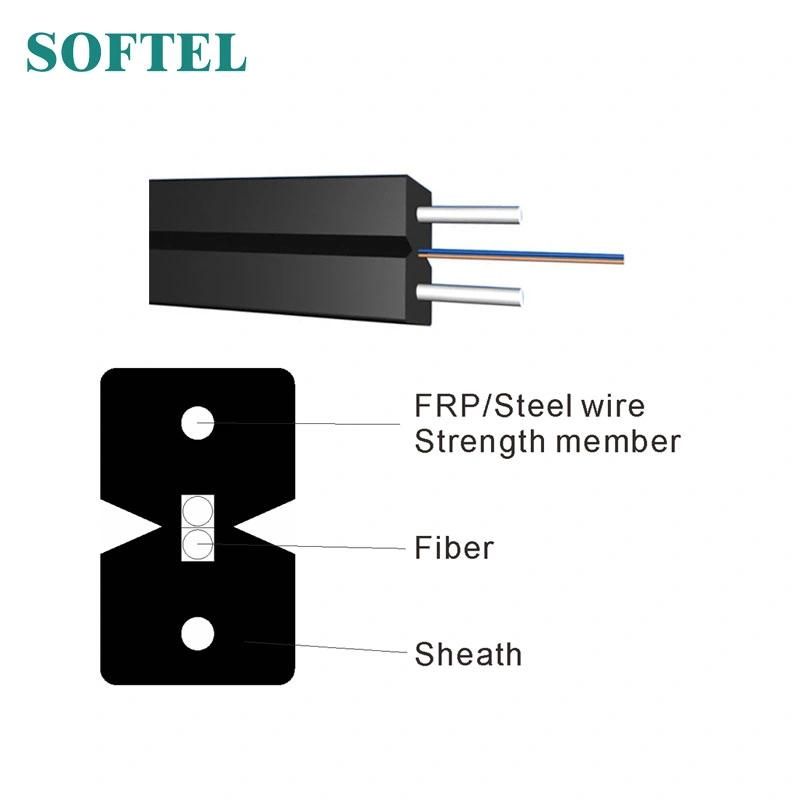

The optical fiber unit is positioned in the centre, two parallel fiber Reinforced plastics (FRP) are placed at the two sides, A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensures good performance of tensile strength.
3. Simple structure, light weight and high practicability.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.
Parameters
| Item | Technology parameter |
| Cable type | GJYFJCH-2B6 |
| Product specification | 3.5×6.5 |
| Fiber type | 9/125 (G.657A2) |
| Tight buffer material | LSZH |
| Tight buffer color | Blue, orange |
| Tight buffer diameter mm | 0.6±0.05 |
| Strength member | Aramid yarn |
| Suspension unit type | 1×7(single steel wire 0.4mm) |
| Message wire thickness mm | ≥0.6 |
| Outer sheath material | LSZH |
| Outer sheath color | Black |
| Outer sheath thickness mm | 1.0±0.2 |
| Cable weight Kg/km | Approx. 28.0 |
| Min. bending radius mm | With suspension unit: 130 Without suspension unit: 15 |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile N | 600 |
| Crush resistance N/100mm | 1000 |
| Operation temperature ºC | -10~+70 |
