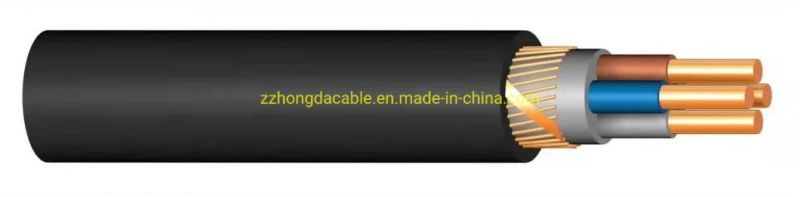

Halogen Free Polyolefin Copper Power Cable Xcmk-Hf / Fxqj Kabel 4X35/16
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：Losh
- Material Shape：Round Wire
Base Info
- Model NO.：XCMK-HF
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Brand：Hongda
- Voltage Rating：600,1000V
- Transport Package：Steel & Wooden Drum or Customer Requirement
- Specification：25mm2 to 400mm2
- Trademark：Hongda, accept OEM
- Origin：China
- HS Code：8544492100
- Production Capacity：10km,Days
Description
Up to 10 mm² Class 2 Circular, stranded copper
Above 35mm²: Class 2 Sector shaped, stranded copper
2 core: Blue Brown
3 core: Brown Black Grey
4 core: Blue Brown Black Grey
Sheath Colour Black
XCMK-HF CABLE DIMENSIONS:
Some of our most popular XCMK-HF cable sizes variations:
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km | |
| 3 | 3x1.5/1.5 | 14 | 210 |
| 3 | 3x2.5/2.5 | 15 | 260 |
| 3 | 3x6/6 | 17 | 450 |
| 3 | 3x10/10 | 21 | 670 |
| 3 | 3x16/16 | 24 | 970 |
| 3 | 3x25/16 | 26 | 1330 |
| 3 | 3x35/16 | 28 | 1360 |
| 3 | 3x50/25 | 29 | 1860 |
| 3 | 3x70/35 | 33 | 2560 |
| 3 | 3x95/50 | 37 | 3440 |
| 3 | 3x120/70 | 39 | 4350 |
| 3 | 3x150/70 | 43 | 5150 |
| 3 | 3x185/95 | 48 | 6600 |
| 3 | 3x240/120 | 54 | 8450 |
| 4 | 4x1.5/1.5 | 14 | 240 |
| 4 | 4x2.5/2.5 | 15 | 300 |
| 4 | 4x6/6 | 19 | 530 |
| 4 | 4x10/10 | 23 | 810 |
| 4 | 4x16/16 | 26 | 1160 |
| 4 | 4x25/16 | 28 | 1600 |
| 4 | 4x35/16 | 30 | 1710 |
| 4 | 4x50/25 | 31 | 2340 |
| 4 | 4x70/35 | 35 | 3230 |
| 4 | 4x95/50 | 39 | 4360 |
| 4 | 4x120/70 | 43 | 5510 |
| 4 | 4x150/70 | 47 | 6650 |
| 4 | 4x185/95 | 54 | 8460 |
| 4 | 4x240/120 | 60 | 10960 |
For full technical specifications and other core sizes and cross-sectional area sizes please refer to the datasheets or speak to our technical team for more advice.
Other standard and specification can be produce depending on customer require.
PACKAGE AND SHIPPING:

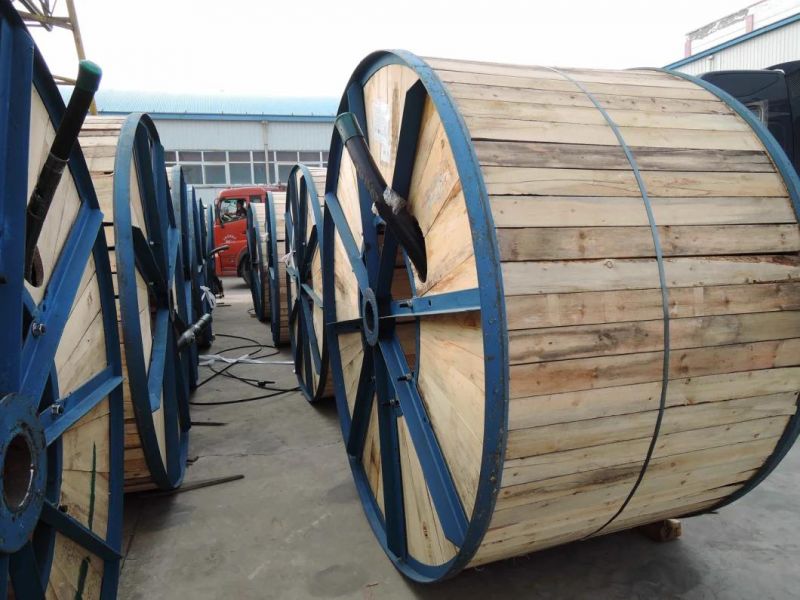

Steel wooden drum (fumigation)
Cable length in each drum: 200m/300m or as per actual cable length requirements.
Drum size: As per cable length and container size
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
We are looking forward to your inquiry and nice cooperation.
