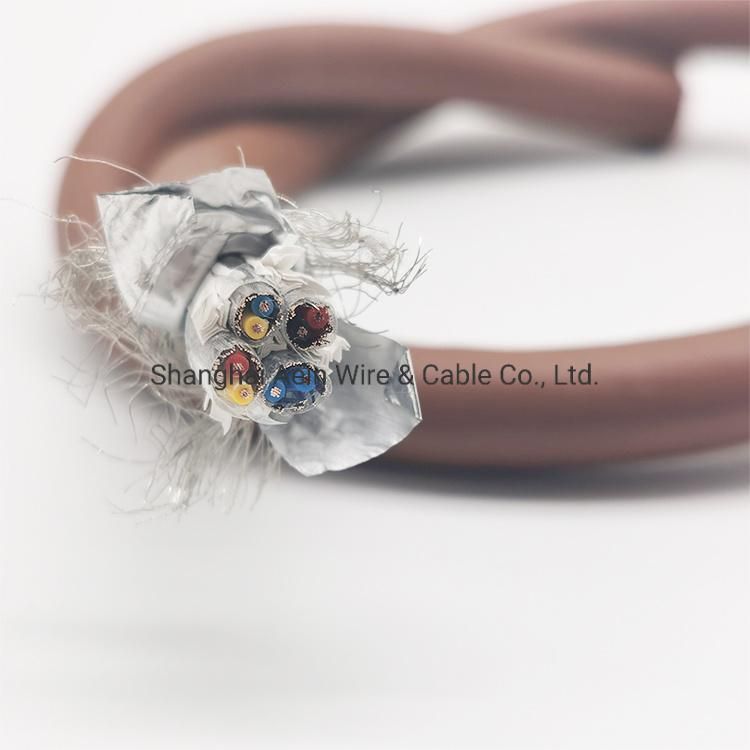

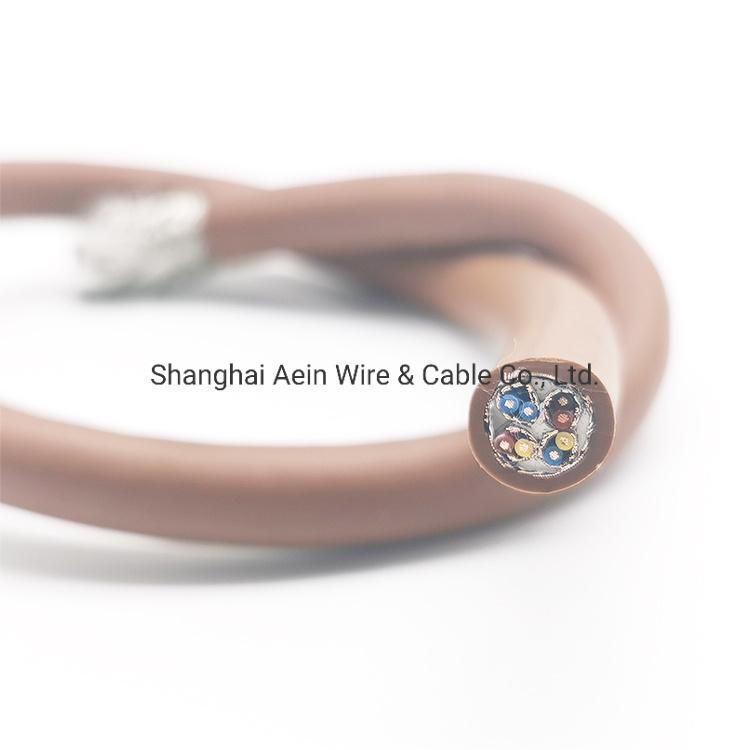

Fmgch Rubber Cable with Screen 4X2X0.75mmq CE Certified

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Telecomunication
  • Conductor Material：Copper
  • Sheath Material：Rubber
  • Insulation Material：Epr

Base Info

  • Model NO.：FMGCH Cable
  • Material Shape：Round Wire
  • Range of Application：Telecomunication
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFMGCH CableConductorClass 5 flexible copperInsulationEPRScreenPlain copper wire braidOuter SheathRubberNominal VoltageU0/U: 150/250VTest voltage2000 VTemperature RangeMax Conductor temperature in service:85ºC
Short-circuit max.conductor temperature:250ºC
Minimum installation temperature:-10ºC
Minimum operating temperature:-35ºCColorOptionalCertificationCEApplication

The cable is used above and below deck of the ship as control and communication cables in radio, radar and information systems Halogen-free cables with an enhanced characteristic in case of fire are used for application where harm to human life and damage to property must be prevented in the event of a fire.
