• Model NO.：GJYXFCH,GJXH
• Optic Cable Application：Aerial,Self-Supporting
• ADSS Cable Use：Pole to Pole
• ADSS Optical Fiber Cable Outer Sheath：PE or at
• Fiber Type：Single Mode
• Number of Conductors：6 >=10
• Central Strength Member：FRP
• Operating Temperature：-40 ~ 60 C
• ADSS Optical Fiber Cable Attenuation：@3110nm-@1550nm
• Transport Package：Standard Export Package
• Trademark：Softel
• Origin：Hangzhou, Zhejiang, China
• HS Code：85176229

Item

Technology parameter

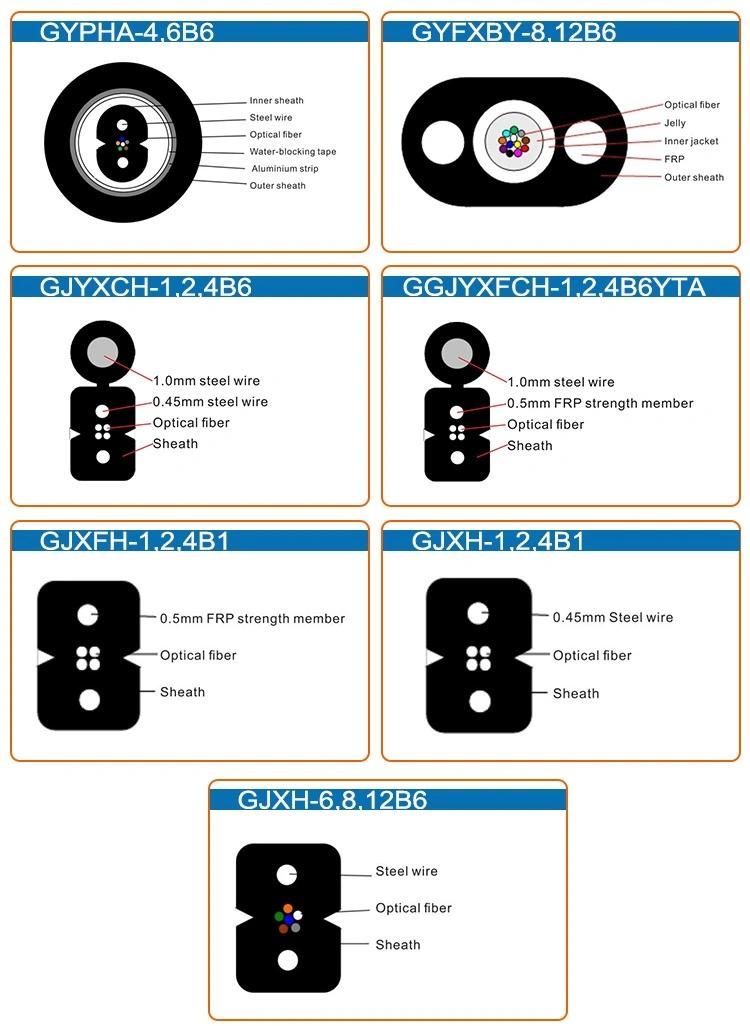

Cable type

GJYXCH-1B6

GJYXCH-2B6

GJYXCH-4B6

Cable specification

5.2×2.0

Fiber type

9/125 (G.657A2)

Fiber counts

1

2

4

Fiber color

Red

Blue, orange

Blue, orange, green, brown

Sheath color

Black

Sheath material

LSZH

Cable dimension   mm

5.2(±0.2)*2.0(±0.2)

Cable weight   Kg/km

Approx. 19.5

Min. bending radius mm

120

Min. bending radius mm

(Excluding messenger wire)

10 (Static)

25 (Dynamic)

Attenuation   dB/km

≤ 0.4 at 1310nm, ≤0.3 at 1550nm

Short term tensile   N

600

Long term tensile   N

300

Short term crush N/100mm

2200

Long term crush N/100mm

1100

Operation temperature   ºC

-20~+60
