PVC Elevator Cable H05vvf IEC 53 Copper Wire PVC Insulated & Sheathed Flexible Cables
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground, Indoor Fixed Installations in Dry Locations
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：60227 IEC 53
- Material Shape：Round Wire
- Certification：ISO9001, CE, CCC, RoHS, VDE
- Brand：Feiya
- Rate Voltage：300,500V
- Standard：IEC 60227-5
- Temperature Range：+5 Degree Till +70 Degree
- OEM：Yes
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper,pvc
- Trademark：Feiya
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description

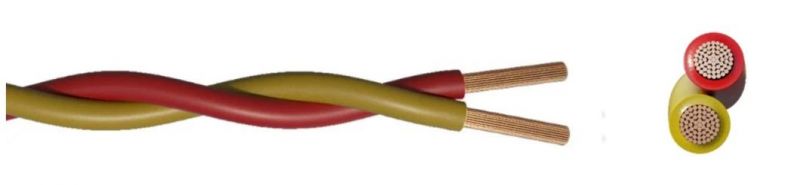

RVS PVC insulated twisted -pair flexible wire of 300/300V| Nominal section of conductor mm2 | 20ºC (≤)Ω/km At 20ºC,conductor resistance (≤)Ω/km | 70ºC≥MΩ.km At 70ºC ,the Min insulating resis-tance ≥(MΩ.km) | mm Max OD(MM) | kg/km Weight referred kg/km |
| 2×0.5 | 39.0 | 0.016 | 6.0 | 23 |
| 2×0.75 | 26.0 | 0.014 | 6.2 | 30 |
| 2×1.0 | 19.5 | 0.011 | 6.6 | 36 |
| 2×1.5 | 13.3 | 0.010 | 7.2 | 49 |
| 2×2.5 | 7.98 | 0.009 | 8.2 | 76 |
| 2×4 | 4.95 | 0.007 | 9.5 | 114 |
| 2×6 | 3.30 | 0.006 | 11.6 | 174 |
