Electrical and Wires BV Cable

Luoyang Sanwu Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：Max-Dayuan-1
  • Material Shape：Round Wire
  • Range of Application：Underground, Household, Instrument and Lighting E
  • Certification：ISO9001, CE, CCC
  • Brand：Dayuan
  • Name：Electrical and Wires BV Cable
  • Transport Package：Use The Drum, We Can Make as Customer Requirement
  • Specification：we can make as customer requirement
  • Trademark：DAYUAN
  • Origin：China
  • HS Code：8544491100
  • Production Capacity：10000 Meters,Day

Description

ModelRated VoltageNormal area (mm) Overall  diameter (mm)Weight (KG)Conductor Resistance rate Not more than at 20 centigrade (Ω/km)Wire core structure
Cores/Diameters (mm)BV300/500V0.52.48.5 36.0 1/0.80BV300/500V0.75(A)2.611.1 24.5 1/0.97BV300/500V 0.75(B)2.812.0 24.5 7/0.37BV300/500V1.0(A)2.813.9 18.1 1/1.13BV300/500V1.0(B)3.015.0 18.1 7/0.43BV450/750V 1.5(A)3.320.3 12.1 1/1.38BV450/750V 1.5(B)3.521.6 12.1 7/0.52BV450/750V 2.5(A)3.931.6 7.41 1/1.78BV450/750V 2.5(B)4.234.8 7.41 7/0.68BV450/750V 4(A)4.447.1 4.61 1/2.76BV450/750V 4(B)4.850.3 4.61 7/1.04BV450/750V 6(A)4.967.0 3.08 7/1.35BV450/750V 6(B)5.471.2 3.08 7/1.70BV450/750V 107.0119 1.83 7/2.14BV450/750V 168.0179 1.15 7/2.52BV450/750V 2510281 0.727 19/7.18BV450/750V 3511.5 381 0.524 19/2.14BVR450/750V 2.54.2 34.7 7.41 19/0.41BVR450/750V  44.8 51.4 4.61 19/0.52BVR450/750V 65.6 73.6 3.08 19/0.64BVR450/750V  107.6 129 1.83 49/0.52BVR450/750V  168.8 186 1.15 49/0.64BVR450/750V  2511.0 306 0.727 98/0.58BVR450/750V  3512.5 403 0.524 133/0.8BVR450/750V  5014.5 553 0.387 133/0.68BVR450/750V  7016.5 764 0.268 189/0.68BVR450/750V
Company Information:

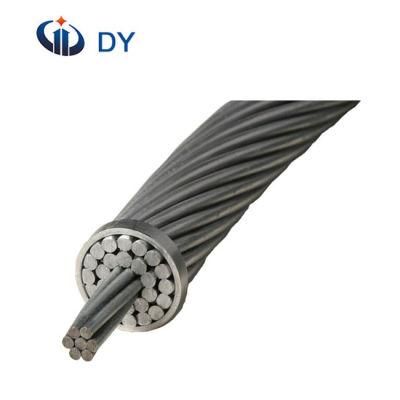

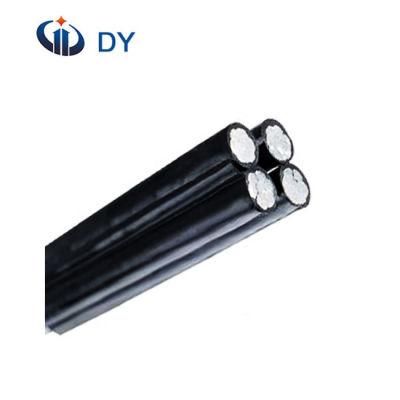

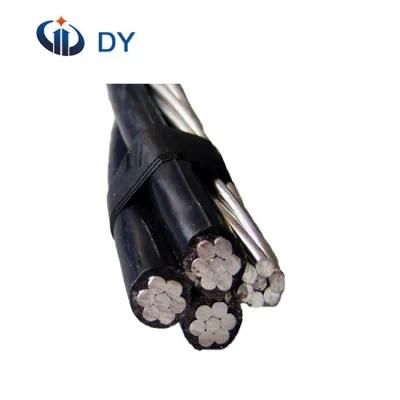

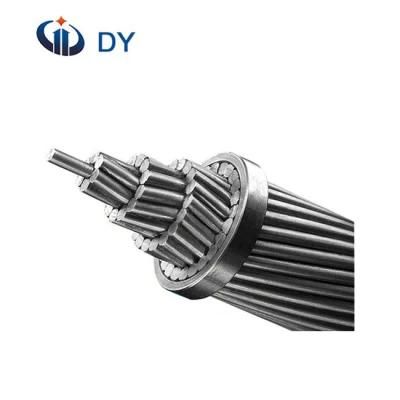

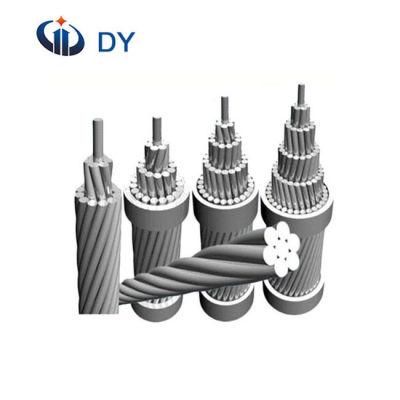

Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.
Electrical and Wires BV Cable
