• Model NO.：KVVP3
• Material Shape：Round Wire
• Range of Application：in Doors, in The Cable Channels, Pipelines
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fengda
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.5-5, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. KVVP3 Material Shape Round Wire Range of Application in Doors, in The Cable Channels, Pipelines Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fengda Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Descriptions:

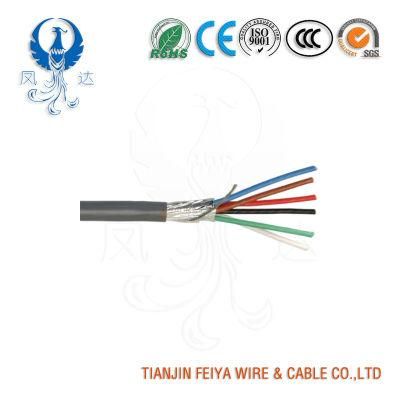

Conductor: Flexible Copper Conductor

Insualtion: PVC

Screen: Al-foil Screen with Tinned Drain Wire

Sheath: PVC

Operating characteristics:

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:70°C

Upon short circuit (Max. Duration time 5s) the Max.

Ambient temperature of installation not less than 0°C.

Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Standard:

DC resistance of conductor confirms to regulation of GB/T 3956-2008.
Insulation resistance in accordance with the provision of GB/T 9330-2008.
Other standards such as BS,DIN and ICEA upon request

Certificates:

CE, CCC, CSA and more others at request



Why Choose Screen Control Cable:

Reduce the impact of external current transmission, Keep safe and Correctly..
