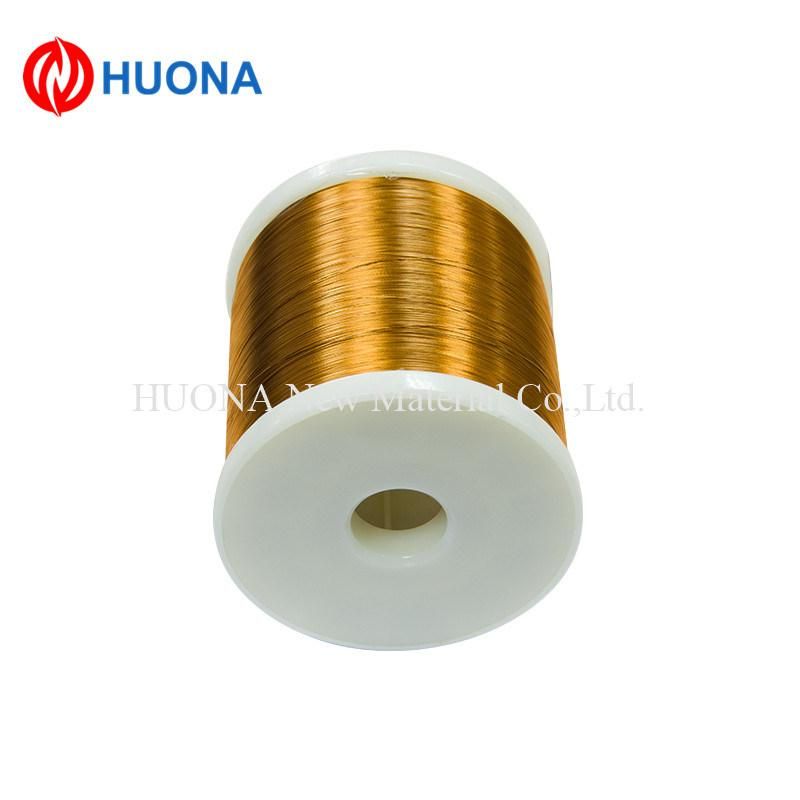

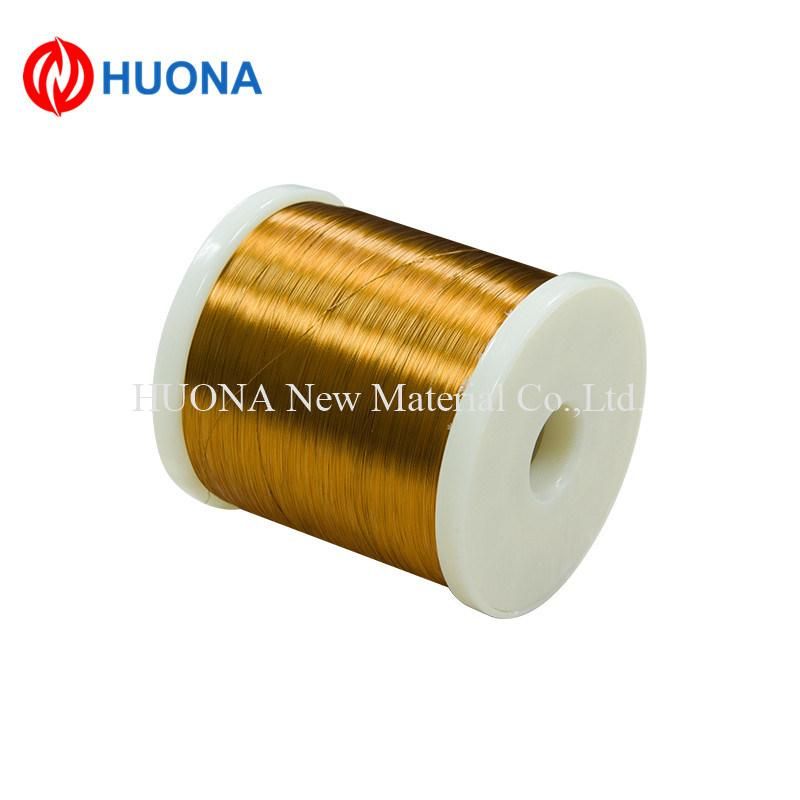

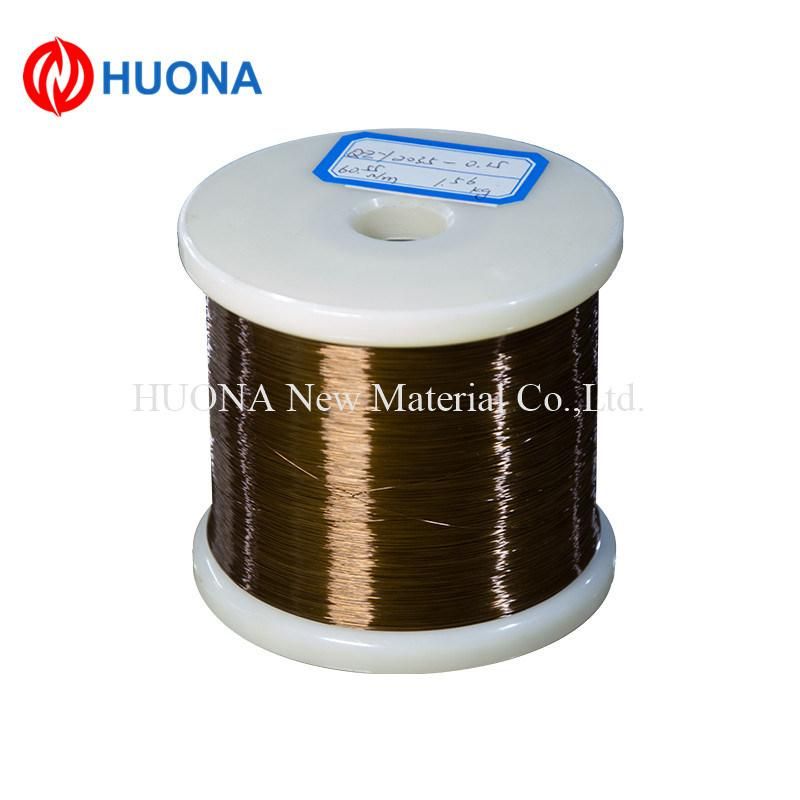

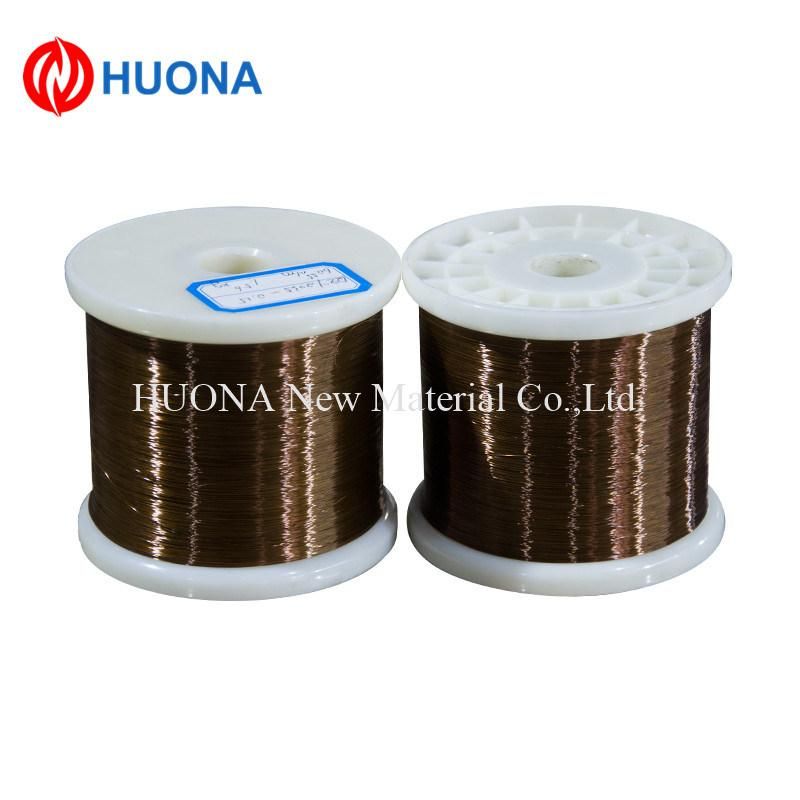

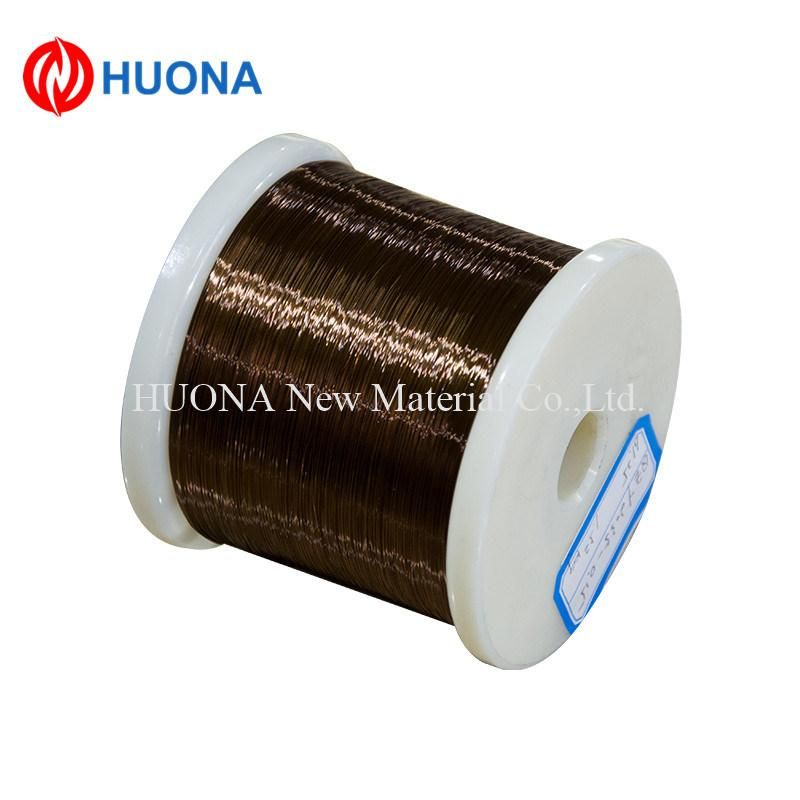

Red Colour Enamelled Constantan Wire Used for Motor
Huona (Shanghai) New Material Co., Ltd.- Insulation Level：C, H, B, E, A
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Application：Transformer, Instrument, Electrical Equipment, Motor
- Shape：Round Wire
- Conductor Material：Alloy Wire
Base Info
- Model NO.：Enamelled Wire
- Serves：Samll Order Accepted
- Size：0.05mm
- Standard：GB,ASTM,JIS,Bis,DIN
- Surface：Bright
- OEM：Yes
- Sample Less Than 1kg：Free
- Stock：Seyn
- Resistivity：0.49+-5%
- Density：8.9(g,cm3)
- Elongation：>25%
- Precision Resistor：Round Wire,Flat Wire
- Package：Plastic Film Cover The Wire in Spool

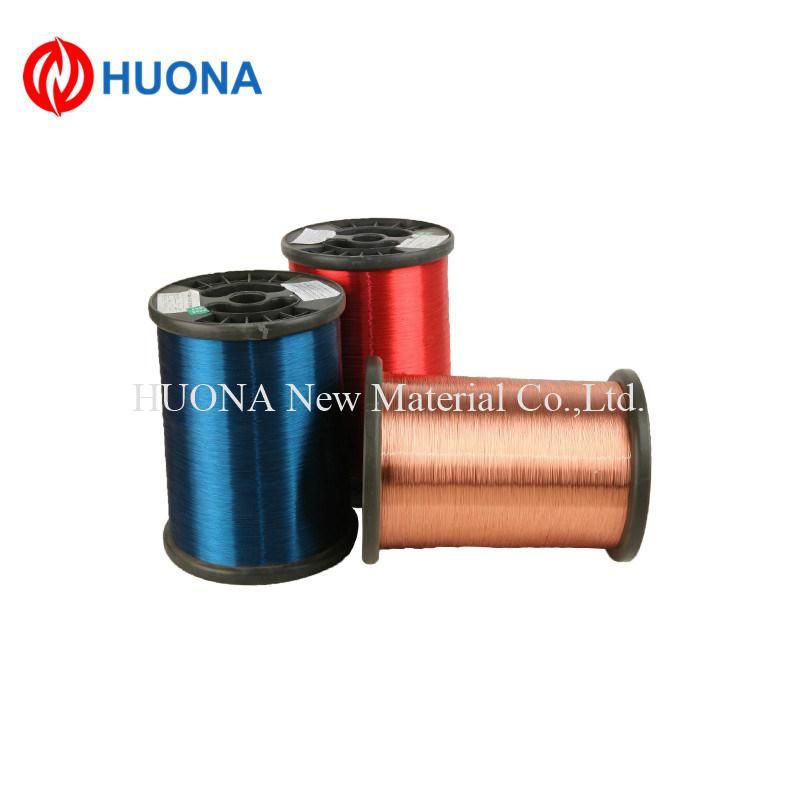

- Colour Wire：Black,Red,Nature,Blue,Green,Yellow
- Transport Package：Wooden Case or Cartons
- Specification：0.01-10mm
- Trademark：HUONA
- Origin：Shanghai
- HS Code：7505220000
- Production Capacity：1000 Tons, Year
Description
Constantan Wire,CuNi1~CuNi44Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. Fe-Cr-Al Alloy wire Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2, Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin Stainless steel Wire Silver Purity 9.99% golden Wire Any copper alloy and nickel alloy is available Enameled-W Wire D=0.018mm~1.2mm Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm
mmMin thickness of insulation Max OD of Enameled I II I II 0.02 0.005 0.009 0.09 0.036 0.022 0.005 0.019 0.032 0.038 0.025 0.006 0.010 0.036 0.042 0.028 0.006 0.010 0.039 0.045 0.030 0.006 0.011 0.042 0.048 0.032 0.006 0.011 0.044 0.050 0.036 0.007 0.012 0.049 0.055 0.040 0.007 0.012 0.053 0.060 0.045 0.008 0.013 0.059 0.066 0.050 0.008 0.014 0.064 0.072 0.056 0.009 0.015 0.071 0.079 0.060 0.009 0.016 0.076 0.084 0.063 0.009 0.016 0.080 0.088 0.071 0.010 0.017 0.089 0.097 0.080 0.011 0.018 0.099 0.108 0.090 0.012 0.019 0.111 0.120 0.100 0.012 0.021 0.122 0.132 0.112 0.012 0.021 0.135 0.146 0.125 0.014 0.023 0.150 0.161 0.140 0.015 0.024 0.166 0.179 0.150 0.016 0.025 0.177 0.191 0.160 0.017 0.028 0.188 0.202 0.180 0.018 0.028 0.210 0.225 0.200 0.019 0.030 0.231 0.248 0.224 0.021 0.032 0.258 0.275 0.250 0.022 0.034 0.285 0.304 0.280 0.024 0.036 0.318 0.338 0.300 0.025 0.037 0.339 0.360 0.315 0.026 0.038 0.356 0.376 0.355 0.027 0.041 0.398 0.420 0.400 0.028 0.043 0.445 0.468 0.450 0.030 0.048 0.498 0.524 0.500 0.031 0.049 0.551 0.578 0.560 0.034 0.052 0.615 0.643 0.600 0.035 0.054 0.657 0.686 0.630 0.038 0.056 0.689 0.718 0.710 0.038 0.059 0.773 0.805 0.00 0.041 0.062 0.869 0.902 0.900 0.043 0.066 0.973 1.010 1.000 0.048 0.070 1.079 1.117 1.120 0.049 0.074 1.205 1.247 1.250 0.053 0.080 1.343 1.387 1.400 0.058 0.085 1.499 1.548 1.500 0.059 0.090 1.605 1.654
Cr21Al6Nb,Cr27Al7Mo2,
Color of enameled insulation:
Dimension of insulation
mm
