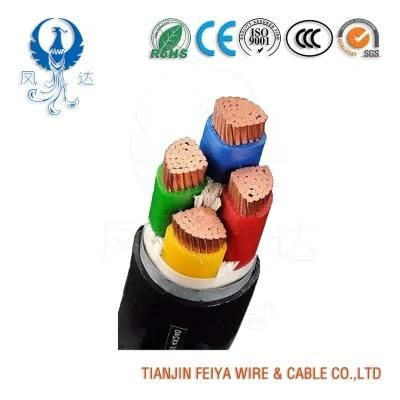

Fire Resistant PVC Insulated PVC Jacket Underground Overhead Electrical Cables Copper Electric Wire 4cores Power Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Static Outdoor Application
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：NYY-O, NYY-J
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC, RoHS, VDE, TUV
- Brand：Fengda
- Colour：Red,Green,Blue,Black,White,as Request
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques
- Specification：1.5 to 300mm2
- Trademark：fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
Construction :
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC (Polyvinyl Chloride)
Sheath
PVC (Polyvinyl Chloride)
Techical Data :
Standard:IEC 60502-1 / VDE 0276 /NT88-22
Fixed installed: -30ºC up to 70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage : 600/1000V
Min inner bending radius:
Single coe:15D
Multi core:12D
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:
Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
NYY-O (without Green/Yellow earth conductor) also available
Technical Parameters:
